Rated Load 250kg 500kg 1t 2t 3t 5t
Model Name 1/4S(H)2 1/2S(H)2 1S(H) 2S(H) 3S(H) 5S(H)
Standard Lift (m) 3 ·6
Hoisting Speed(m/min) 50Hz 10 7.2 4.6 2.3 1.5 0.9
Motor Output(kW) 50Hz 0.45 0.63 0.8 0.8 0.8 0.8
Link Chain Dia. (mm) Ø6.3 Ø6.3 Ø7.1 Ø7.1 Ø7.1 Ø7.1
No. of Falls 1 1 1 2 3 5
Rating 30% ED 25% ED
Control Voltage 24 – 27V
Pushbutton Switch Pushbutton Switch
Power Cord Length 5 m

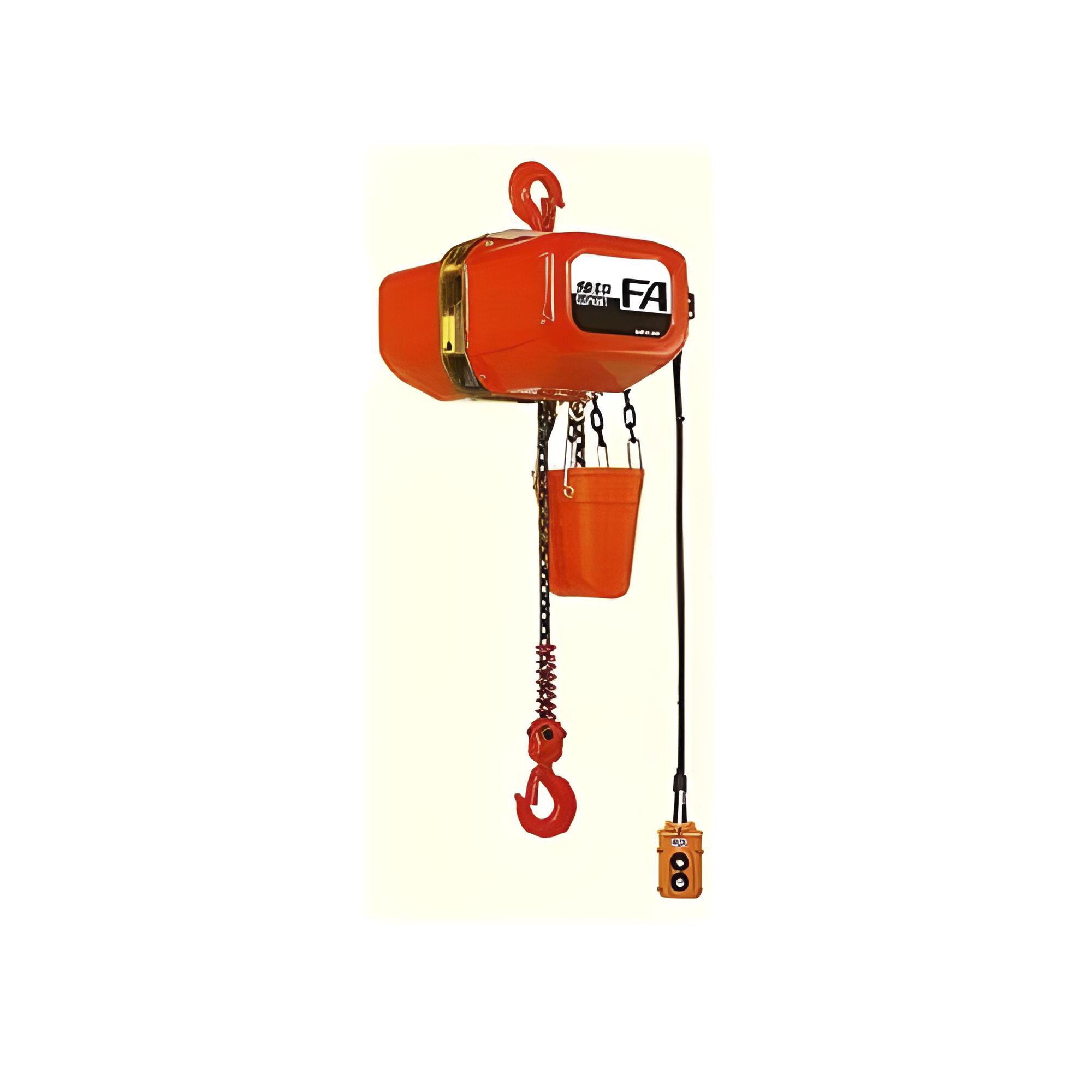

2 Ton Electric Hoist
Disk type Electro-Magnetic brake system for steady operation and long life. Helical Gearing is used where practical to provide quiet operation. Electro-magnetic Contractor with mechanical-interlocking against line short by mechanical shock. Power chain has special (patented) alloy steel chain surface hardened for optimum strength and wear resistance.
For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.
