D20150
,

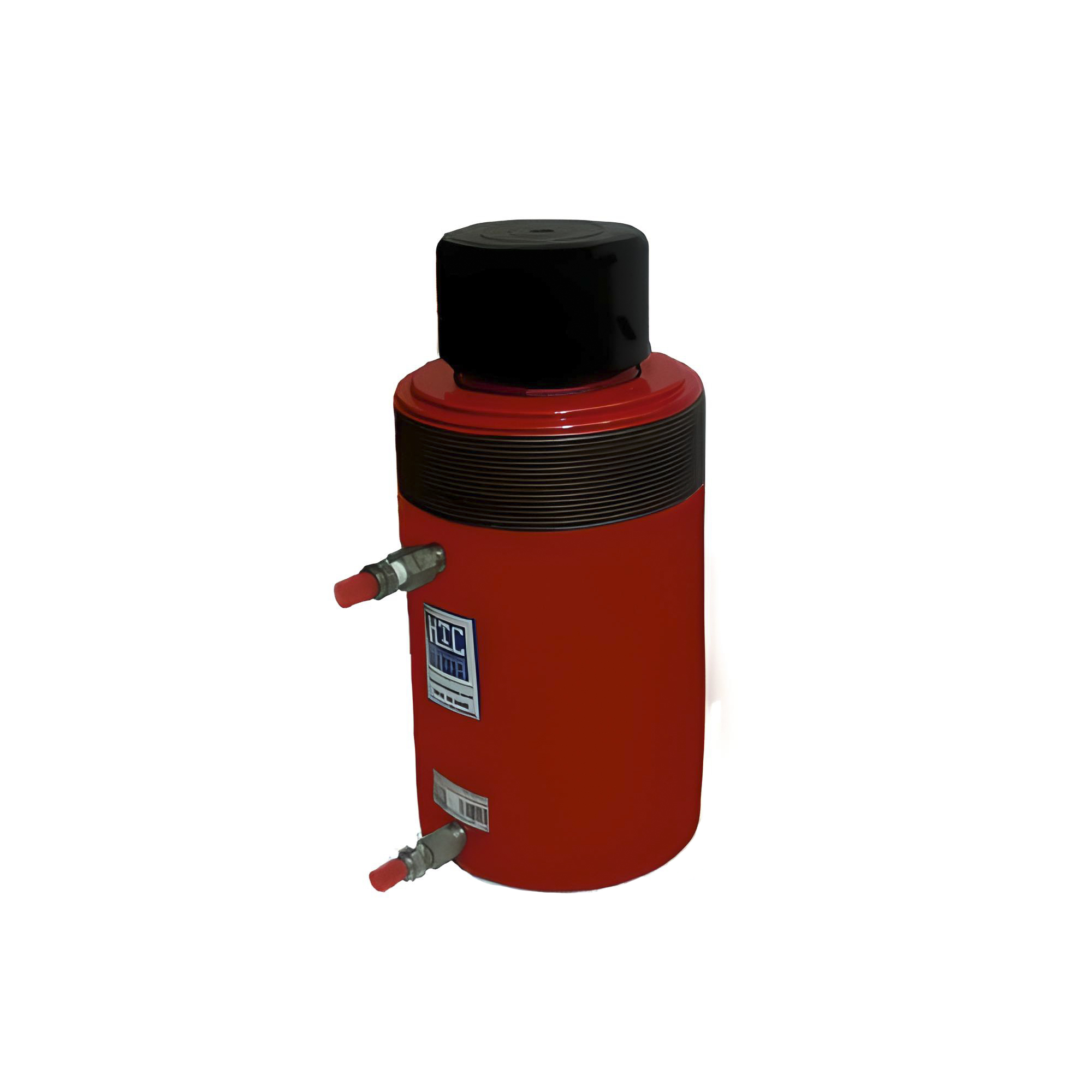

D20150 150mm Stroke x 473mm Closed Height

Double acting cylinders have the advantage of a powered return as well as powered advance, giving the operator more control and the ability to use these cylinders for push applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 4,279cc
Cylinder effective push area 285.26cm²
Cylinder effective pull area 139.09cm²
Closed height 473mm
Outside diameter 241mm
Piston diameter 136.42mm
Weight: 138kg
