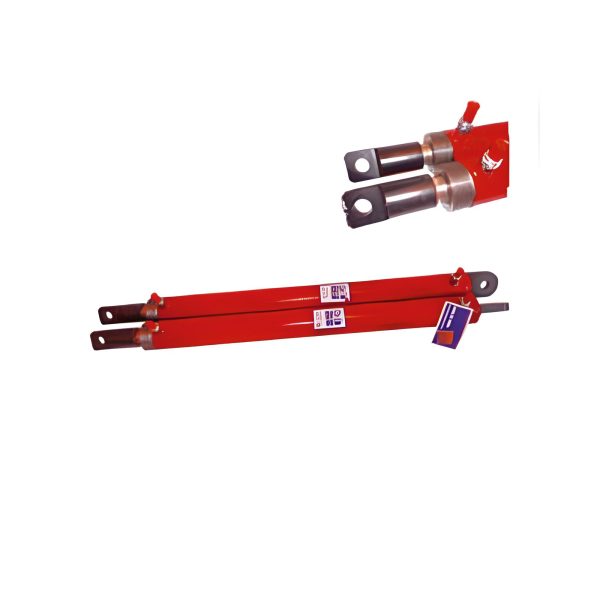

DA2032
,

DA2032 800mm Stroke x 1010mm Closed Height

This ram has 1145mm between the eye centres.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only. Please confirm with our hire representative on hiring.

Nominal Capacity: Push 219kn; Pull 113kn.

Oil Capacity: Push 2,540cc; Pull 1,284cc.

Cylinder effective area: Push 31.75cm2; Pull 16.20cm2.

Collapsed Height: 1,010mm.

Cylinder diameter: 63.6mm.

Piston diameter: 44.5mm.

Weight: 33.5kg.

Distance between hole centres: 1,145mm.
