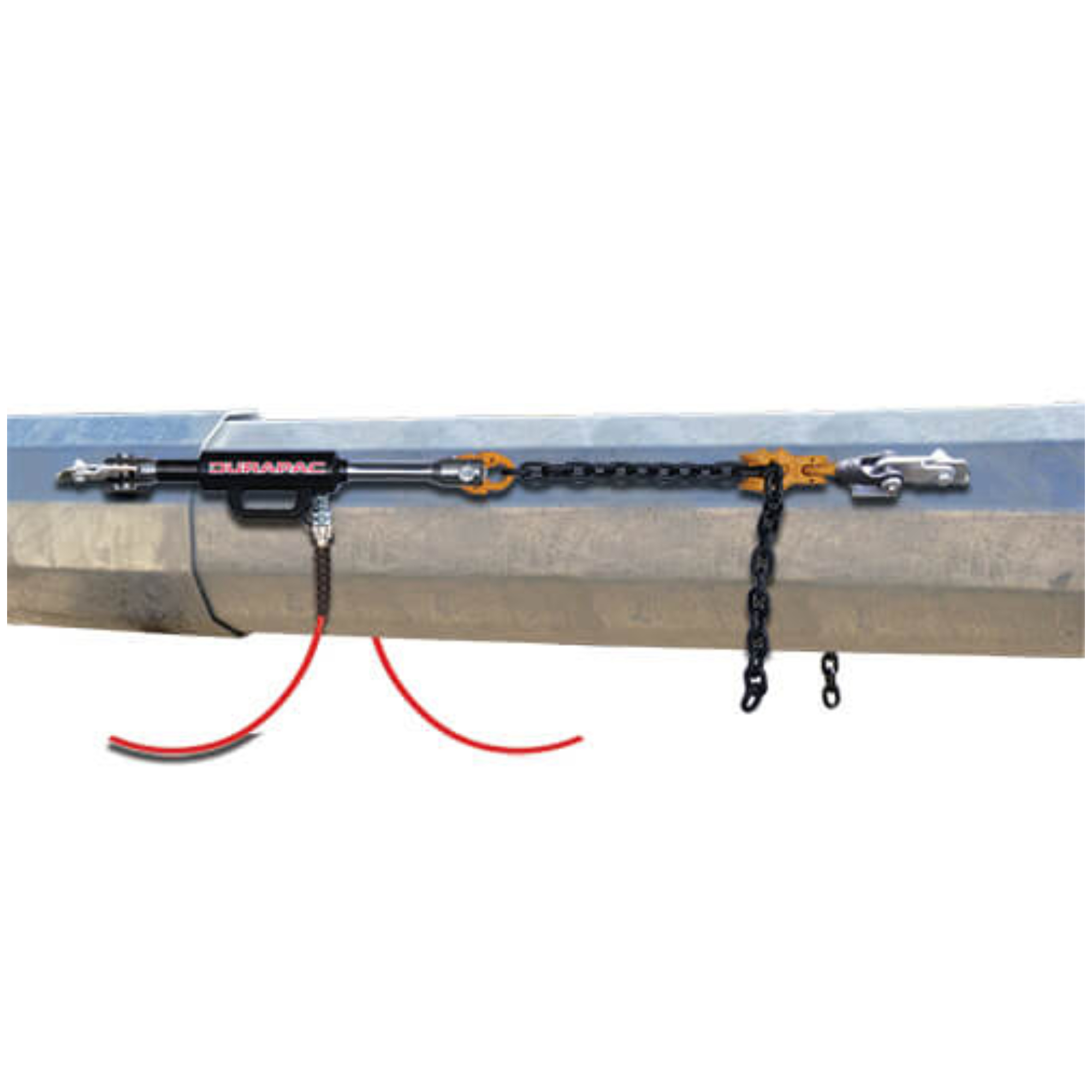

Available in two models: 20 or 40 tonne capacity.
2 x 10 Tonne or 2 x 20 Tonne capacity cylinders:
20 Tonne: 2 x Pulling Cylinders – RAP-106 – Maximum system pulling force “20 tonne”
40 Tonne: 2 x Pulling Cylinders – RAP-206 – Maximum system pulling force “40 tonne”
Due to varying manufacturers and designs of steel poles, the pulling lug connections and clevis fittings are designed on application. All main components remain the same.
System is fitted with 2 x 100mm ø force pressure gauges & needle flow control valves for independent cylinder control, and adjustable force/pressure valve for accurate pressure settings. Product Features
Clevis ends custom made to suit lugs on different manufacturers power poles
Rated alloy grade chain with swivel connectors
Clevis locking & shortening clutch fully rated for the system
Hose lengths made to order with choice of quick connect couplings & dust caps
Systems are fully assembled & pressure tested ready for immediate use
