Presently offered in either 20-tonne or 40-tonne capacities, equipped with 2 x 10 Tonne or 2 x 20 Tonne capacity cylinders respectively:

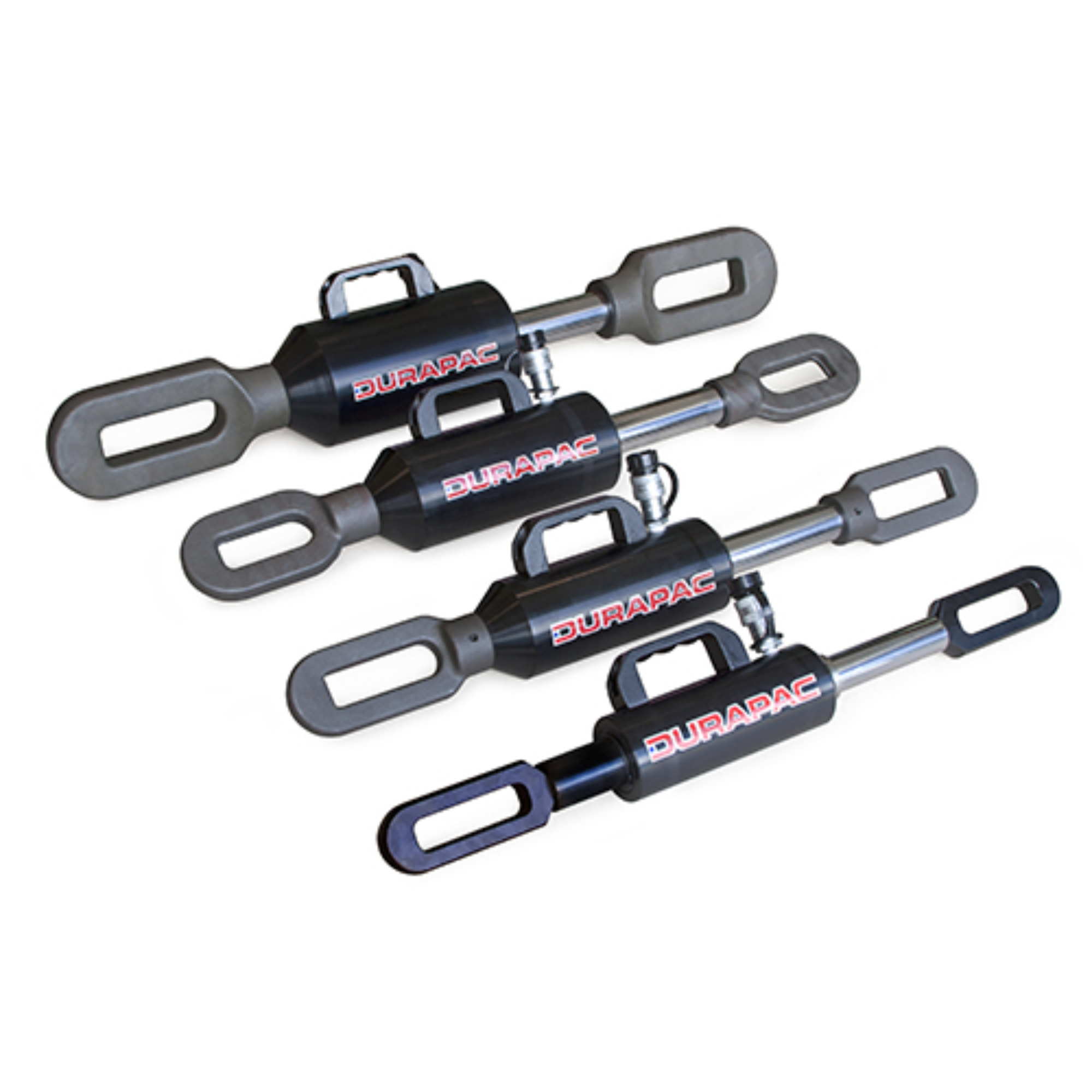

For 20 Tonne capacity: 2 x Pulling Cylinders – Durapac RAP-106 – Providing a maximum system pulling force of “20 tonne”.
For 40 Tonne capacity: 2 x Pulling Cylinders – Durapac RAP-206 – Offering a maximum system pulling force of “40 tonne”.

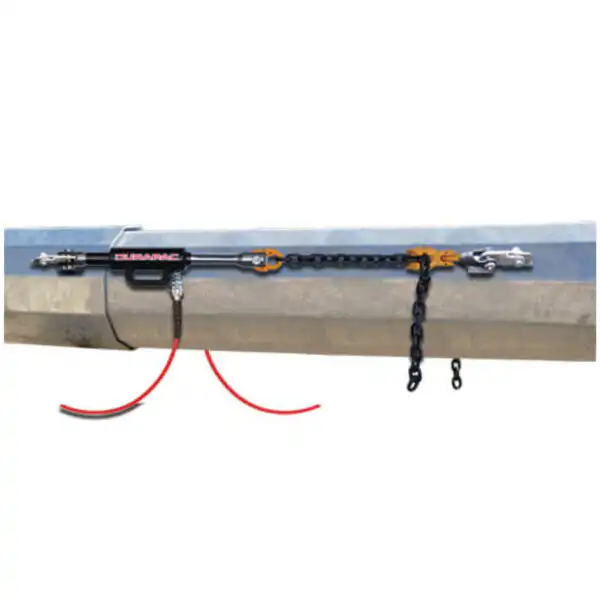

Considering the diverse array of manufacturers and steel pole designs, the pulling lug connections and clevis fittings are customized based on specific applications. However, the following components/options are potential choices:
2 x Durapac Pressure Gauges for adjustable force/pressure valve and precise pressure settings.
1 x Durapac VMN-2 Needle Flow Control Valves for independent cylinder control.
1 x Durapac HPS-0606C: 6-meter high-pressure thermoplastic hose.
Power Unit/Pump Options:

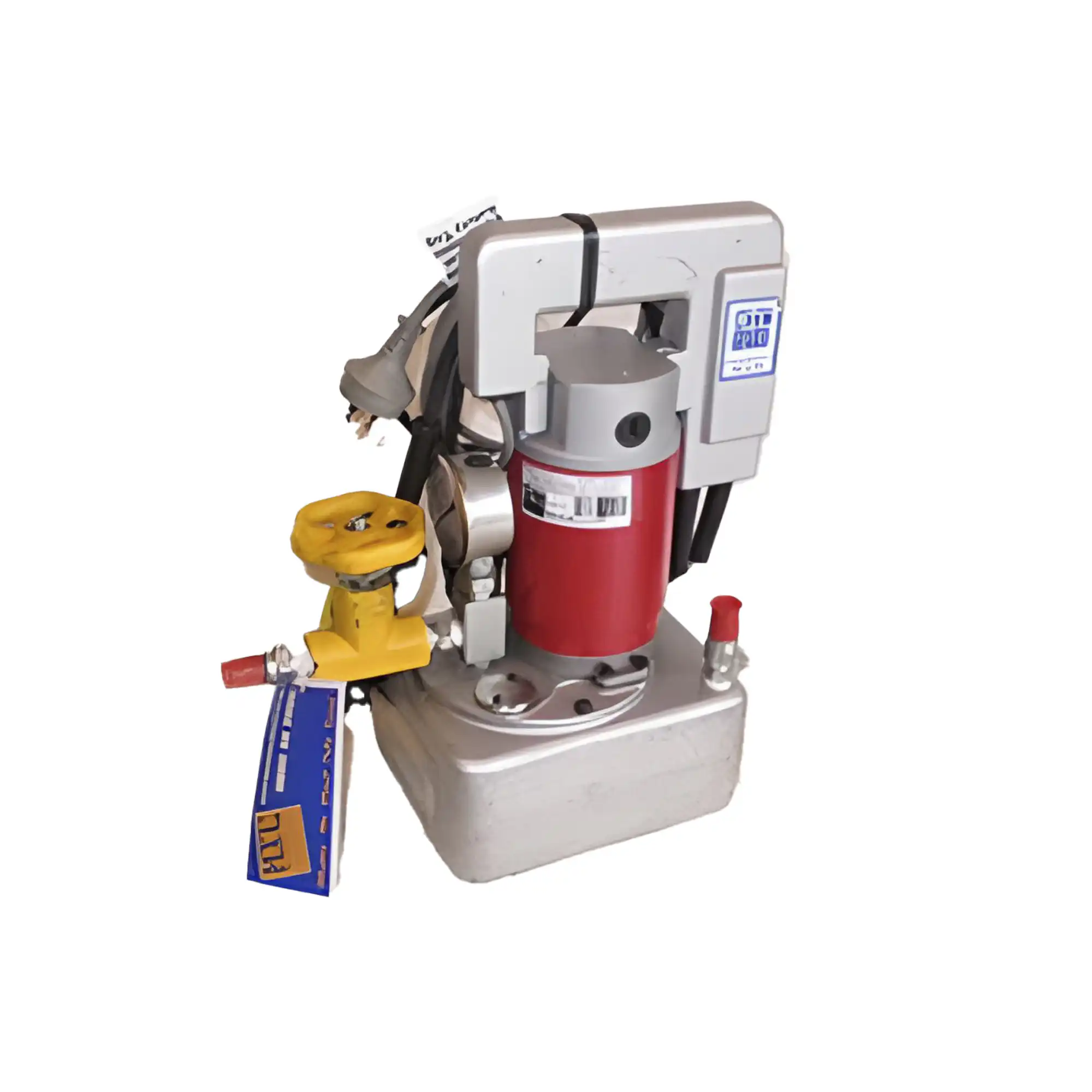

ELECTRIC – Durapac SPES4505NCL Electric Power unit with VRV-1 adjustable pressure valve, specially configured for pole jacking.
BATTERY – Durapac BP114A – Features a 50.4 VDC high-capacity lithium-ion internal battery along with wireless remote control.

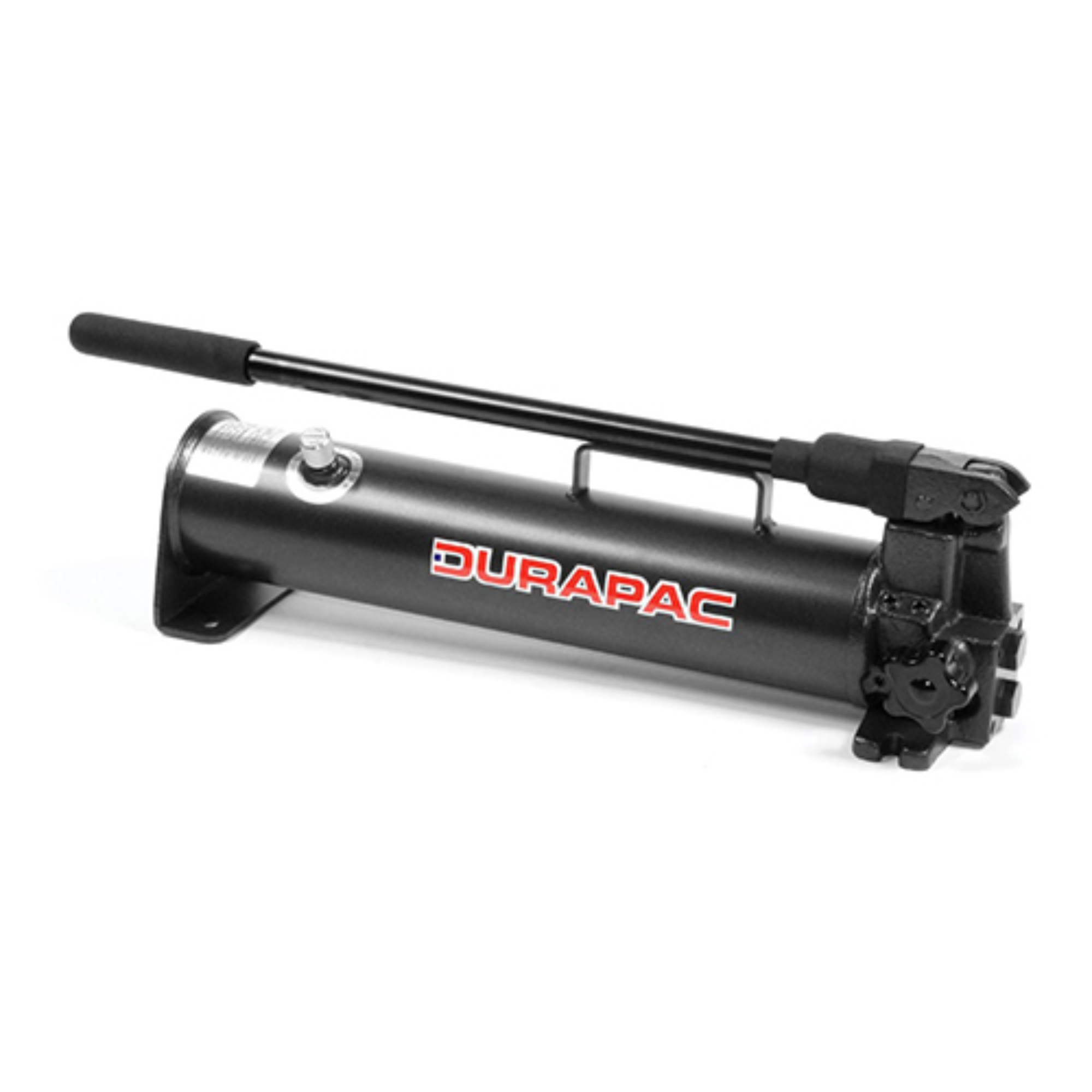

MANUAL – Durapac P-2200 – A 2-speed, steel-bodied, hand-operated pump.
Optional Extras:
Force/pressure charts.
Equipment storage case.
