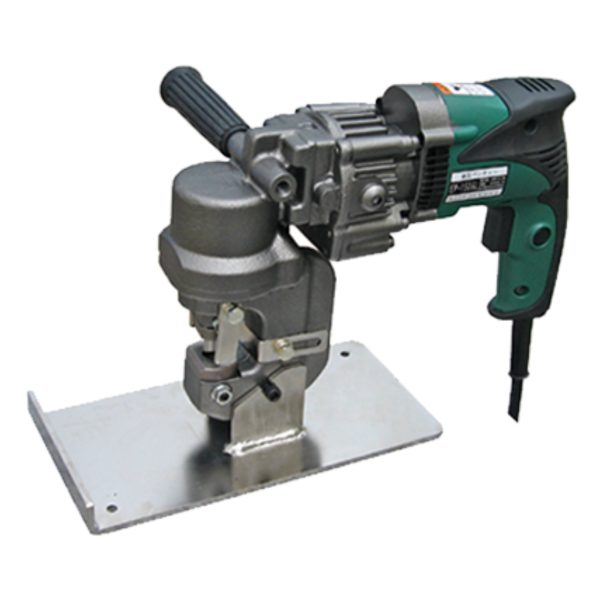

EP-1506L Diamond Electric Hydraulic Punch

An L-shaped puncher that can make holes in narrow spaces up to 30mm from the wall.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Specifications:

  • Maximum round hole diameter: φ15mm
  • Maximum oblong hole diameter: 11×16.5mm
  • Maximum plate thickness: SS400 equivalent: 6mm SUS304 equivalent: 5mm
  • Power supply/current: Single phase 100V 10.5A (1010W)
  • Body dimensions: (L)355×(W)180×(H)80mm
  • Weight: 7.7kg (including 2-core 2.5m cord)

Mechanism:

  • Double insulation
  • Position stopper

Standard Accessories:

  • Tool Set
  • Hydraulic Oil
  • Side Handle
  • Dedicated Resin Case
  • Standard Punch and Die: Ø11 Round Hole Set
