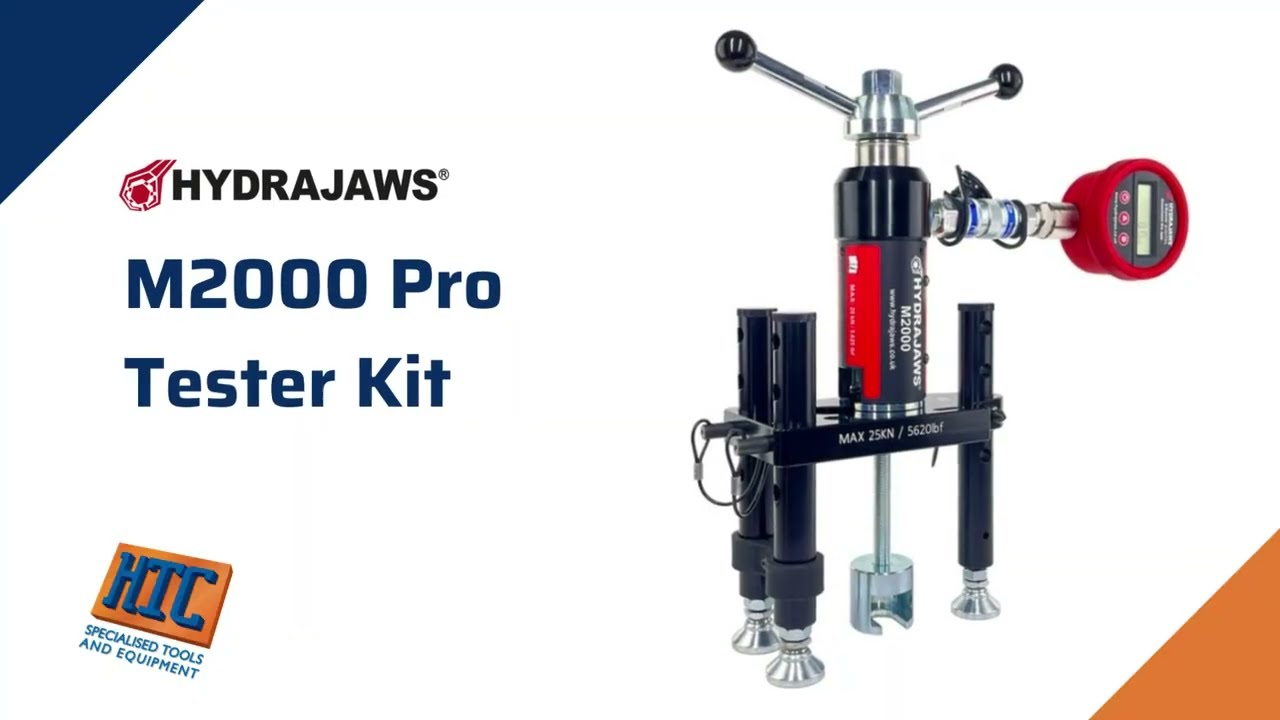

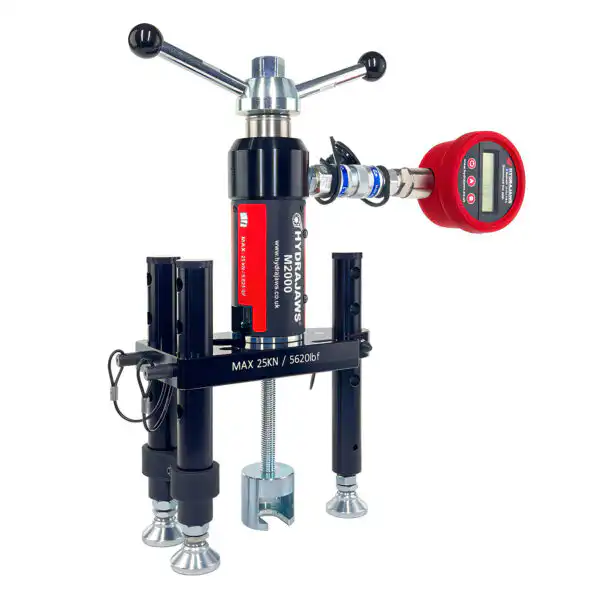

Hydrajaws M2000 Anchor Tester

The Hydrajaws M2000 Anchor Tester for hire, contains a universal set of adaptors enabling a comprehensive range of fixings and safety-critical applications, up to a maximum tensile load of 25kN to be tested.

Trusted by market-leading companies worldwide, the Hydrajaws M2000 Anchor Tester is an essential tool for carrying out testing procedures in line with BS 8539 and BS 7883.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

  • Hydrajaws M2000 Anchor Tester
  • 0-25kN Dual Scale digital gauge compatible with the latest Hydrajaws App (detachable for calibration, reduces carrier return costs).

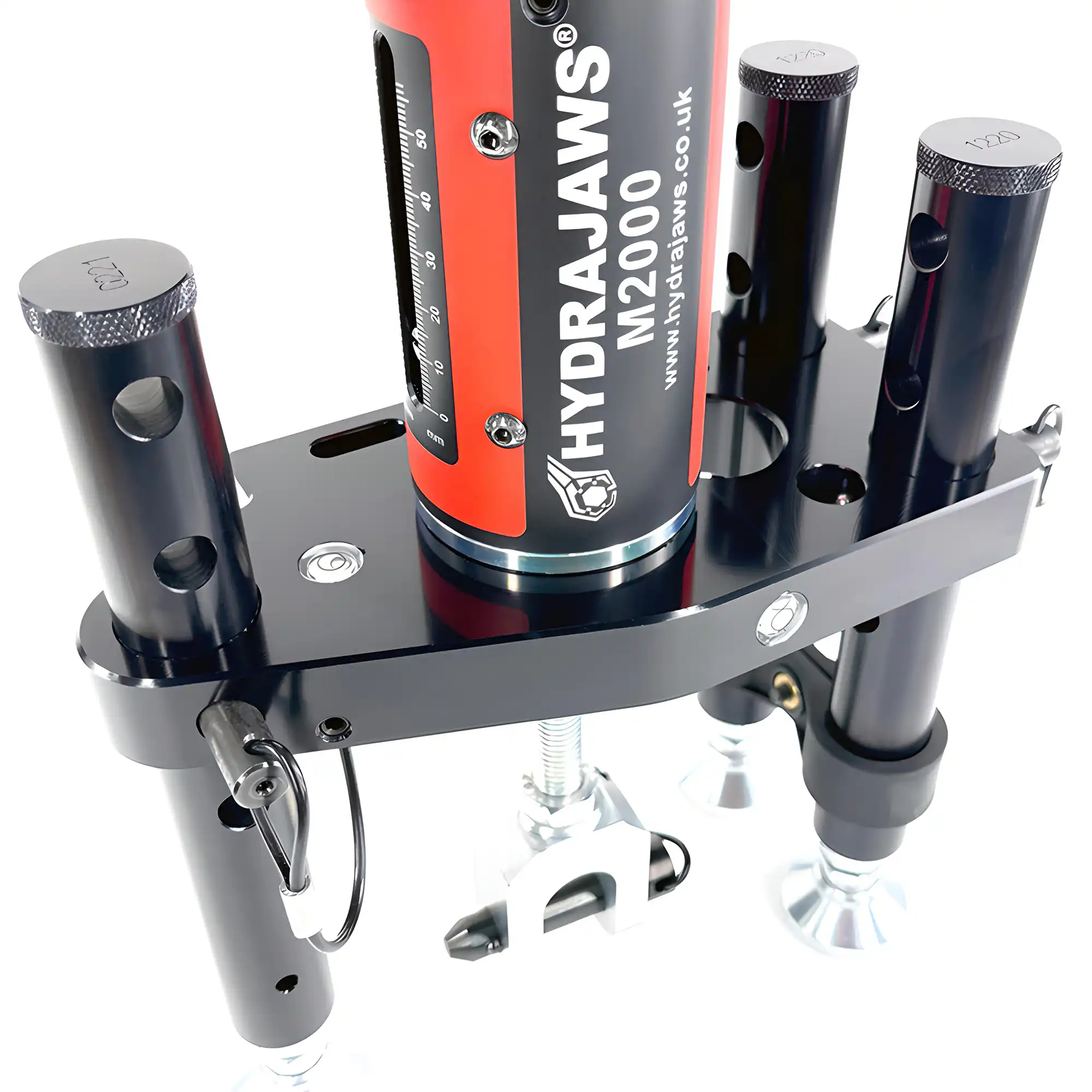

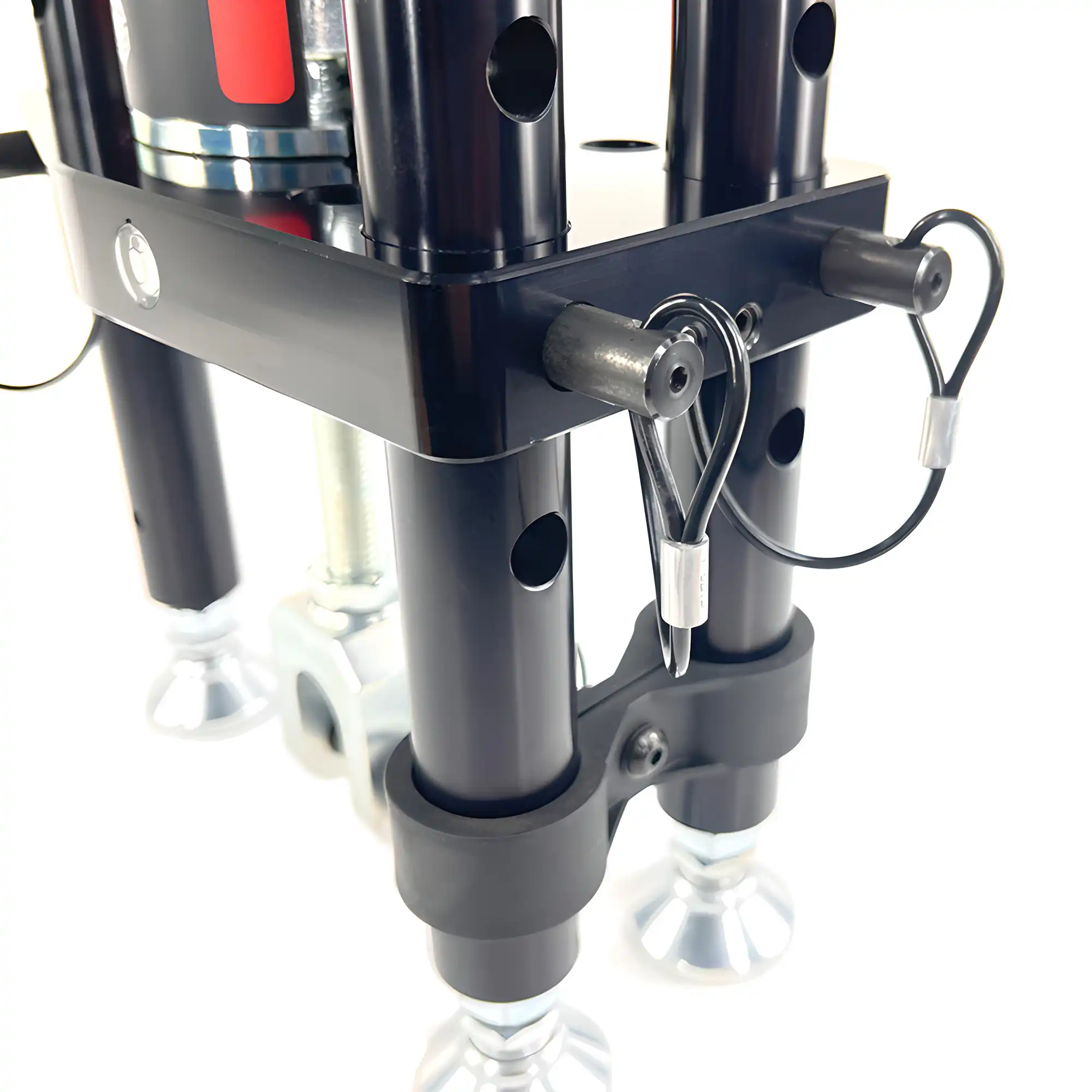

  • 2020 Load spreading bridge featuring height adjustable legs with pin arrangement in four positions with swivel feet giving 15mm of fine adjustment.
  • Turning Handle with 22mm (7/8″) integrated nut (for use in confined spaces).
  • Up to 50mm of stroke.
  • The anchor tester is preassembled and accessories can be quickly attached with ease.
  • Hydrajaws gauge calibration certificate (valid for 12 months).

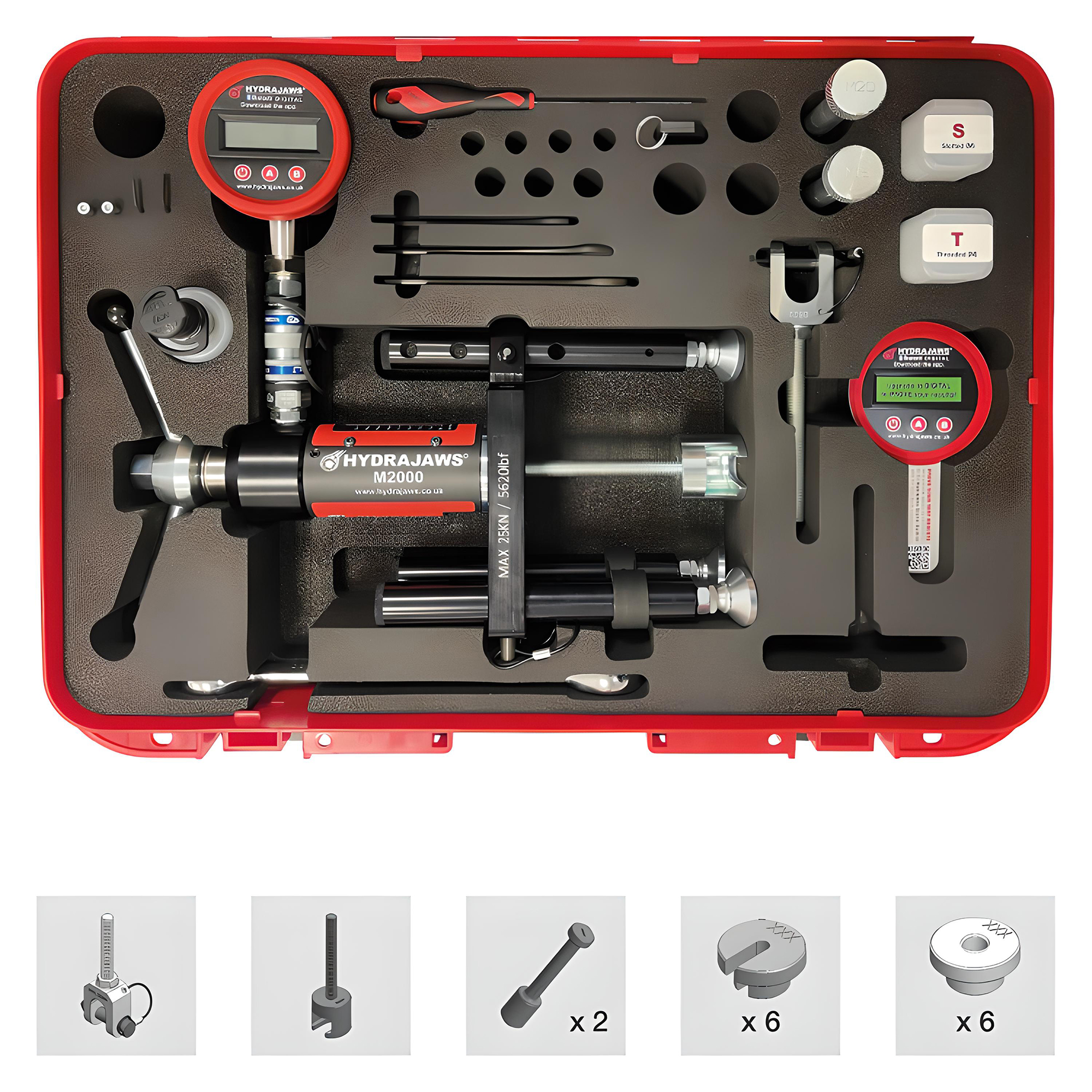

Hydrajaws M2000 Anchor Tester is supplied in a robust protective carry case with full operating instructions.

  • Kit includes the following adaptors:
  • M12 Ringbolt adaptor clevis
  • Bolt tester adaptor with M12 locking adaptor
  • M16 & M20 Threaded stud adaptors
  • Six slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 12.5mm
  • Six threaded button adaptors: M4, M5, M6, M8, M10, M12
