Hydraulic Rail Saw

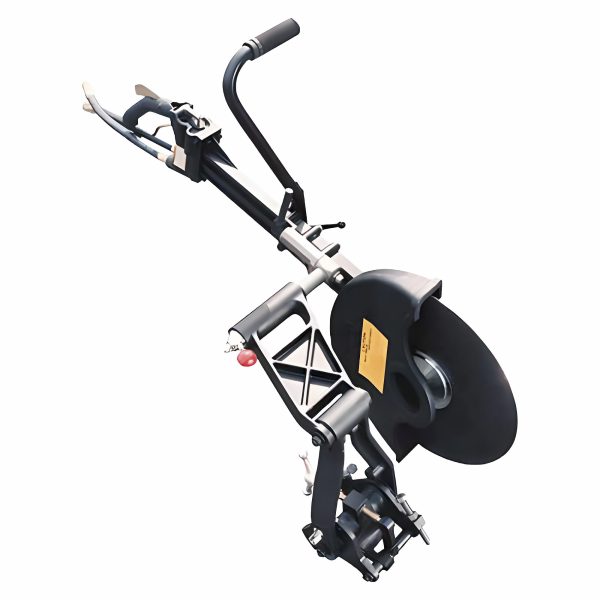

Stanley’s RS25 Hydraulic Rail Saw is used to cut rail quickly and quietly.

  • This saw runs from a Hydraulic powerpac or truck PTO making it excellent for night or tunnel work.
  • With its bell-crank style clamp design provides positive, rigid locking to all types of rail for quick and accurate set-up.
  • The ergonomic long saw arm is standard with the RS25 and allows the operator full use of the tool in a standing position.
  • The indexable swivel on the clamp arm and saw, allows cutting on both sides of the rail, eliminating the need to disconnect from and re-connect to the saw clamp.
  • Made in the USA and approved by Kiwirail for track use in NZ.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

  • Ergonomically-designed Long Saw Arm is standard with the RS25 and allows the operator full use of the tool in a standing position, reducing fatigue and the risk of back injury.
  • Full Upright Assist Handle (over guard) is adjustable to accommodate operator preference and collapses for transport and storage of the saw.
  • Indexable Swivel on the clamp arm and saw allows cutting on both sides of the rail, eliminating the need to disconnect from and reconnect to the saw clamp.
  • Features:
    • Ergonomic long saw arm for easier operation
    • Lockable lower arm significantly reduces operator effort
    • Indexable guard swivel lock
    • Sealed bearings in arm swivel joints
    • Direct drive hydraulic motor
    • Rugged lightweight cast aluminum guard
    • Built-in flow control for speed control
    • Integrated retractable blade index guide
    • CAPACITY (CUT LENGTH) 12, 15, & 20 IN / 30, 38, & 51 CM
    • SAW WEIGHT 33 LBS / 15 KG
    • CLAMP WEIGHT 22 LBS / 9.9 KG
    • TOTAL WEIGHT 56 LBS / 25 KG
    • LENGTH 36 IN / 92 CM
    • WIDTH 11 IN / 28 CM
    • PRESSURE 1800 – 2000 PSI / 124 – 140 BAR
    • FLOW RANGE 8 – 10 GPM / 30 – 38 LPM
    • RPM 4000
    • DEPTH 18 IN / 46 CM
    • CONNECTOR HTMA FLUSH FACED COUPLER
