PR2 Rail web Drill

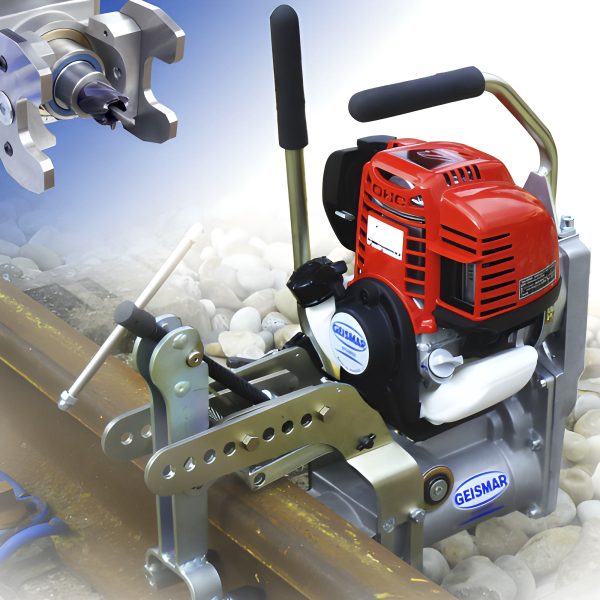

The Geismar PR2 Ultra- Light Compact Rail Drilling Machine (PR2 Rail web Drill)

Designed for fast and accurate drilling all types of flat bottom or grooved rails, whatever their hardness. Used to drill holes through the web of the rail, generally so brackets or cable connections can be made.

Made in France and approved by Kiwirail for track use in NZ.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Specifications: (PR2 Rail web Drill)



Hollow drill bits
Drilling time decrease
Excellent surface finish
Decreasing drill chips
Up to 85 mm drilling stroke (the highest in the market)
Drilling diameter: up to 40 mm
Manual advance system through capstan arm, pressurized lubricating and cooling system through the spindle
The universal vice (multi holes position for all kind of flat bottom or grooved rails) with fast lever catch and the interchangeable rail forms ensure accurate fixing and sturdy clamping
Power source: Petrol 4-stroke Honda engine
Weight approx 19Kg
