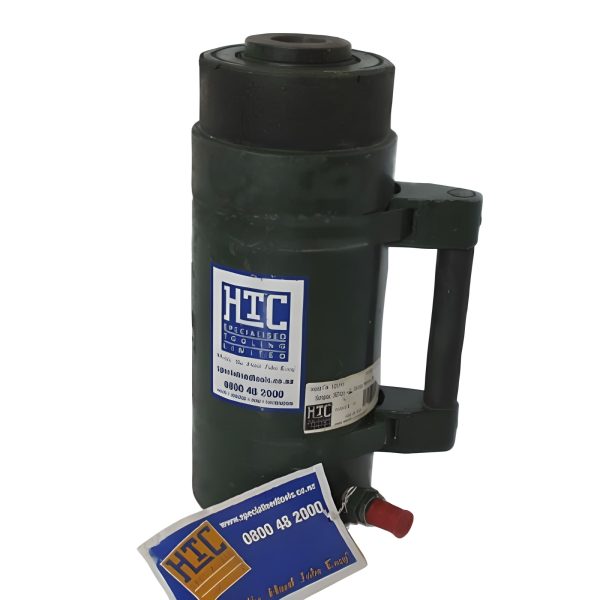

RC306
,

RC306 30 Ton x 152mm Stroke

Hollow cylinders / hollow rams have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 1049cc
Cylinder effective area 57.7cm²
Closed height 311mm
Outside diameter 127mm
Piston diameter 63.5mm
Centre hole diameter 41mm
Weight: 23.6kg
Heavy duty spring for quick return

Please Note these are the specs for the older RC-306 model not the Rc-306A
