RC5x
,

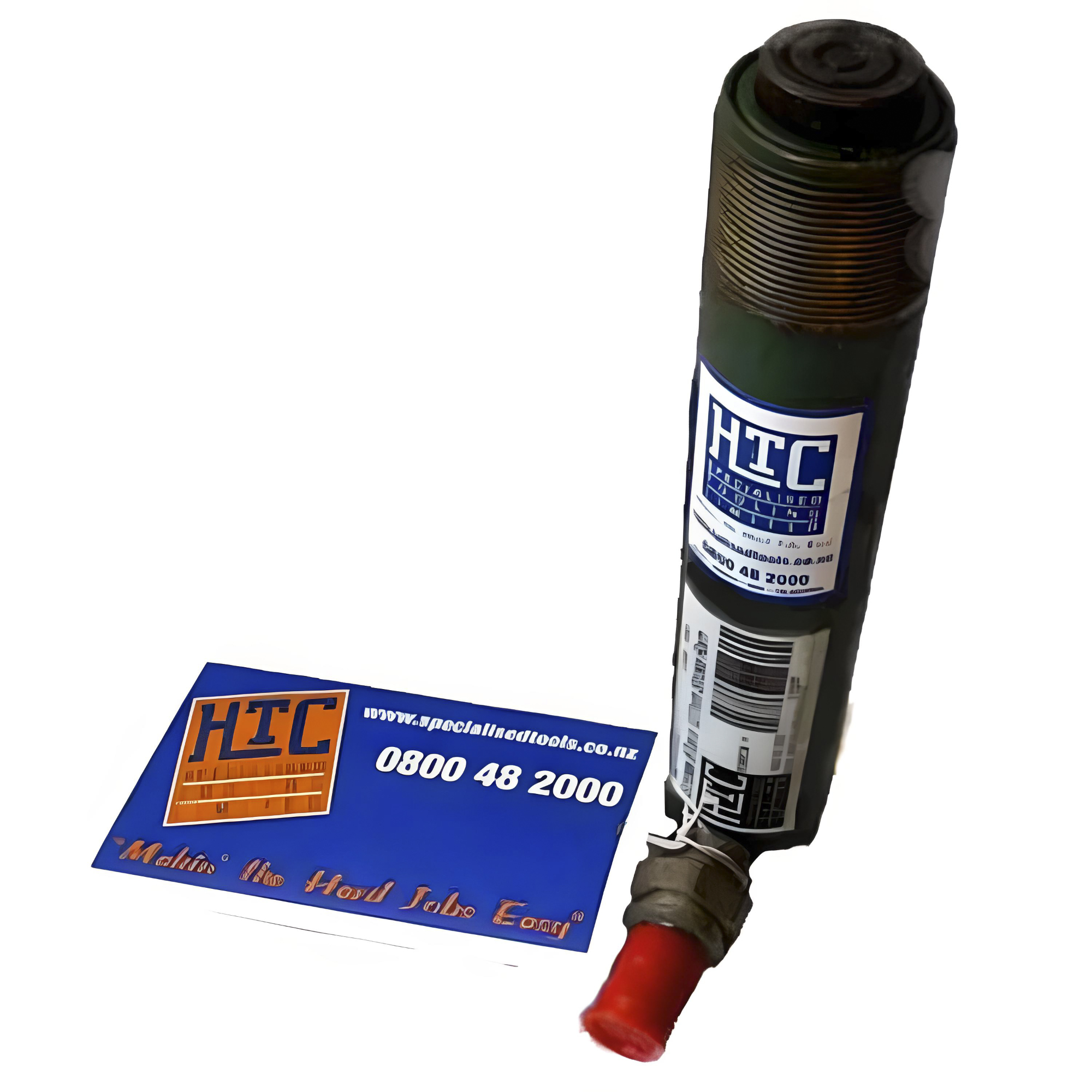

RC51 5Ton 25mm Stroke x 110mm Closed Height

Single acting, spring return rams are suitable for most jacking and pressing applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

RC51 5Ton 25mm Stroke x 110mm specifications:

Oil capacity 16.4cc
Cylinder effective area 6.4cm²
Closed height 110mm
Outside diameter 38mm
Piston diameter 25mm
Weight: 1.1kg
