RHS603
,

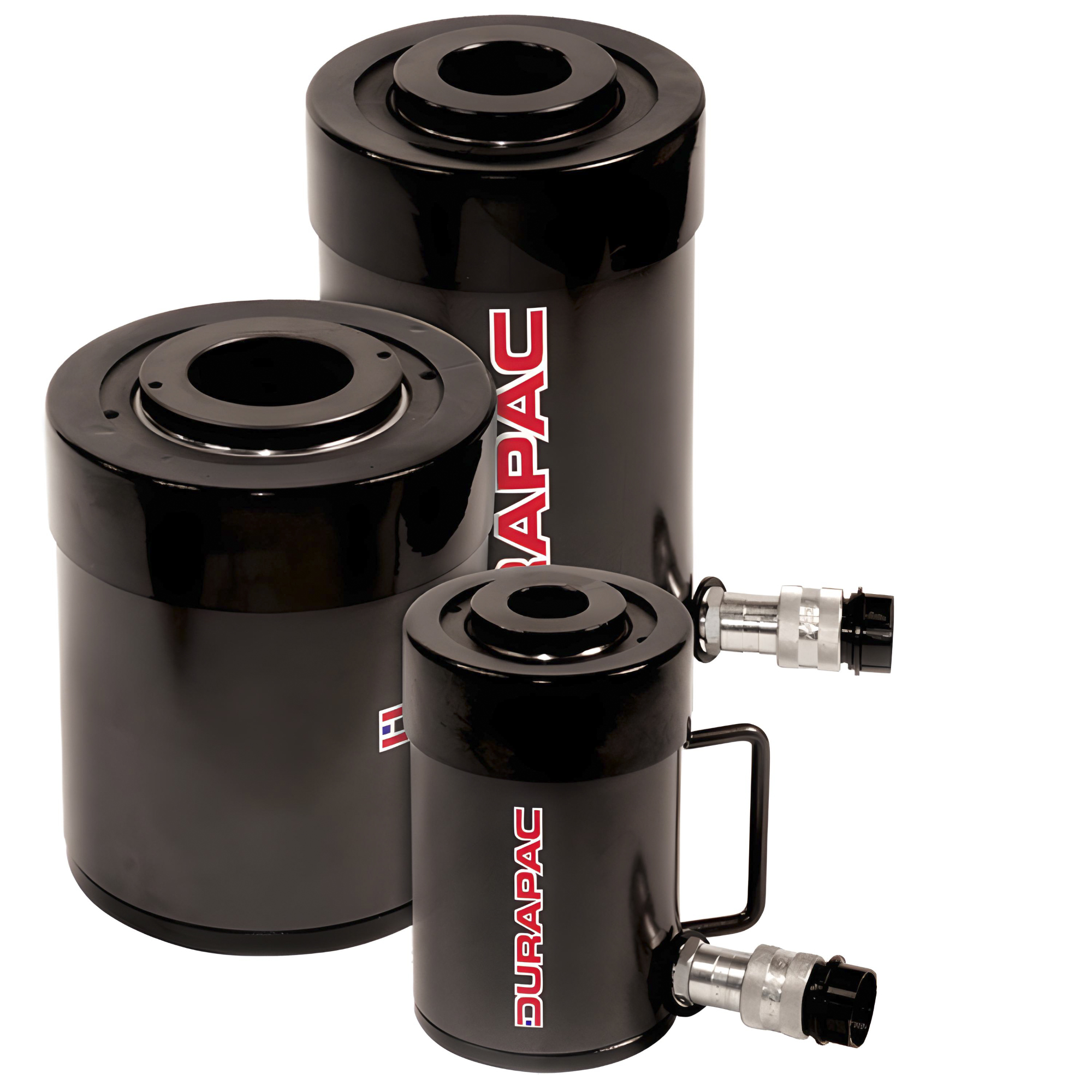

RHS603 60 Ton x 76mm Stroke

Hollow cylinders / hollow rams have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 629cc
Cylinder effective area 82.3cm²
Closed height 247mm
Outside diameter 159mm
Piston diameter 91.9mm
Centre hole diameter 53.8mm
Weight: 28.1kg
Heavy duty spring for quick return
