PART NUMBER | NOMINAL SIZE | SIZE USAGE RANGE | REQUIRED INFLATION PRESSURE | DEFLATED PLUG | PRODUCT WEIGHT | EYE BOLT | INFLATION VALVE | BYPASS DIAMETER | ||
MIN. DIA. | MAX. DIA. | DIAMETER | RUBBER LENGTH | |||||||
[mm] / [inch] | [mm] / [inch] | [bar] / [psi] | [mm] / [inch] | [mm] / [inch] | [kg] / [lbs] | M THREAD | THREAD SIZE | (FEMALE) | ||
60970 | 350-600 / 14”-24” | 350 / 14” | 600 / 24” | 1.5 / 22 | 322 / 12.7” | 830 / 33” | 17 / 38 | M 10 | R 1/4” | 6” (4”, 2”) |
Home / For Hire / Pipe Sealing and Testing / Sava 60970 Pneumatic Plug Type Plugsy 350-600mm Vp (6")

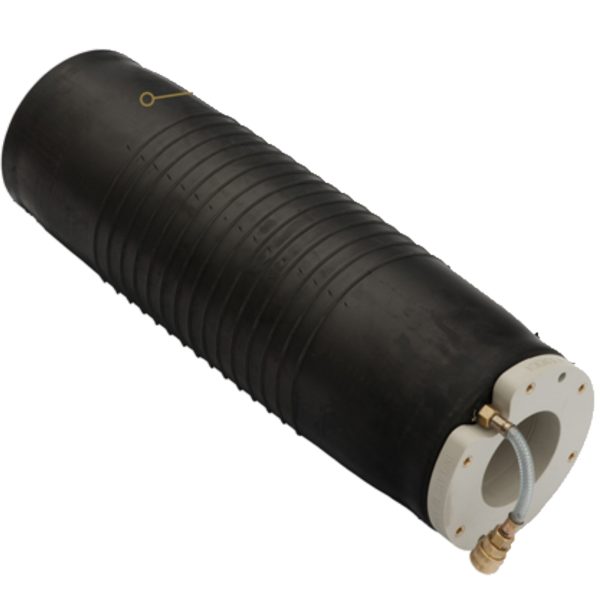

Sava 60970 Pneumatic Plug Type Plugsy 350-600mm Vp (6″)
- Bypass diameter up to 6 inches
- Replaceable rubber sleeve is reinforced with aramid cord and ensures safe and simple handling and bypass flange
- Non-corrodive metal parts
*The article may differ to the image shown.
For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.
