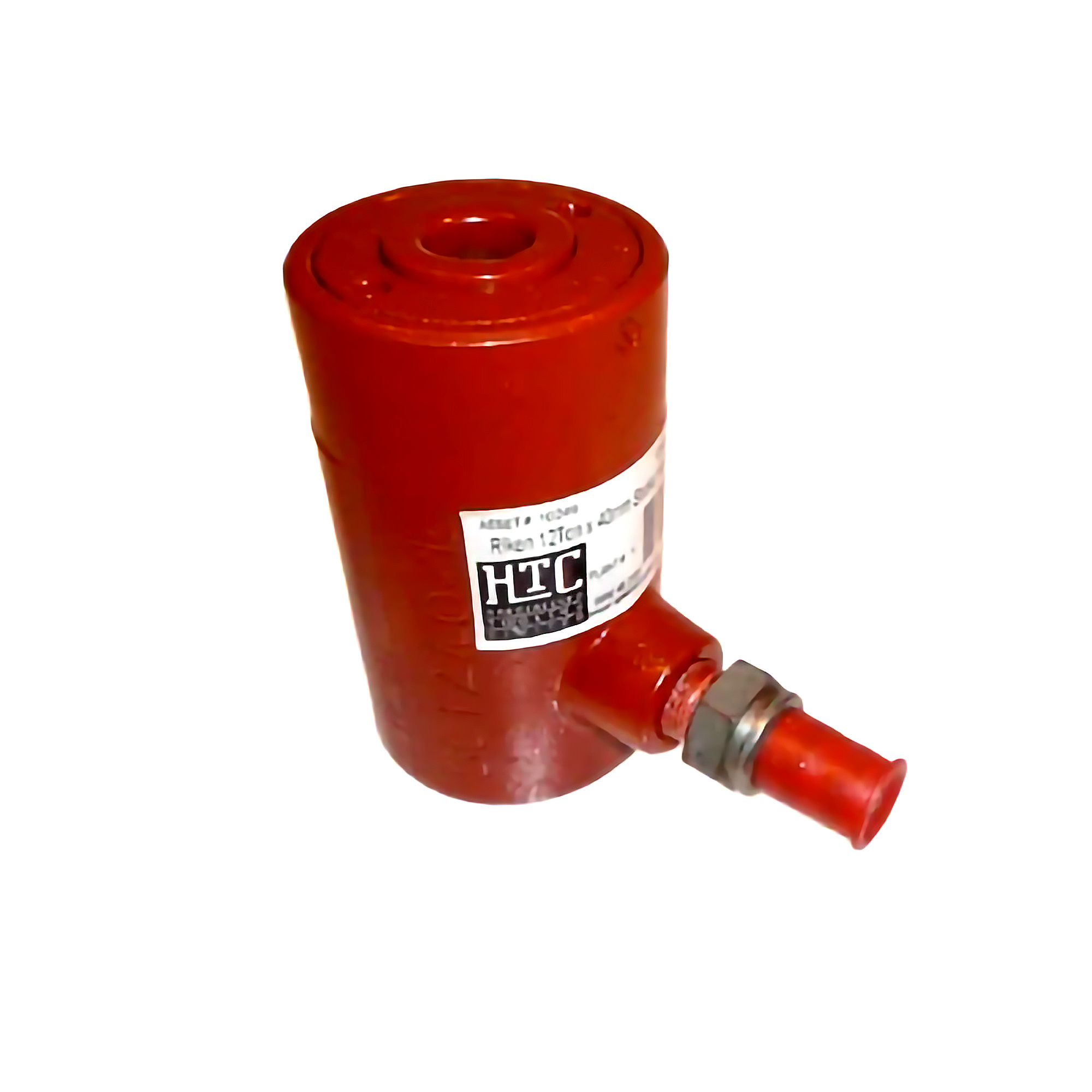

SC1240 12 Ton Hollow Ram
,

SC1240 12 Ton Hollow Ram 126.5mm-CH 40mm-ST

Hollow cylinders have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 72cc
Cylinder effective area 17.9cm²
Closed height 126.5mm
Outside diameter 70mm
Piston diameter 35mm
Centre hole diameter 19.5mm
Weight: 3.0kg
Heavy duty spring for quick return
