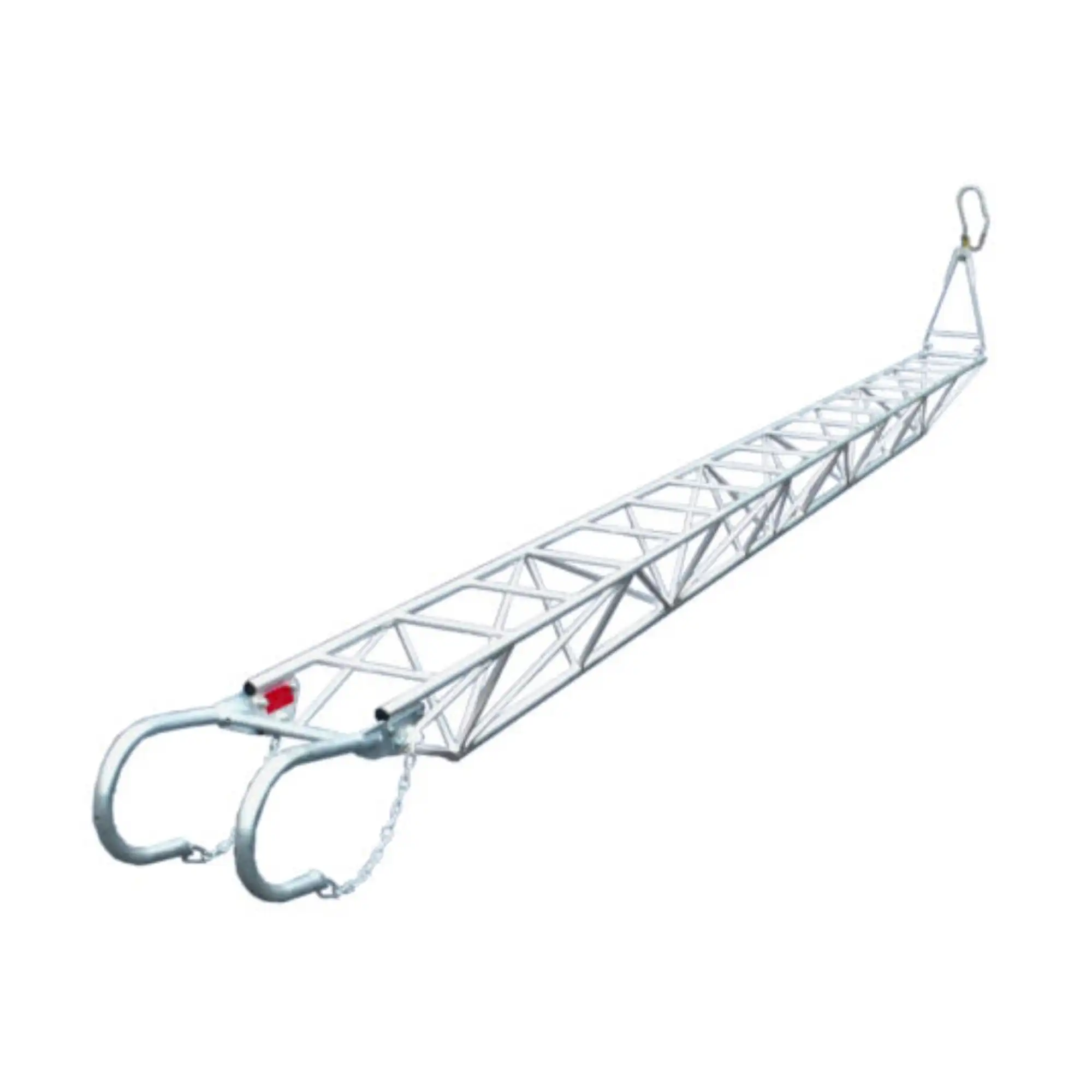

013-G WORKING PLATFORM

TRIANGULAR SECTION HORIZONTAL PLATFORM STRUCTURE
Suitable to be used on vertical as well as horizontal position.

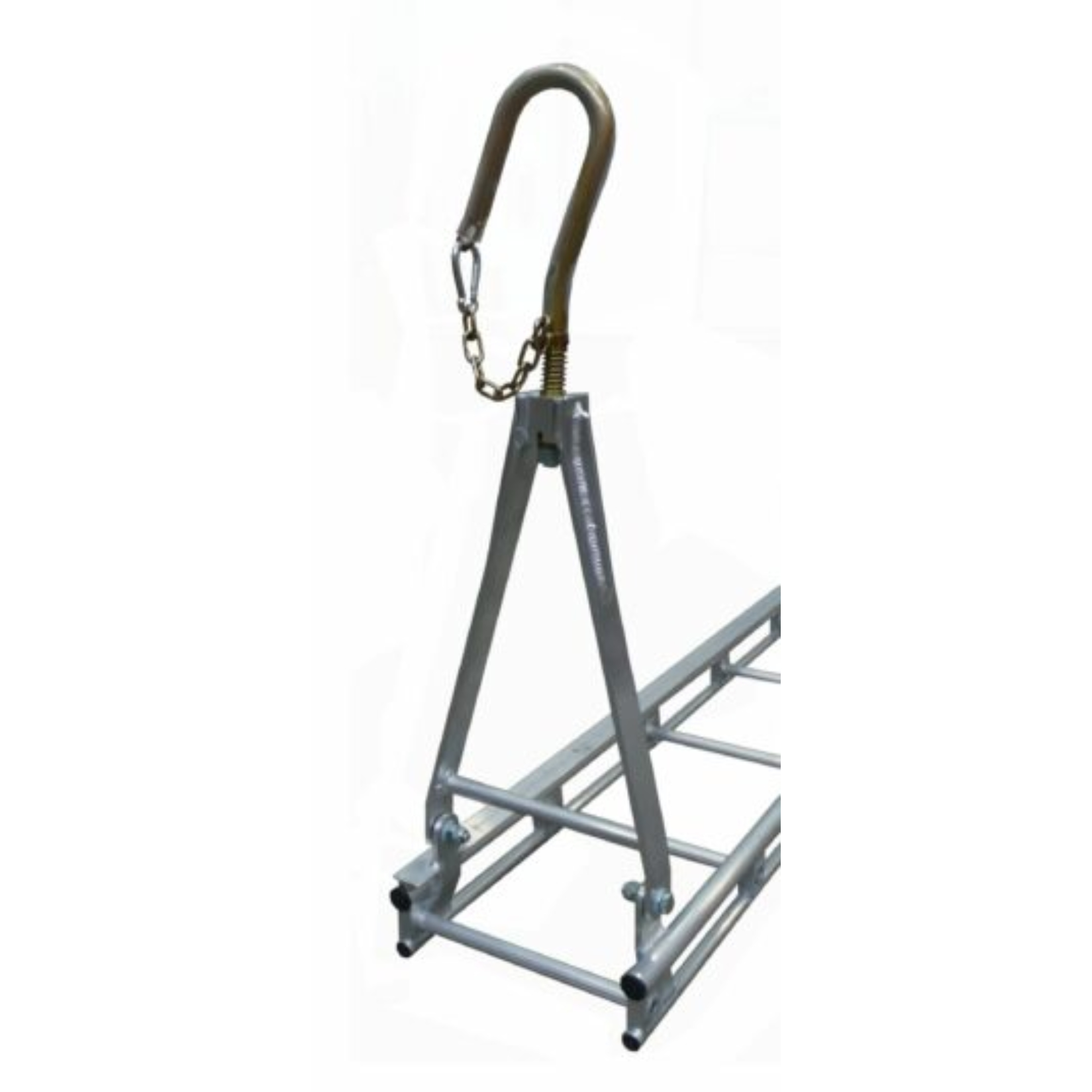

Made of light aluminum alloy, welded (Certified TIG system) with skid-proof rungs galvanized steel hook with safety chain (tower side) and swivelling/foldable hook
Mod. AG/SS (conductor side).
– Horizontal working load 200 daN.
– Vertical working load 300 daN.
Upon request:

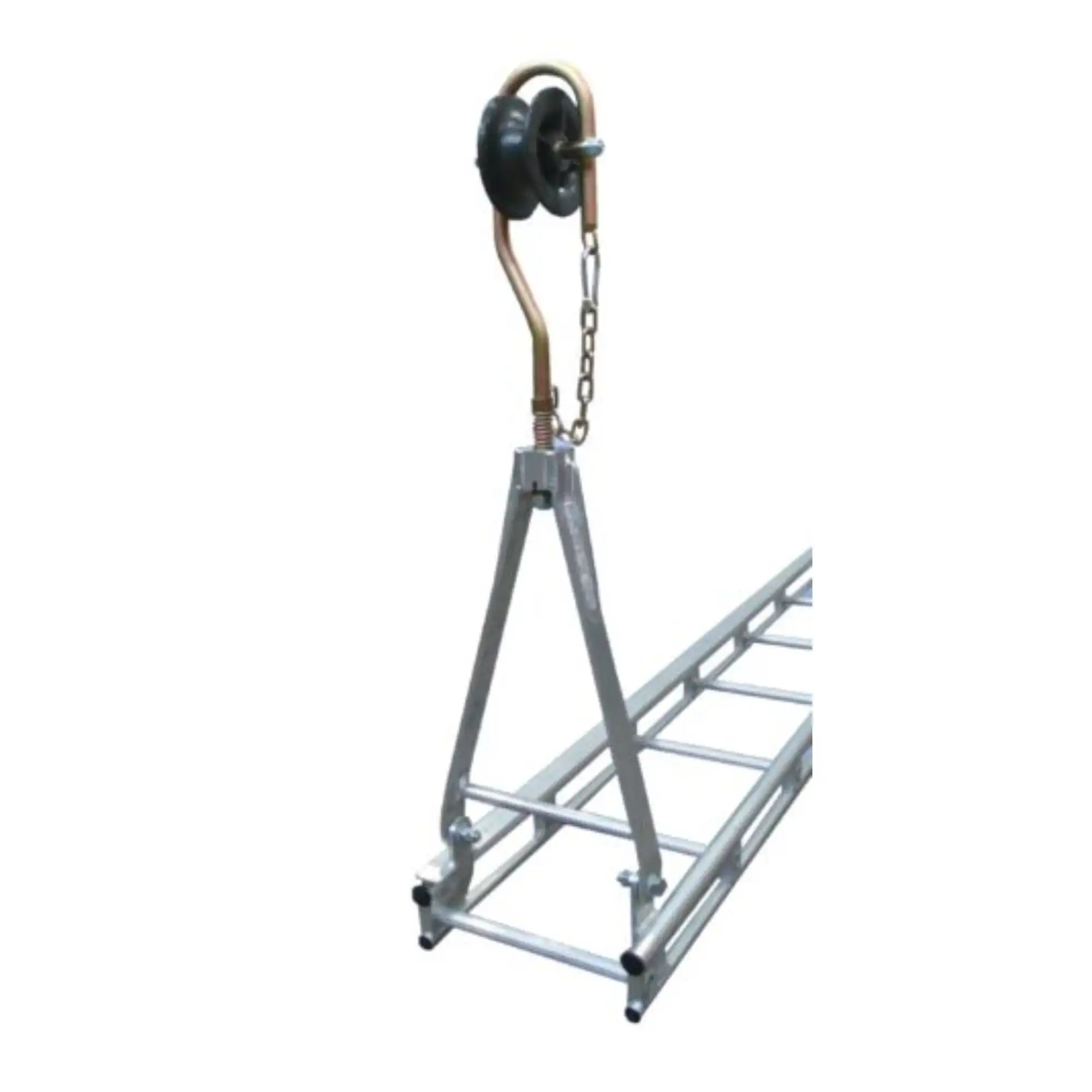

– Adjustable/folding conductor side hook with nylon wheel Mod. AG/SS-R;
– Tower-side hook with opening size up to 400mm;
– Different lengths and compositions.
