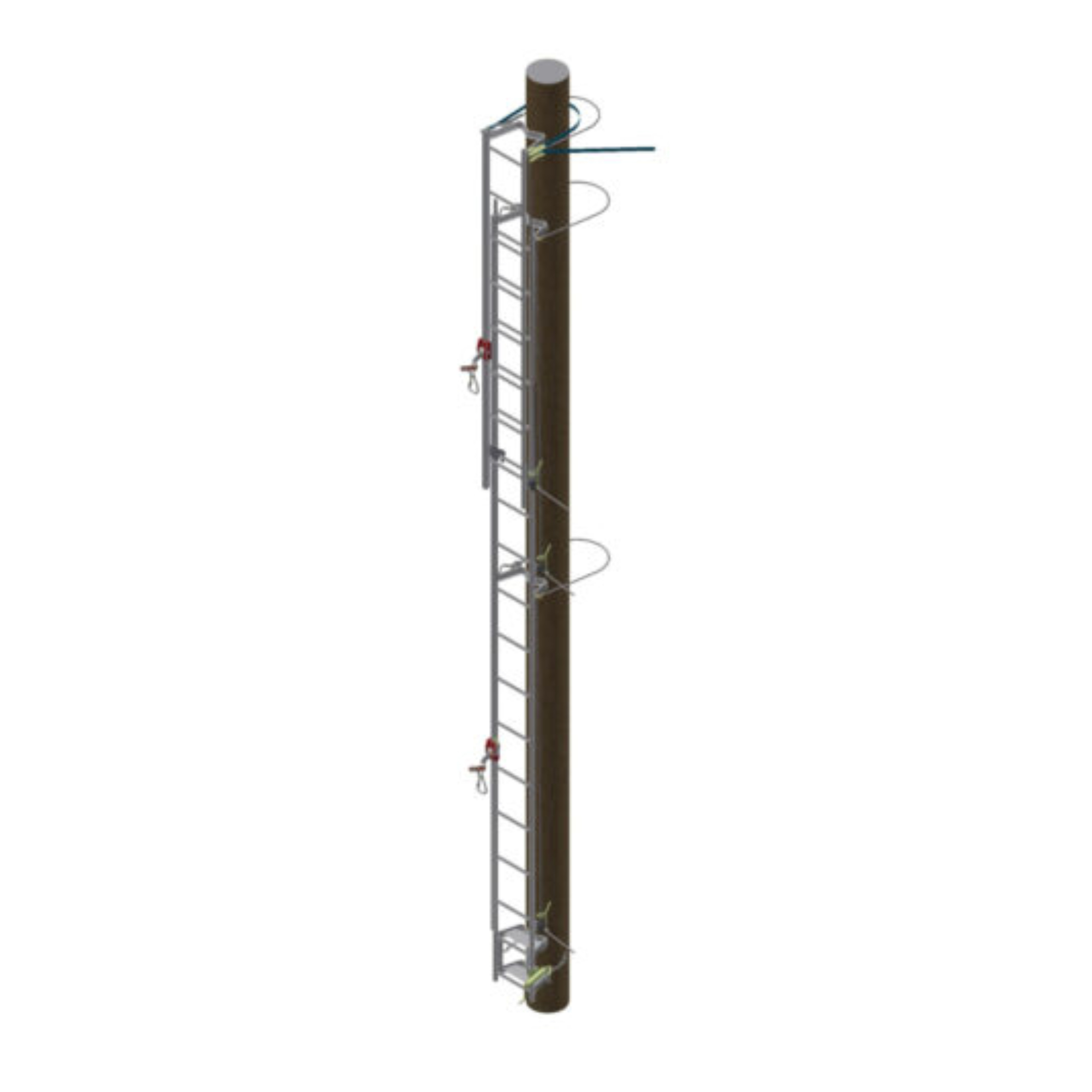

014 LADDER FOR STEEL AND CONCRETE POLE CLIMBING

ALUMINUM LADDER WITH SAFETY DEVICE FOR STEEL AND CONCRETE POLE CLIMBING
Suitable for climbing circular and polygonal poles.
For quadrangular poles a special configuration is available upon request.
Made of welded light aluminum alloy (certified TIG system) with skid-proof rungs.
Certified according to UNI CEN/TS 16415:2013, UNI EN 795:2012 regulations and in compliance with EU 2016/425 regulation.
Modular structure with base and top sections and as many intermediate elements as needed to reach the desired length (up to 30m).
The ladder is equipped with two anti-fall devices with anchoring points for operator’s safety belt.
An aluminum alloy service platform for the operator is also available upon request.
Working load: 150 daN
*Higher capacities upon request
NOTE:
To prevent undesired torsions on the structure while operating on high poles (above 30m), a chain-locking device is also available on request. (Mod. 014/BIP).
Weights with standard accessories:
– Self-supporting base 014/B – 5.5 kg
– Intermediate element 014/I – 6 kg
– Upper part element 014/C – 6.5 kg
– Service platform 014/PL – 1 kg
