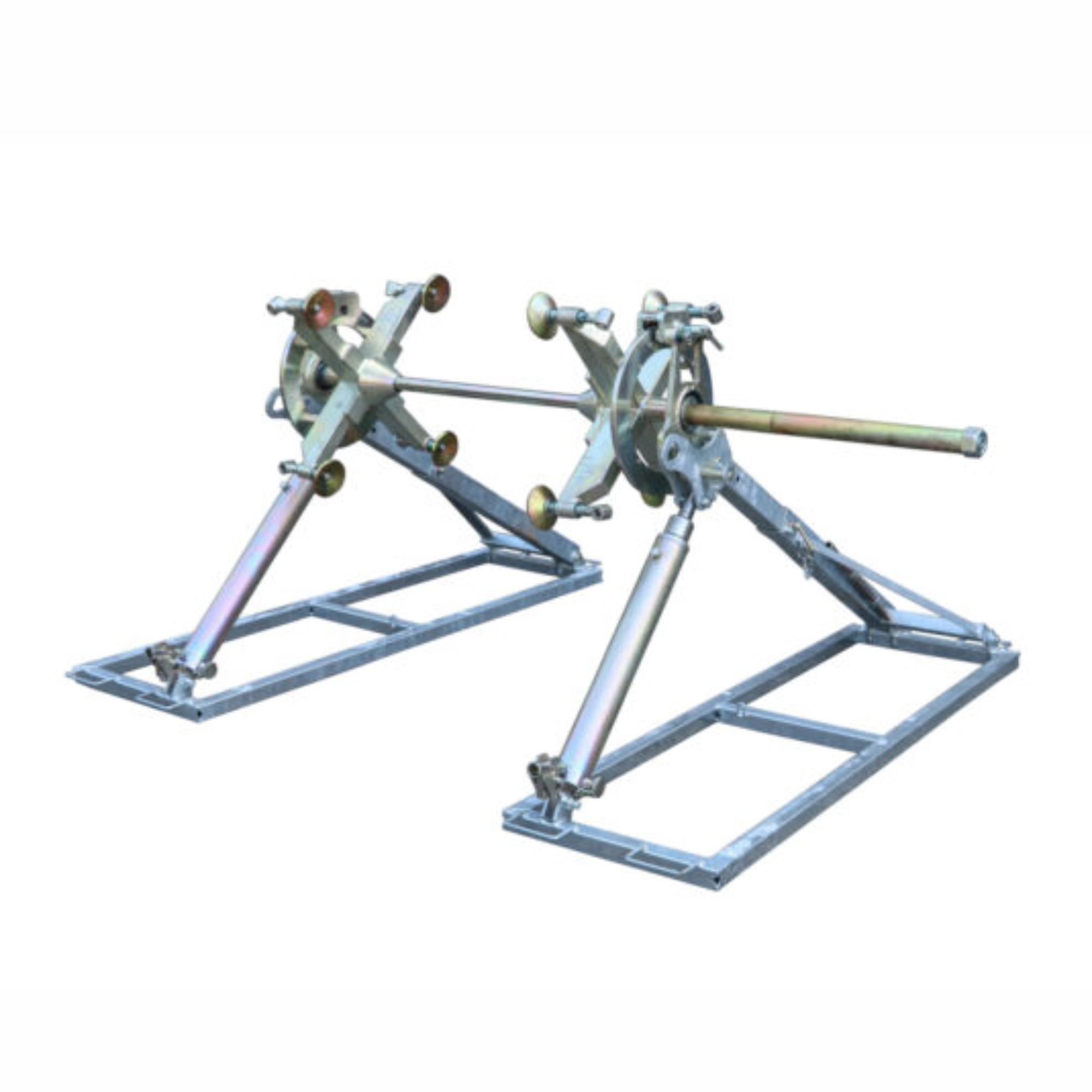

040-4-7-10 HYDRAULIC REEL STAND

Capacity from 4 to 10 t.
Complete with mechanical braking system.
Suitable for conductor wooden drums or steel reels for aerial stringing operations and underground cabling.
Made in steel with foldable structure for ease of transport.
Drum lifting system by hydraulic jacks.

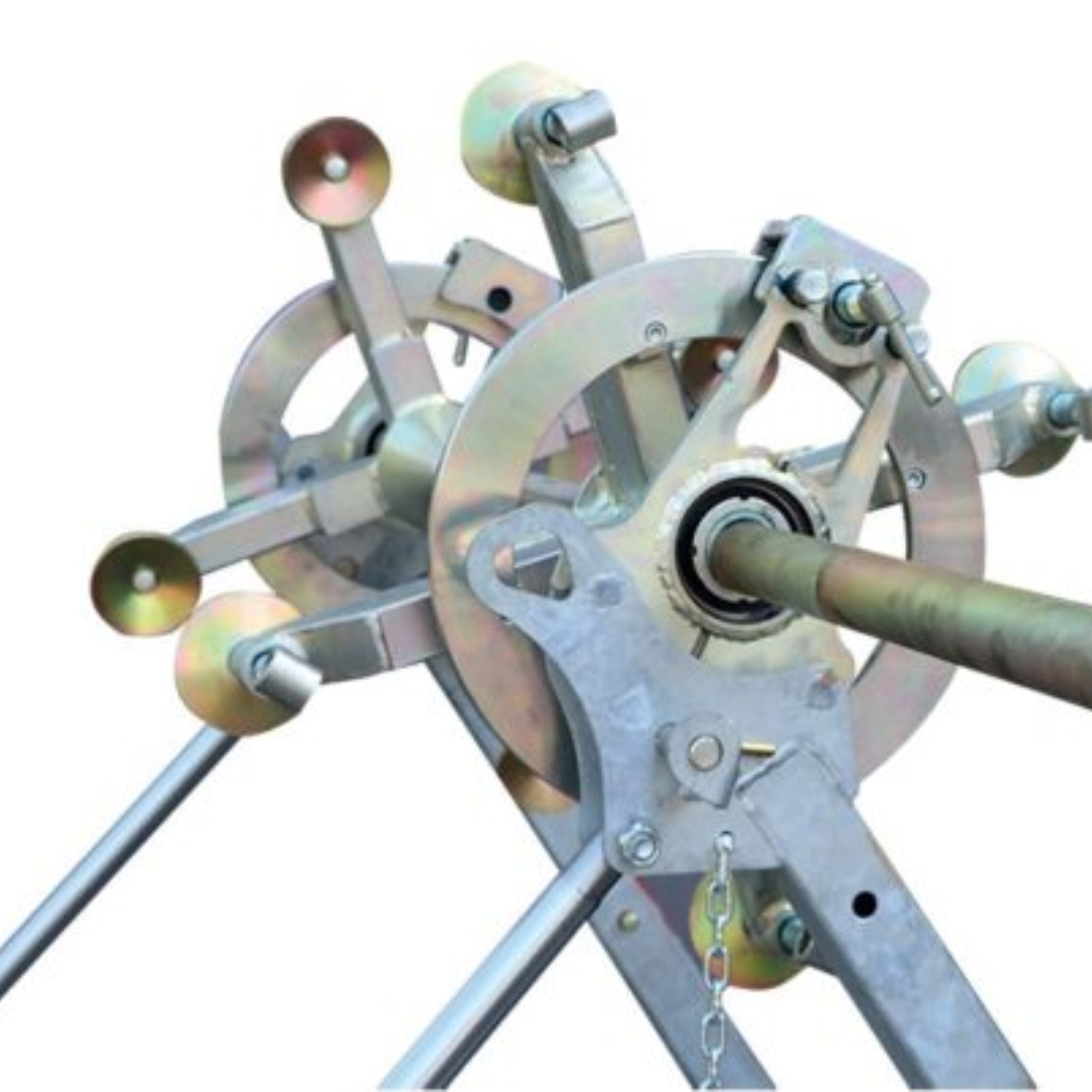

N° 2 mechanical disc brakes to control and adjust the torque force and counter-pull, with replaceable brake pads.
Steel shaft on ball-bearings with adjustment wedges.
Available on request:
– Hydraulic braking system;
– Mechanical locking system
