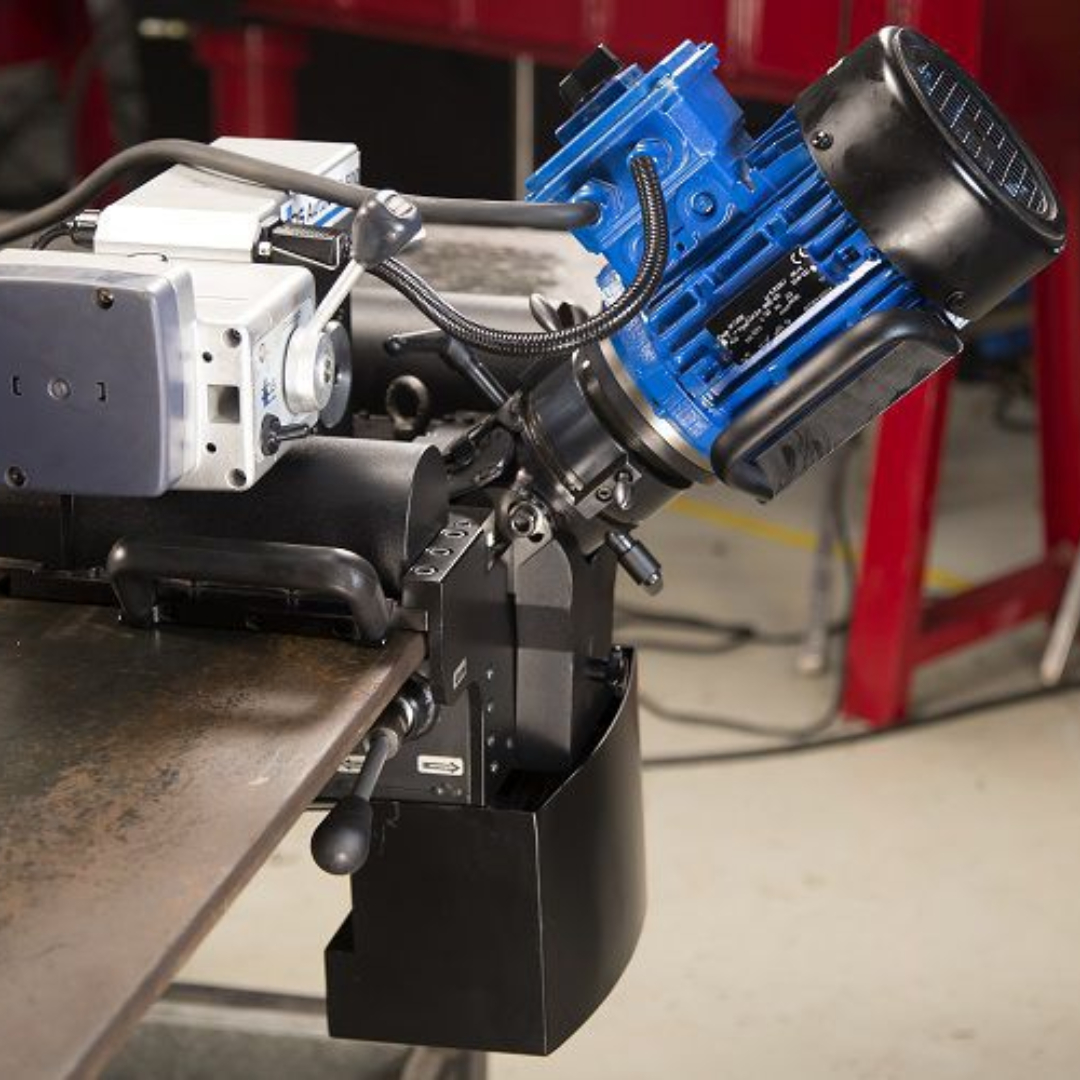

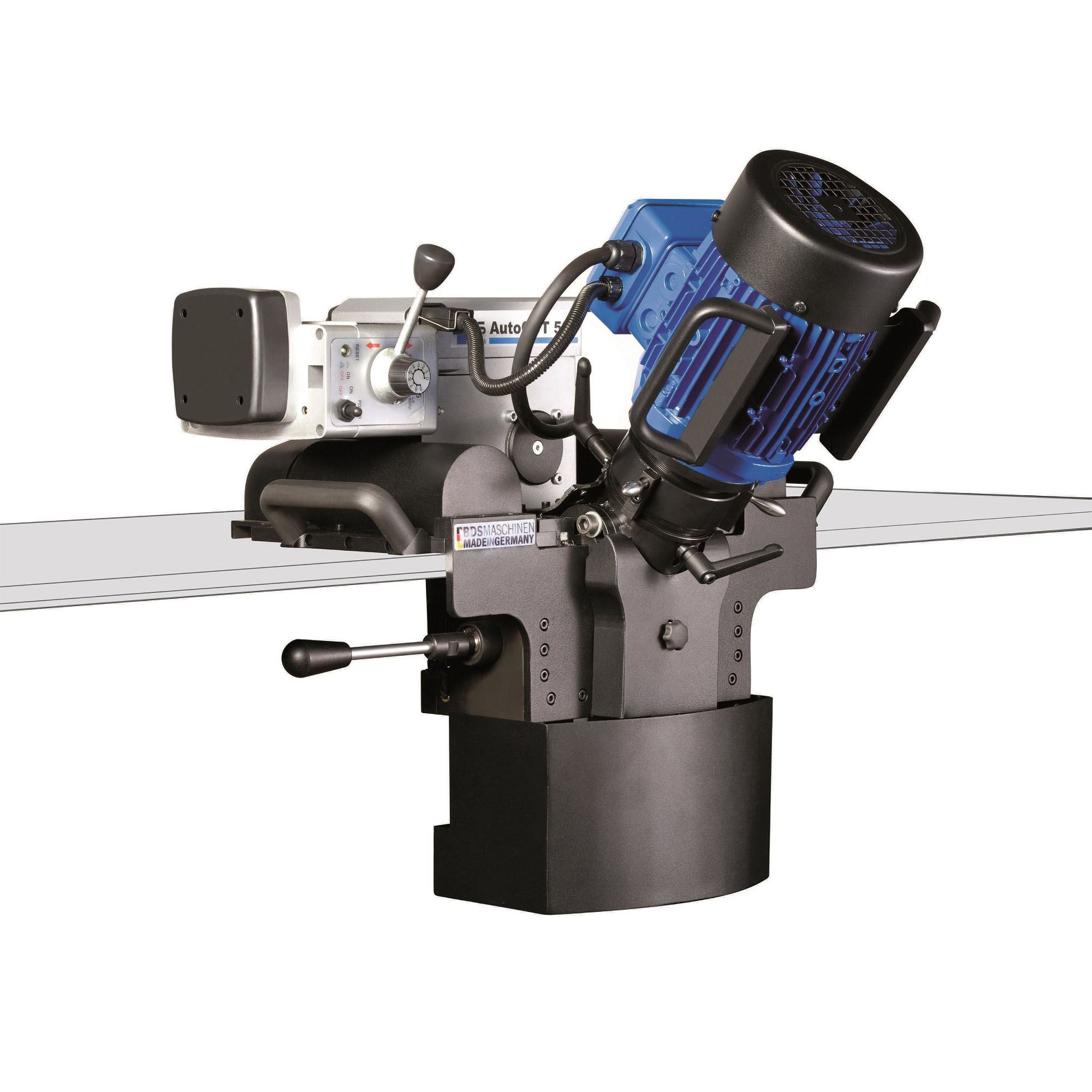

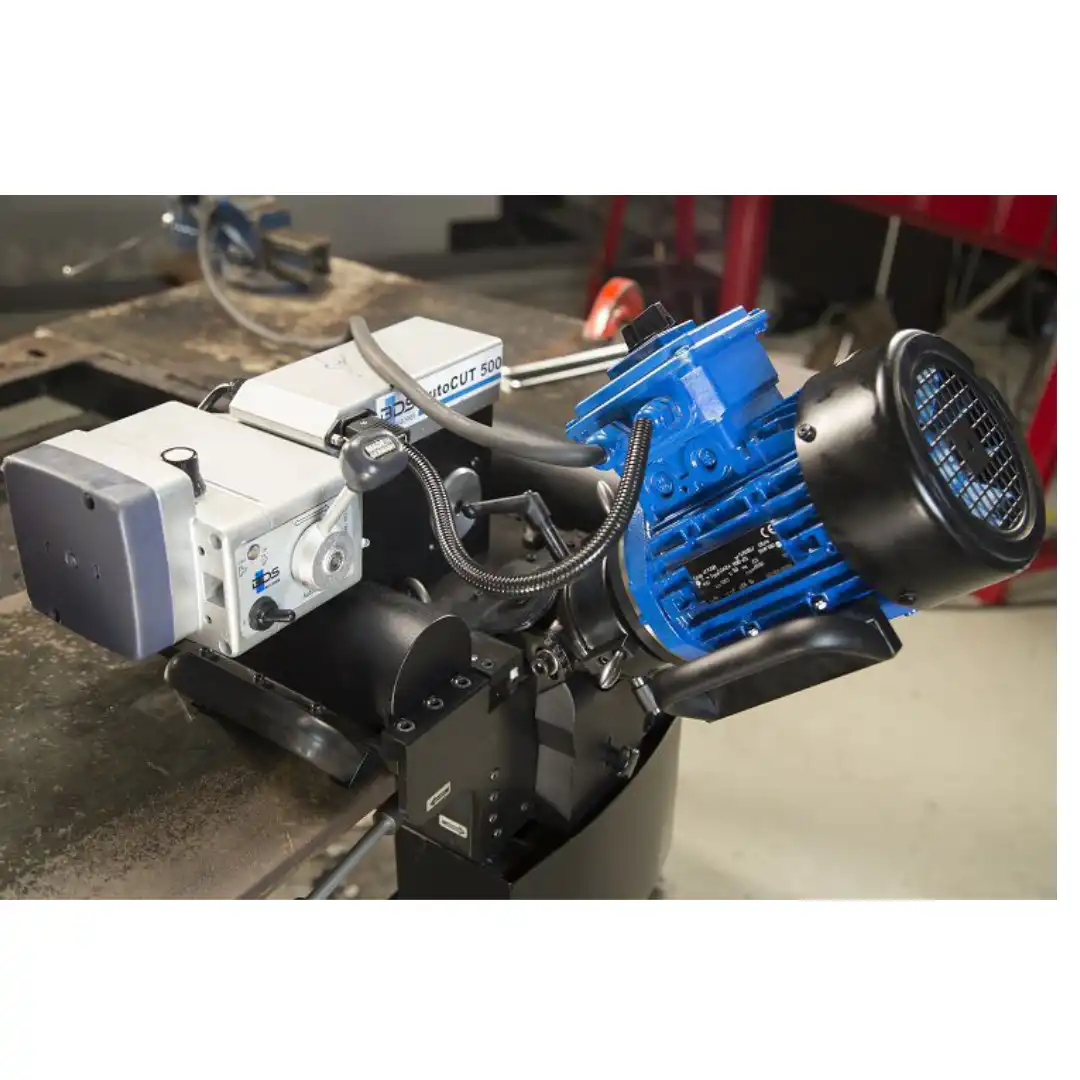

AutoCUT 500 Automatic Plate Beveling Machine
The AutoCUT 500 Automatic Plate Beveling Machine for weld preparation.
Fast and easy preparation of weld seams. Continuously adjustable angle (15° to 60°) & land width up to 30mm on plate up to 40mm thick with no restrictions of the working length. Robust design, single operator control, and easy handling.
Automatic feed on plate without the need for a cart or stand. Ideal for use on steel, aluminum and nonferrous metals. Offers high-quality performance that allows for superior weld connections.

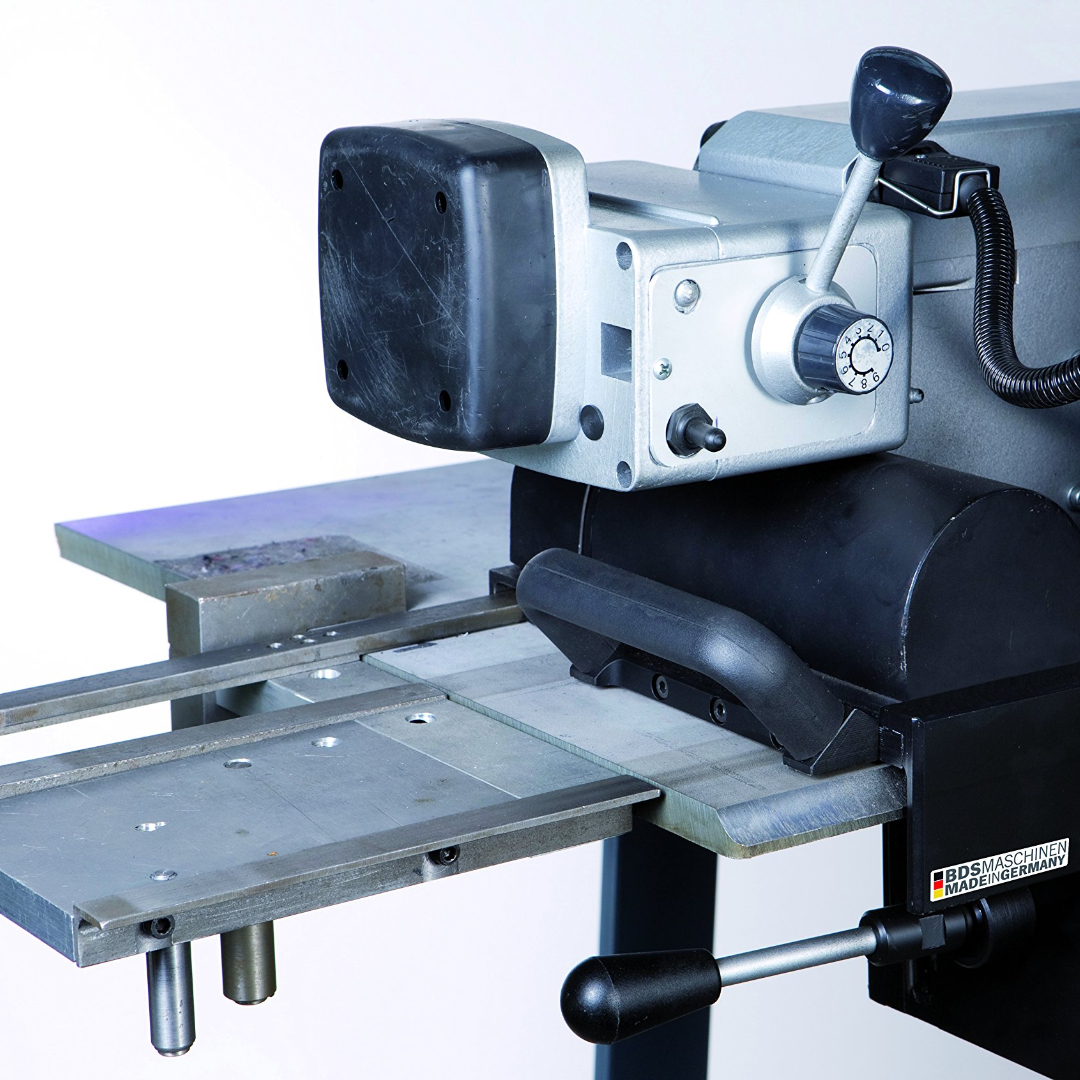

Plate beveling with automated and continually adjustable speed rate: fast, flexible and variable milling angle adjustment. The guide rails make handling the Autocut 500 automatic plate beveling machine especially simple and secure.
Additional Information
More Information
Technical Specifications
- Motor Output 1100 Watt
- Voltage 380 Volt
- Speed 2750 min -1
- Feed Automatic and smoothly adjustable
- Chamfer Width max. 30 mm
- Angle Adjustment 15° – 60° continuous (or) Seamless
- Milling Cutter ZFR 500
- Carbide Reversible Disc (Insert) SHM 400
- Weight 50 kg
