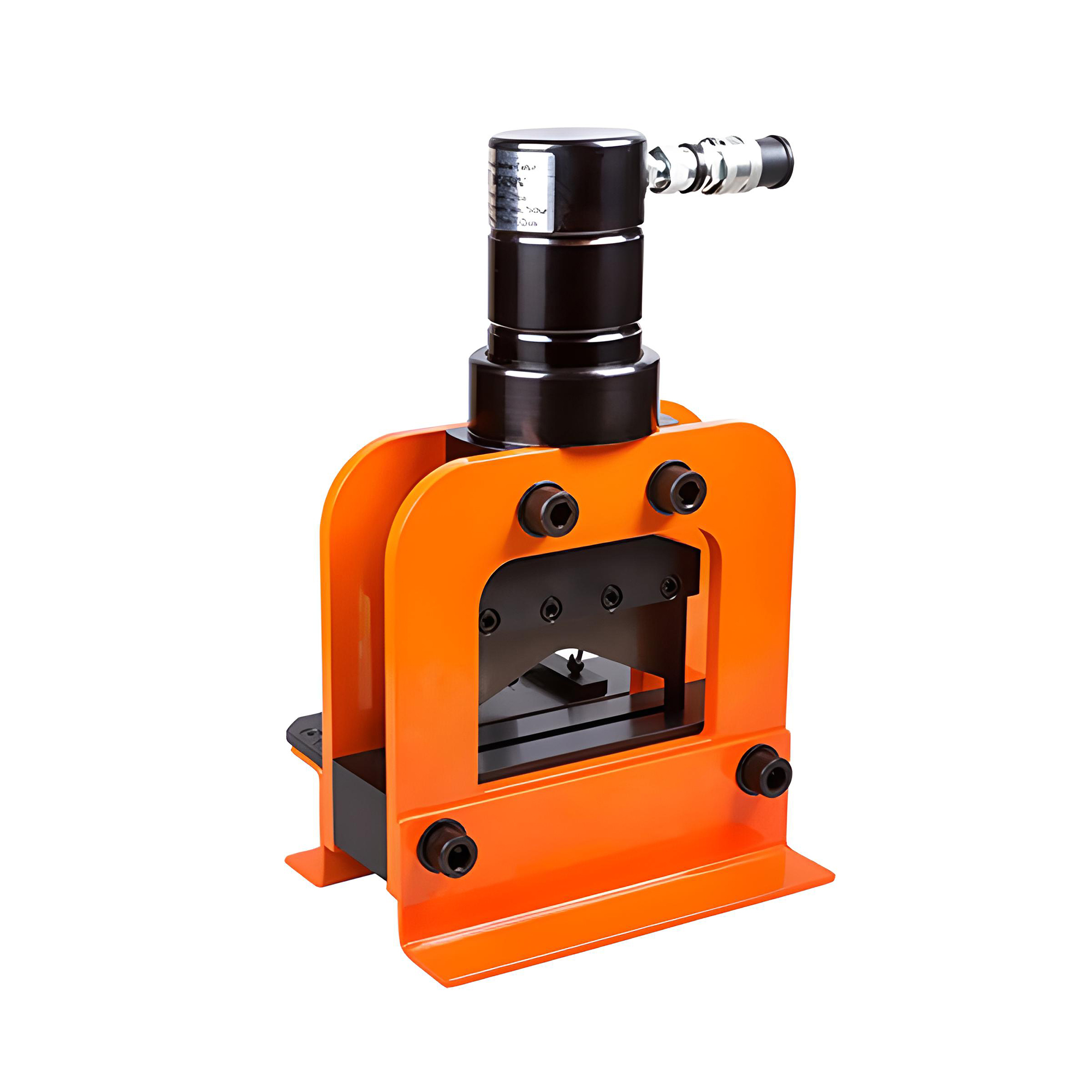

BC-150V hydraulic busbar cutter
Model BC-150V
Output Force 25T
Max Cutting Thickness 12mm
Max Cutting Width 200mm
Rated Pressure 700bar
Weight 28kg
Category: Busbar Tools
Brand: Bete
More Information
• Cut Cu and Al busbar
• Quick cut with smooth cut surface, chipping, cut waste easy to recyle
• V-type blade ensure cut surface not depressed, efficient contact area of busbar
• Graduated plate on machine makes the center adjustment easy, cutting synchronously and keeping blade away from damage
• Portable for mobile operation, also suitable for workshop production work
• Equipped with quick coupler for easy disassembly
• Powered by single acting hydraulic pump (sold separately)
