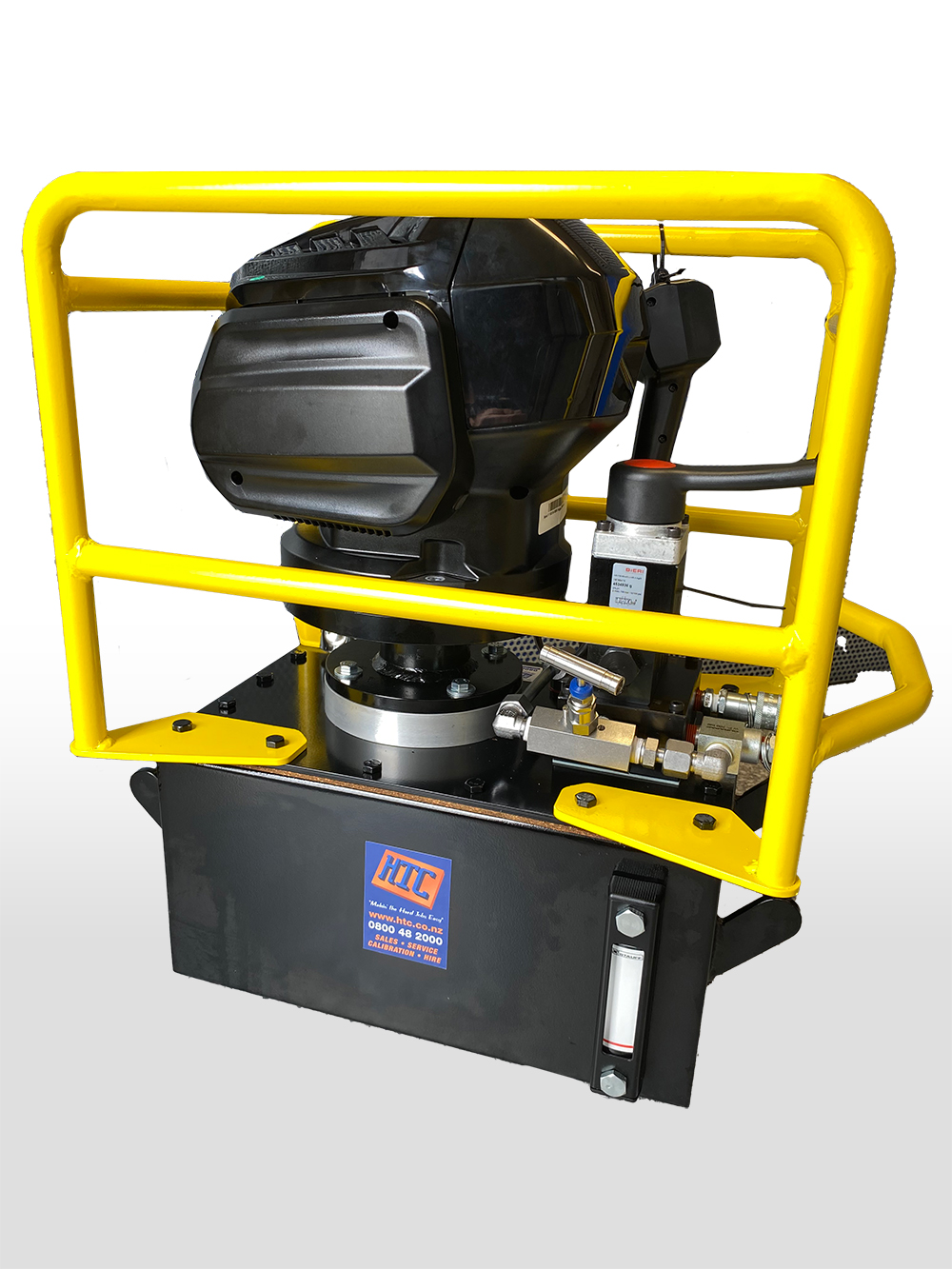

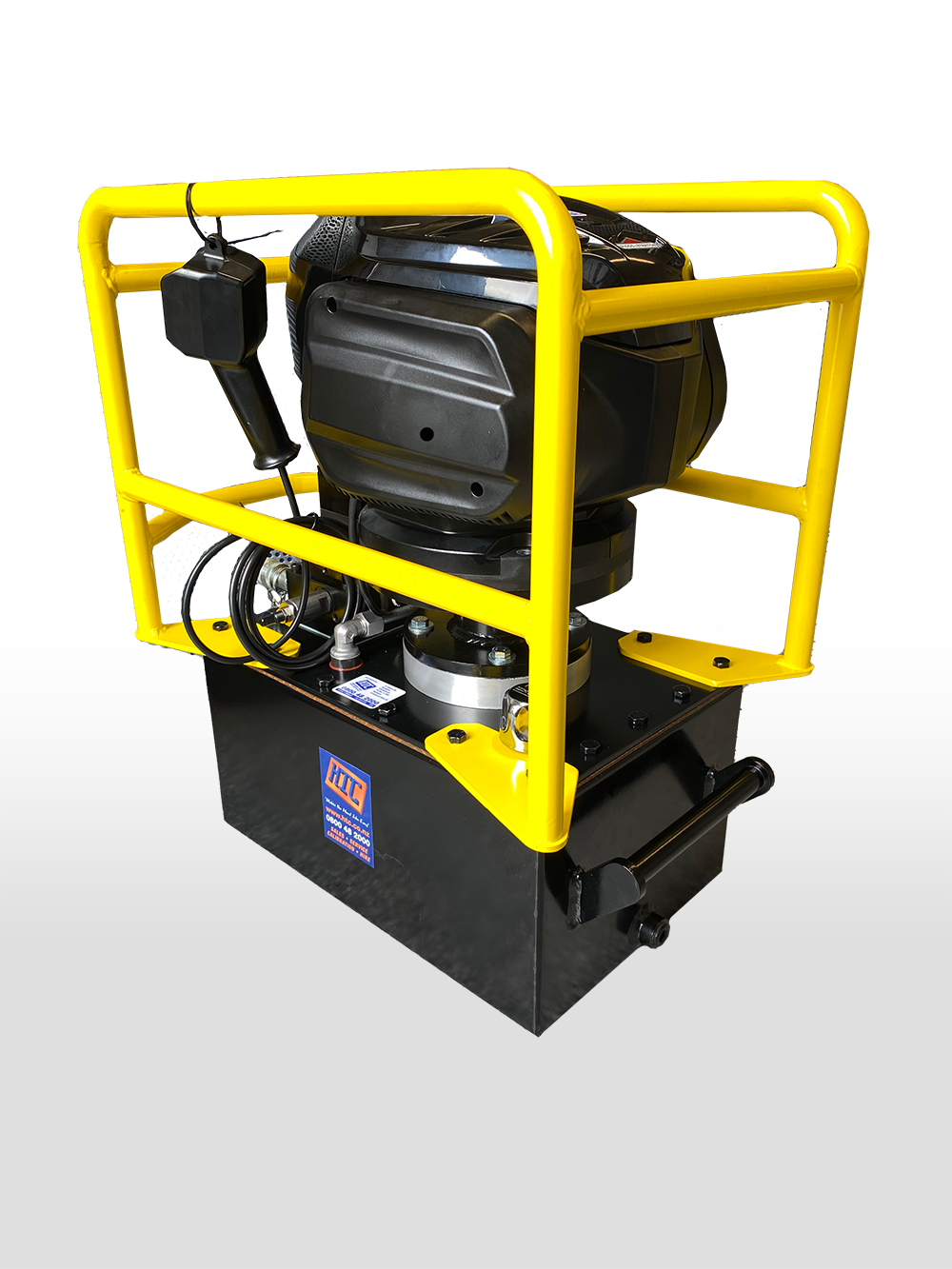

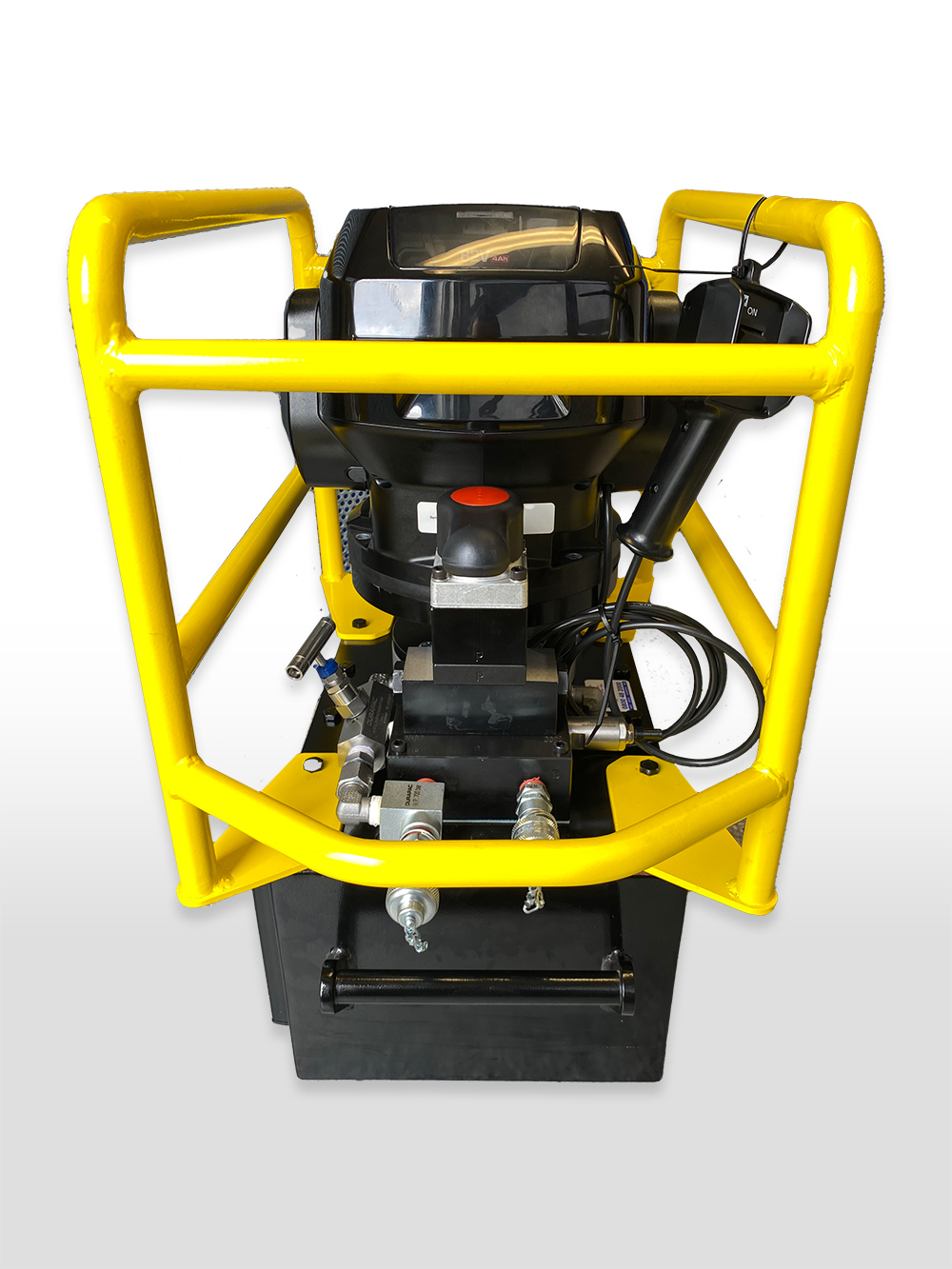

BPTS-85R30A Battery Powered Hydraulic Double Acting Rail Tensor Pump
This BPTS-85R30A Battery Powered Hydraulic Double Acting Rail Tensor Pump has been specifically set to operate our Geismar TH70 and TH120 Rail Tensor systems. These are commonly used by Kiwirail and many other Rail contractors worldwide.
HTC have designed this unit to withstand the rigours of the Rail Industry. Its control system with pre-set pressures, pressure holding, release valves and remote pendant switch. These will allow the user a high degree of control and safety during operation.
The 2 speed pump offers fast cycling times under low load conditions. Flow rates of 6.6 lpm @ 60 Bar, and 0.6 lpm @ 700 Bar – one of the top performers for Battery pumps of this type. The high volume reservoir ensures oil temperature is kept to a minimum while in use and helps maintain performance levels.
This Battery Powered Hydraulic Double Acting Rail Tensor Pump has been designed and manufactured here in NZ, with NZ conditions and usage in mind. We have erred on the side of caution and chosen to construct the unit in a more rugged fashion. This ensures it’s protection and to ensure a long lifespan.
More Information
- Pump: 2 Speed Radial Piston, 6.6 lpm @ 60 Bar, 0.6 lpm @ 700 Bar
- Reservoir: Alloy 15 Litre capacity (11 Litres useable)
- Control Valving: 3 position centre closed manual valve in conjunction with an integral pilot check valve on both ports.
- Pressure Settings: Retract Port @ 8500 psi Advance Port @ 3000 psi
- Special option: Needle Valve fitted to “A” Port for fine control of pressure release/Load lowering
- Couplers: Pioneer PC3000-2 series
- Motor: 1.5kW Brushless, wired pendant controller.
- Battery: 82V 4Ah Victa/Briggs & Stratton (Supplied separately)
