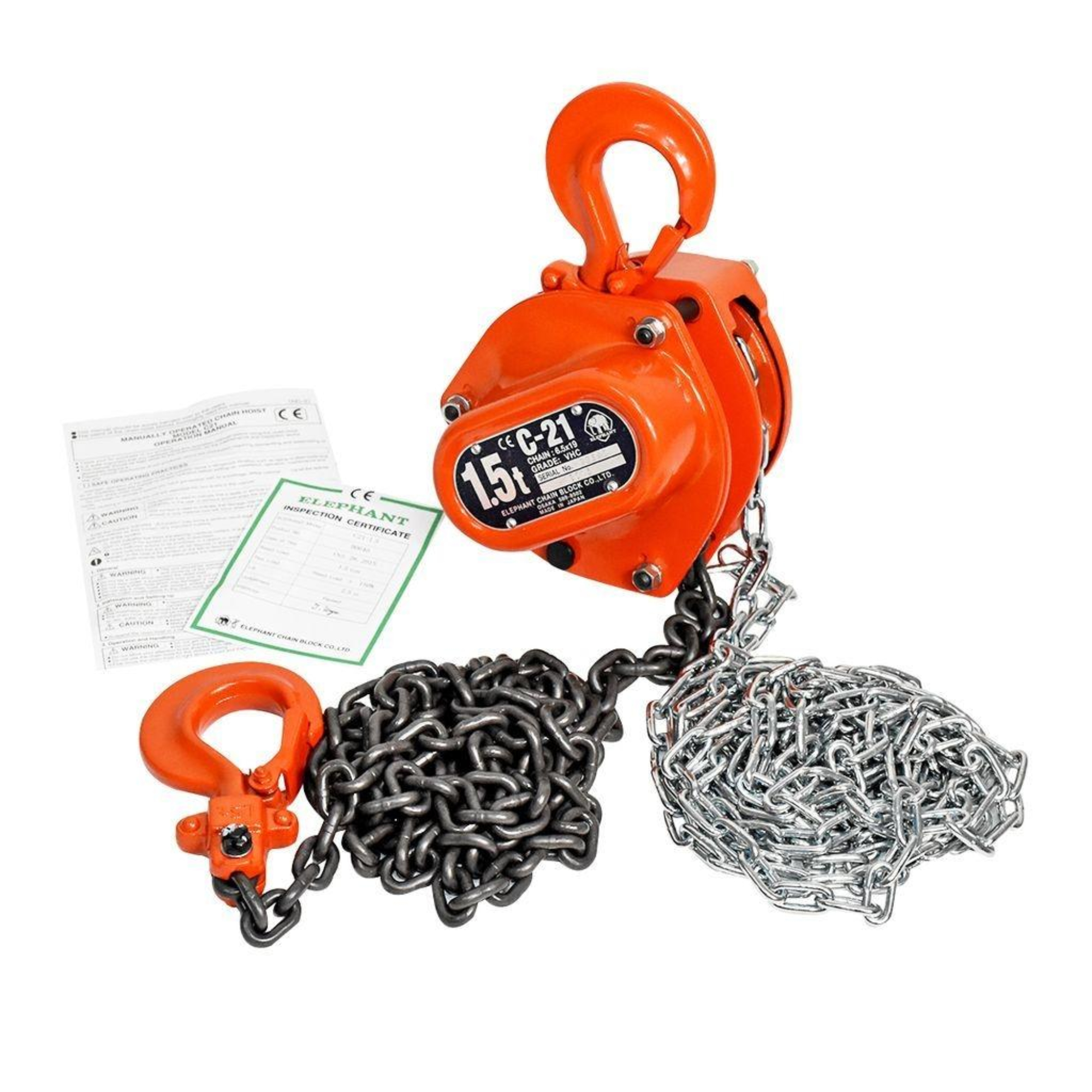

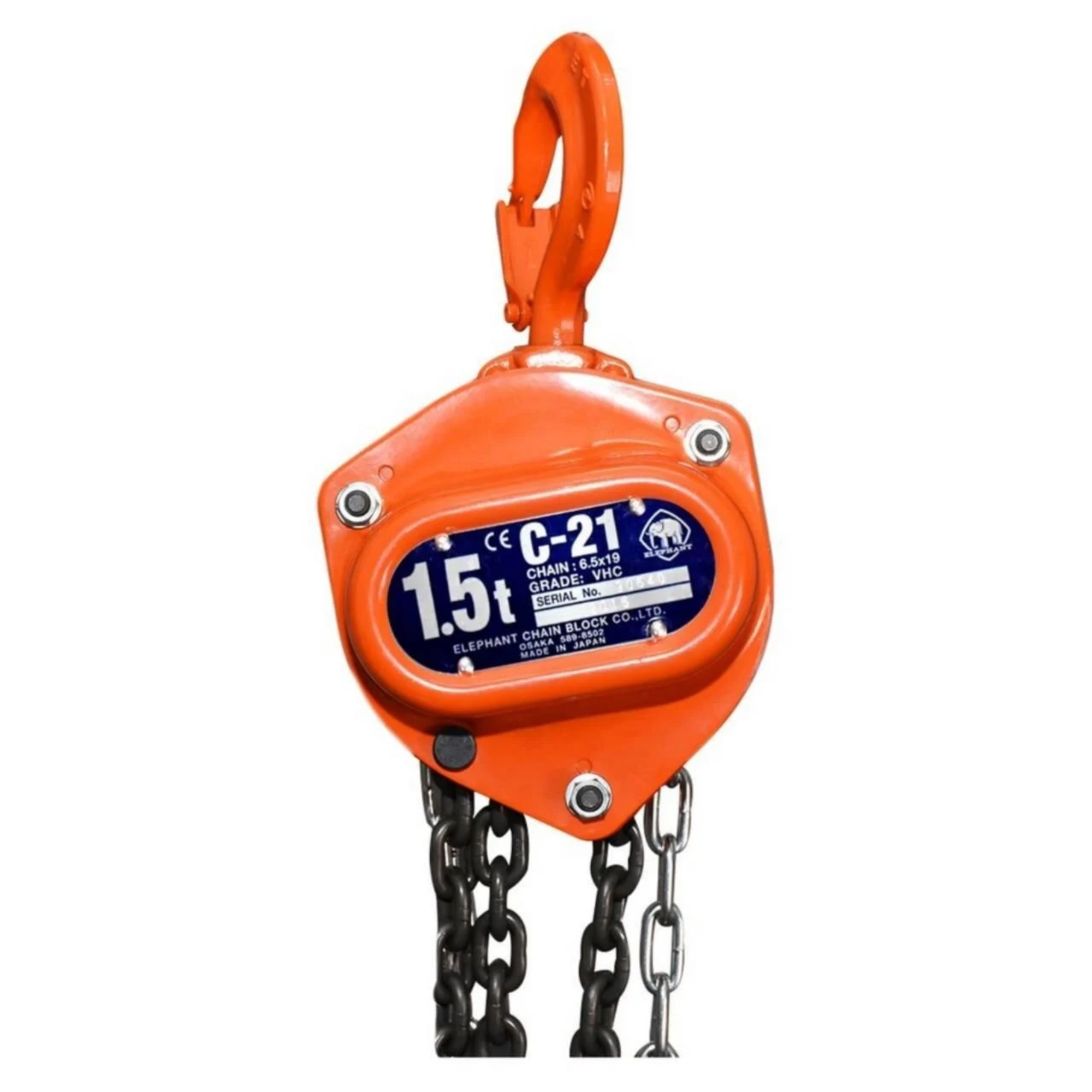

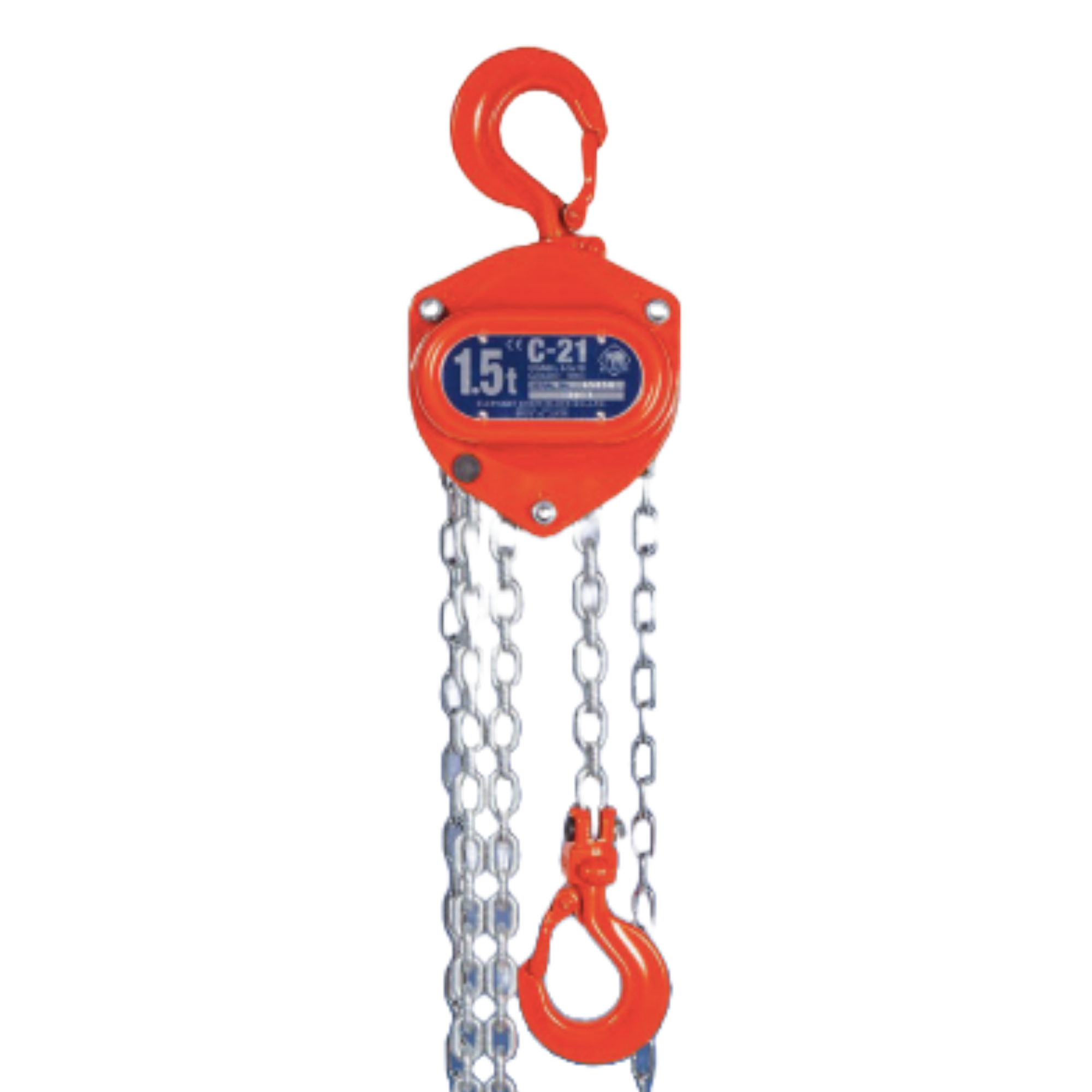

Elephant C21-1.5 Manual Chain Hoist
The C-21 Manual Chain Hoist is a lightweight and durable solution for lifting and moving heavy loads. It is a hand-operated hoist that can be attached to hooks, lugs, trolleys, or beam clamps, and can handle loads up to 5 tons. It has a galvanized load chain, a heavy duty frame, and long lasting friction discs. It also features safety mechanisms such as anti-drop plates, anti-tilt devices, and overload protection. The C-21 Manual Chain Hoist is suitable for various industries including construction, manufacturing, mining, and transportation.
More Information
- Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
- Zinc plated hand chain
- Heavy duty frame
- Lightweight lifting capacity ratio, a 1 ton unit with 10’ lift weighs 20% less than other Japanese hoists
- Long lasting friction discs
- Extremely wear resistant
- Load chain, hooks, and braking parts have a safety factor of 4+ times. 0.5t ~ 1t units have a safety factor of 5+ times.
- Durable powder coat finish
- Suitable for operation within a -20o to +130o C,  -4 to +266o F temperature range
|
Model
|
C21-1.5
|
|
|
Capacity ( ton )
|
1.5
|
|
|
Standard lift ( m )
|
2.5
|
|
|
Manufacturer’s test load ( ton )
|
2.25
|
|
|
Headroom ( mm )
|
340
|
|
|
Length of load chain lifted
by pulling hand chain 1m ( mm ) |
16
|
|
|
Hand effort to lift full working load ( N ) ( kg )
|
324 ( 33 )
|
|
|
Load chain
|
Dia. x pitch ( mm ) x ( mm )
|
6.5 X 19
|
|
No. of falls
|
1
|
|
|
Grade of chain
|
V
|
|
|
Hand chain
|
Dia. x pitch ( mm ) x ( mm )
|
4.5 X 23
|
|
Net weight ( kg )
|
11.7
|
|
