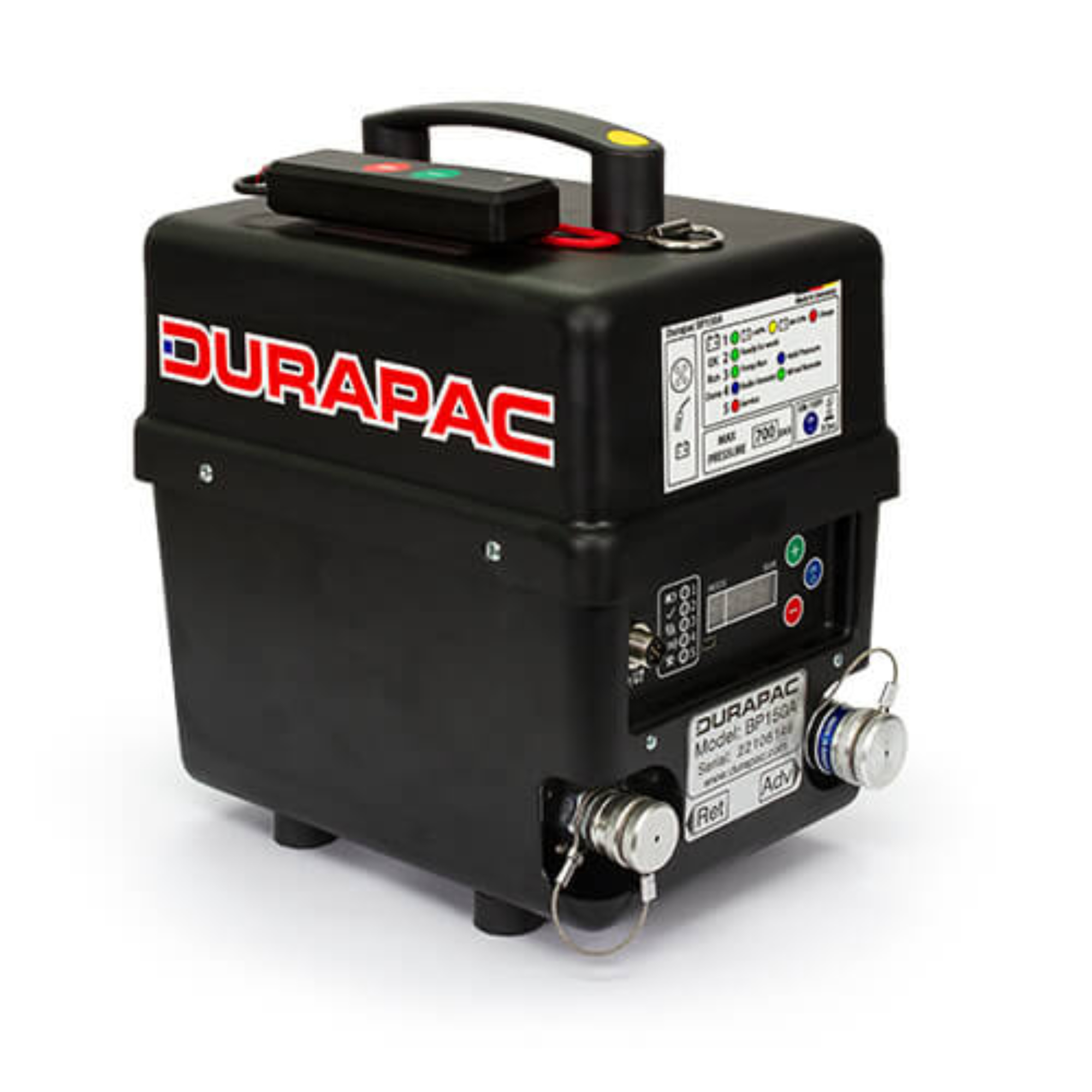

Durapac BP150A Battery Hydraulic Pump

The BP150A Battery Hydraulic Power Unit boasts a robust 50.4 VDC lithium-ion internal battery with high capacity. Equipped with a wireless remote control, each unit can power a variety of 700 bar hydraulic tools and cylinders, whether single or double acting.

Categories: , Brand:

More Information

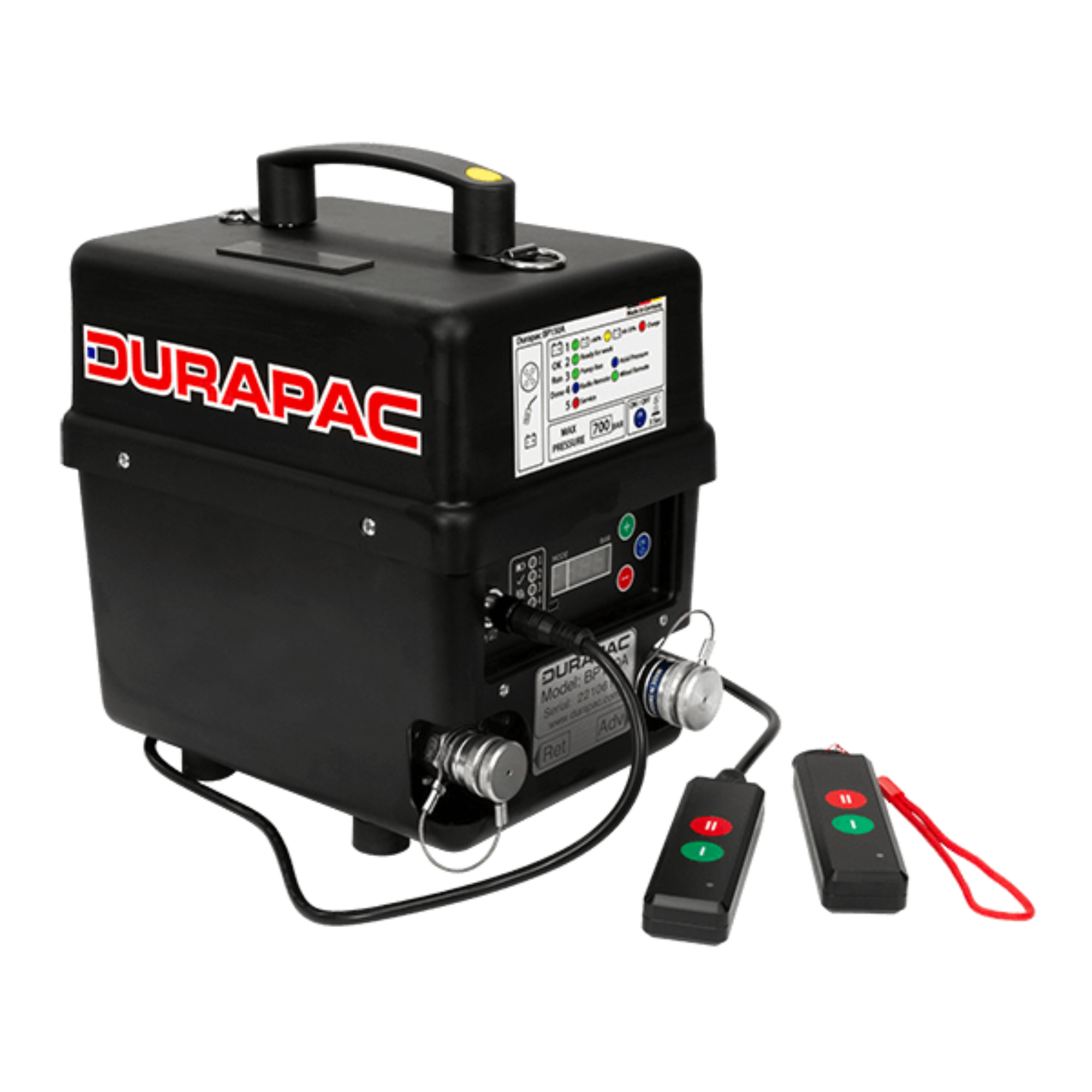

Bluetooth Wireless Control:
Each unit comes with a Bluetooth-enabled wireless remote control, alongside a wired remote control for added convenience.

High-Powered:
Equipped with an internally fitted 50.4 VDC, 7,830 mAh lithium-ion battery, ensuring optimal power and efficiency.

Digital Display:
Features an onboard digital display that indicates pump mode and pressure for easy monitoring.

Safety Pressure:
Enhanced safety features include electronic and mechanical pressure safety valves, allowing users to easily adjust pressure settings as needed.

Fast Charge:

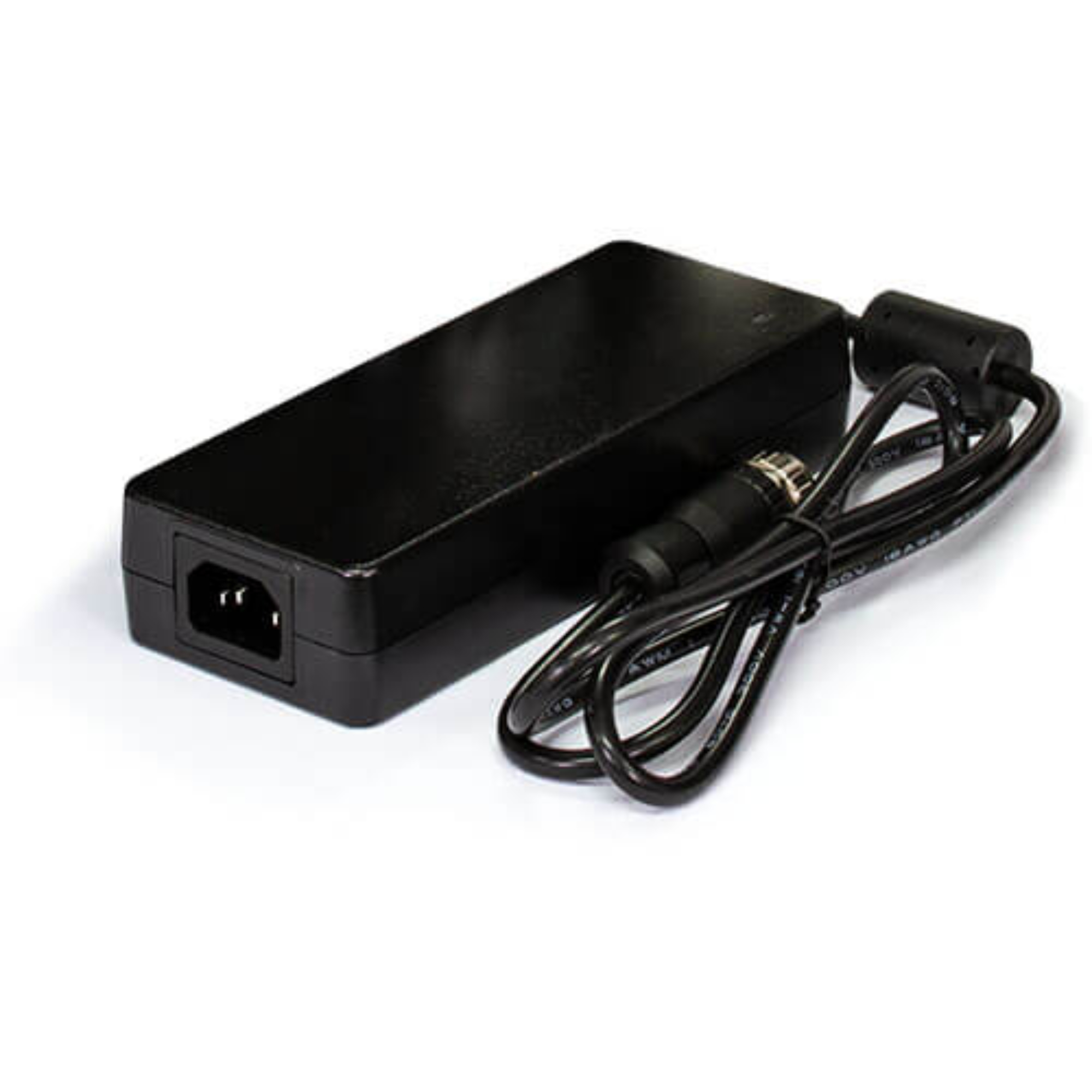

Comes with a 110/230 Volt plug-in external charger for quick and convenient charging of the unit.

Durable Design:

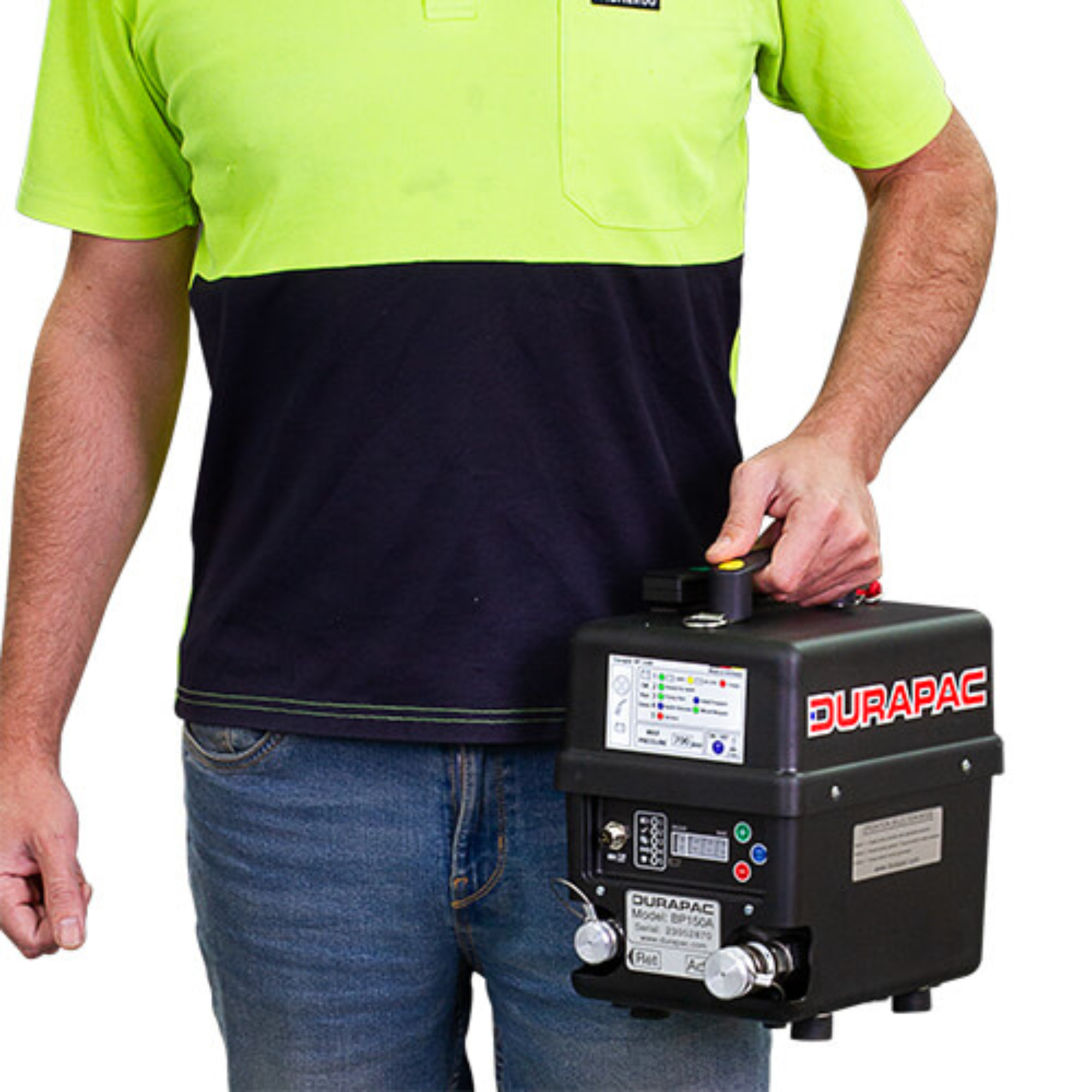

Built with a rugged and heavy-duty plastic housing featuring a carry handle for portability. Hydraulic coupling, control buttons, and plug connectors are well-protected for longevity and reliability.



Pump Type Single-stage three-cylinder radial piston pump
Pump Outputs / Inputs 2 / 2
Oil Flow 0.97 – 1.99 L / min. (nominal)
Max. Oil Volume (approx.) 1,400 cc
Usable Oil Volume (approx.) 1,000 cc
Maximum Pressure 700 bar
Oil Type Durapac Hydraulic Oil (DHO-10L)
Drive DC motor 48 Volts (max. 58 V)
Motor Peak Power 4,000 Watts
Battery Capacity 7,830 mAh
Dimensions W x L x H (approx.) 185 x 250 x 270 mm
Weight (approx.) 9 kg
Power Supply Unit primarily 230 V ~, secondary 24 V, 5 A
Max. Operating Conditions -20 ° C to + 40 ° C
Environmental Conditions 0 to 100% rel. humidity
Degree of Protection According to EN 60529 IP23
Operating Mode Intermittent Operation 30% ED
