DURAPAC complete manifold 700 BAR working pressure
The VMN-Series Needle Valve Manifold with Transport Frame is specifically crafted for utilization with 700 bar hand pumps and power units. It provides a practical answer for controlling numerous cylinders using only one input source.
Category: Hydraulic Hoses, Manifolds, Couplers and Gauges
Brand: Durapac
More Information
- Robust Frame: Provides convenience for transportation and mechanical protection of critical components.
- Powder Coated Finish: The powder coated finish enhances appearance and reduces corrosion.
- Components: Components are standard Durapac manifolds, gauges and accessories.
- Spare Parts: Spare parts are available from Durapac stockists.
- Couplings: Standard couplings are CR-6 high flow screw couplings. Other styles are available on request.
- 700 Bar Working Pressure: 700 bar working pressure is compatible with all commonly available 700 bar systems.
Model No.
|
Type
|
Description
|
---|---|---|

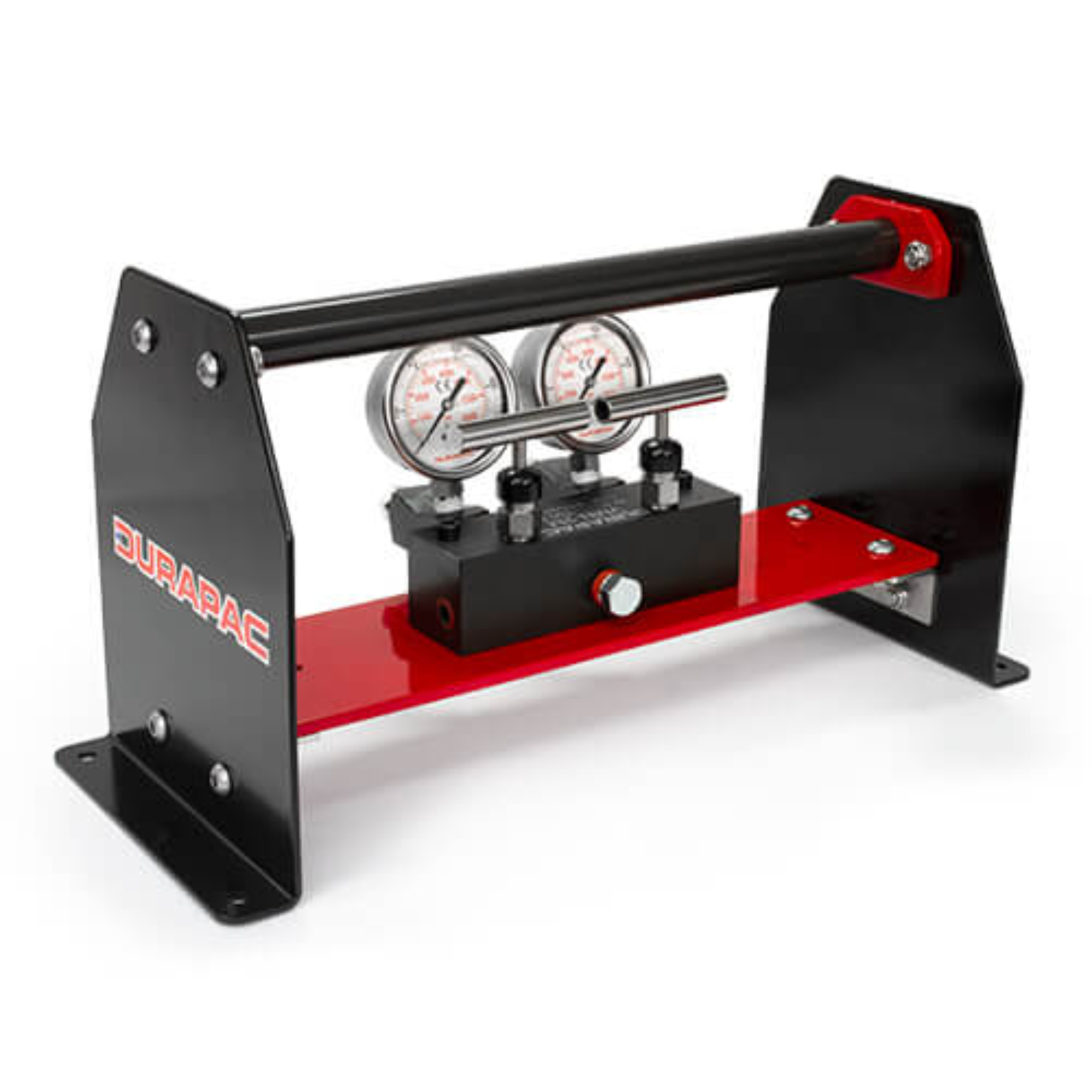

VMN-2M-GF | Valved Manifold |
2 way steel bodied manifold with needle valves 2 x 3/8”-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 2 outlet ports) |

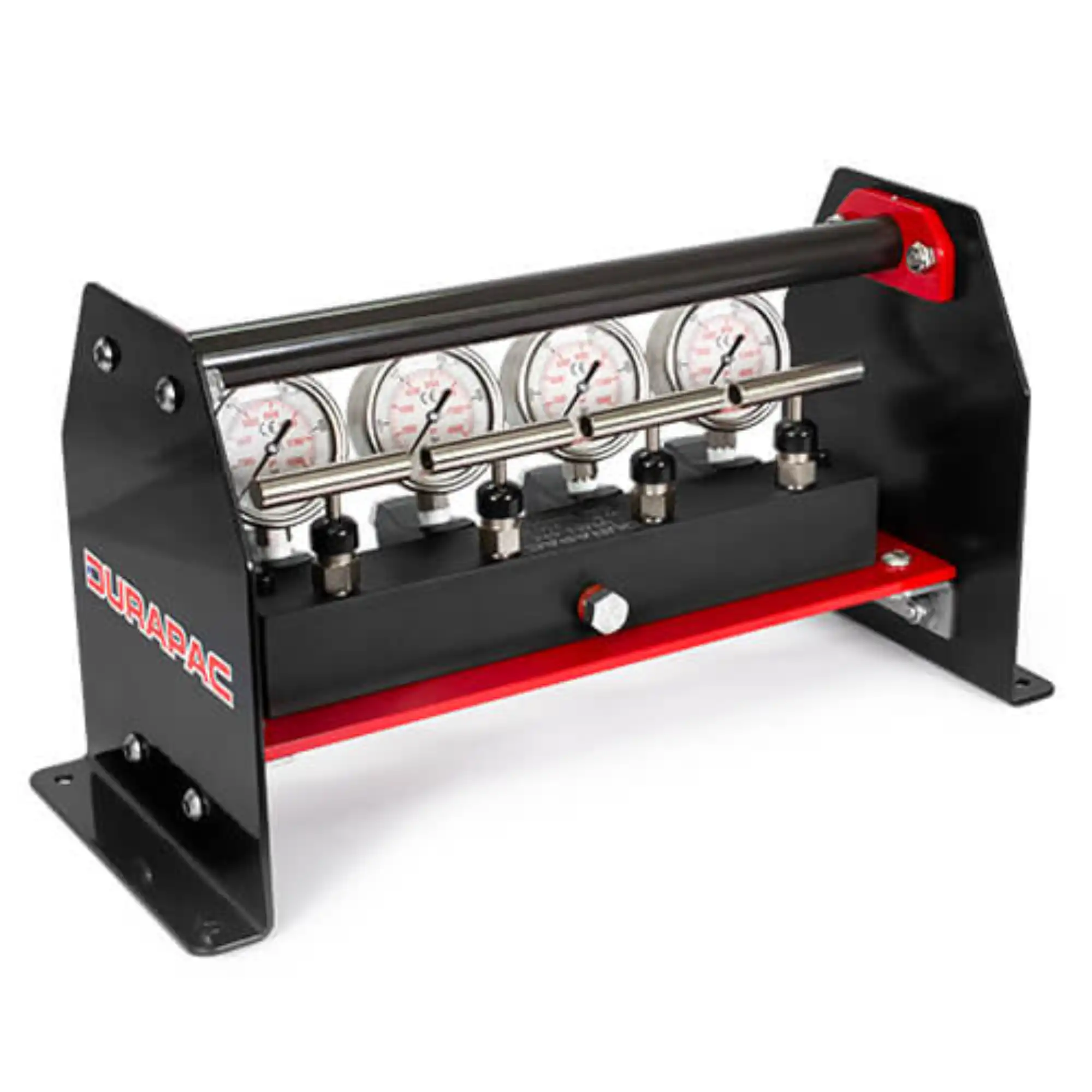

VMN-4M-GF | Valved Manifold |
4 way steel bodied manifold with needle valves 4 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 4 outlet ports) |
VMN-6M-GF | Valved Manifold |
6 way steel bodied manifold with needle valves 6 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 6 outlet ports) |

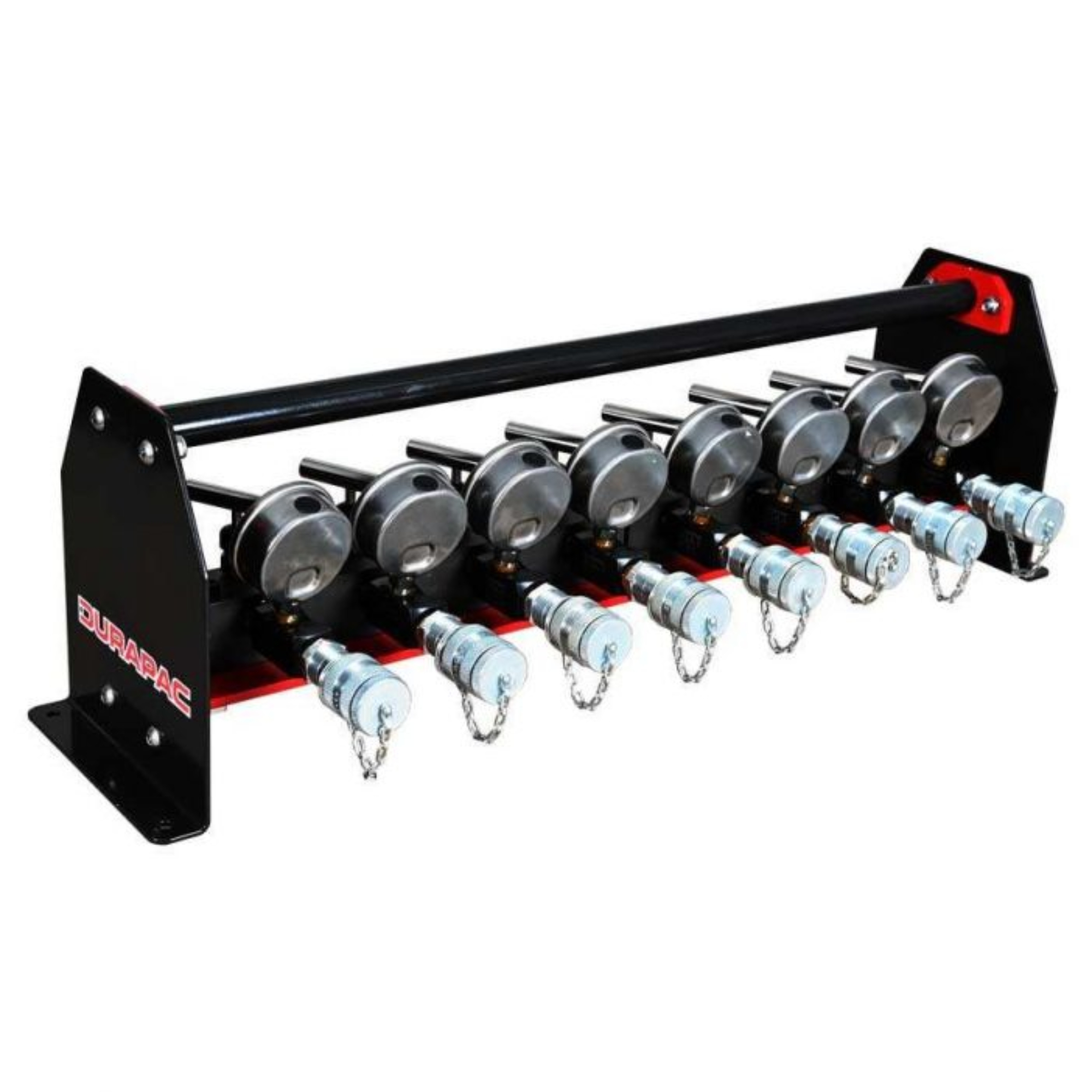

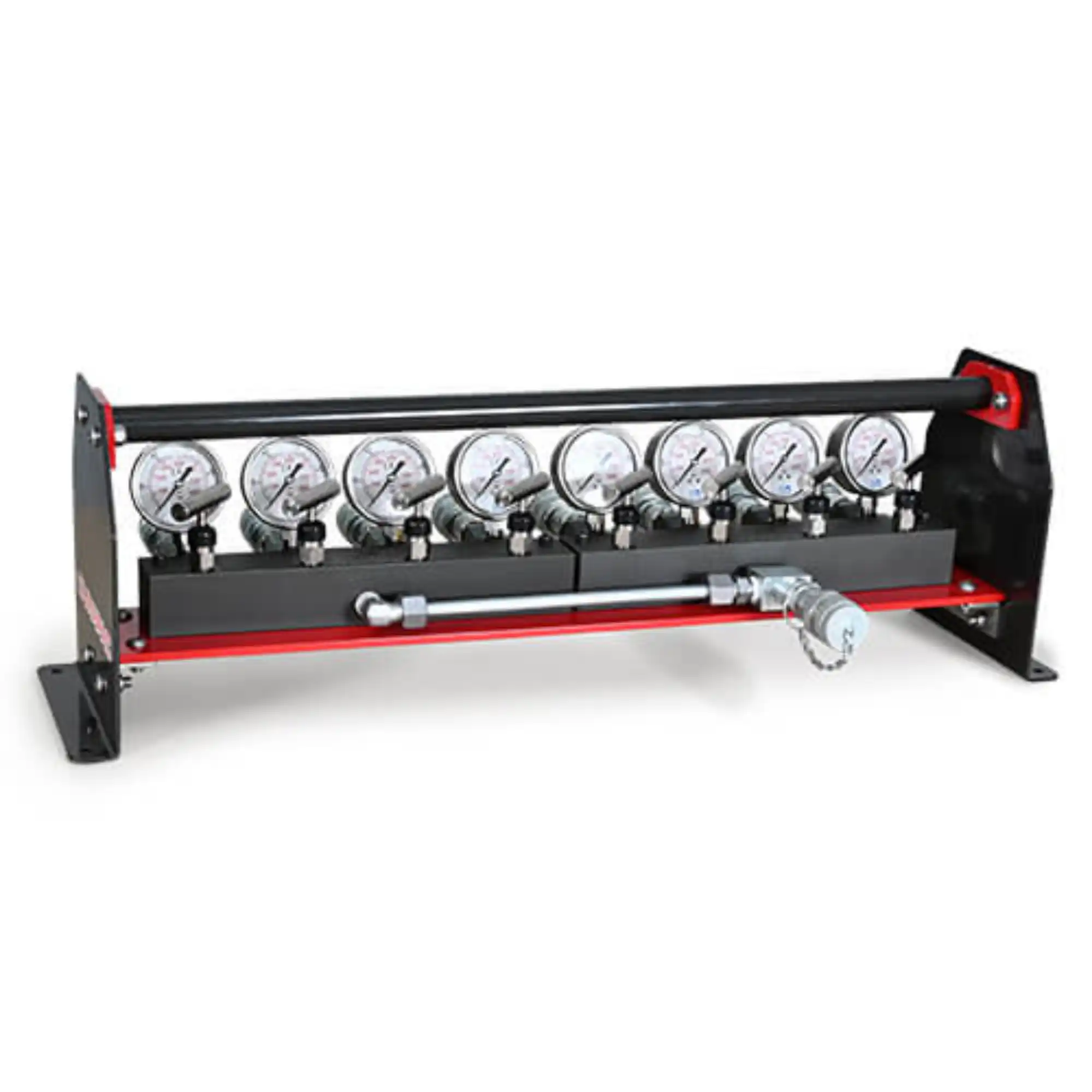

VMN-8M-GF | Valved Manifold |
8 way steel bodied manifold with needle valves 8 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 8 outlet ports) |
Gauge Adaptor & Gauge included with each model
Model No.
|
Type
|
Description
|
---|---|---|
FGA-1 | Gauge Adaptor | 3/8″-NPT male x 3/8″-NPT female x 1/4″-NPT female gauge adaptor on angle |
PG-63 | Gauge | 63 mm diam. 0-1,000 bar / 0-14,500 psi 1/4″-NPT Male |
