Durapac DBJ Standard Hydraulic Bottle Jacks (Manual)

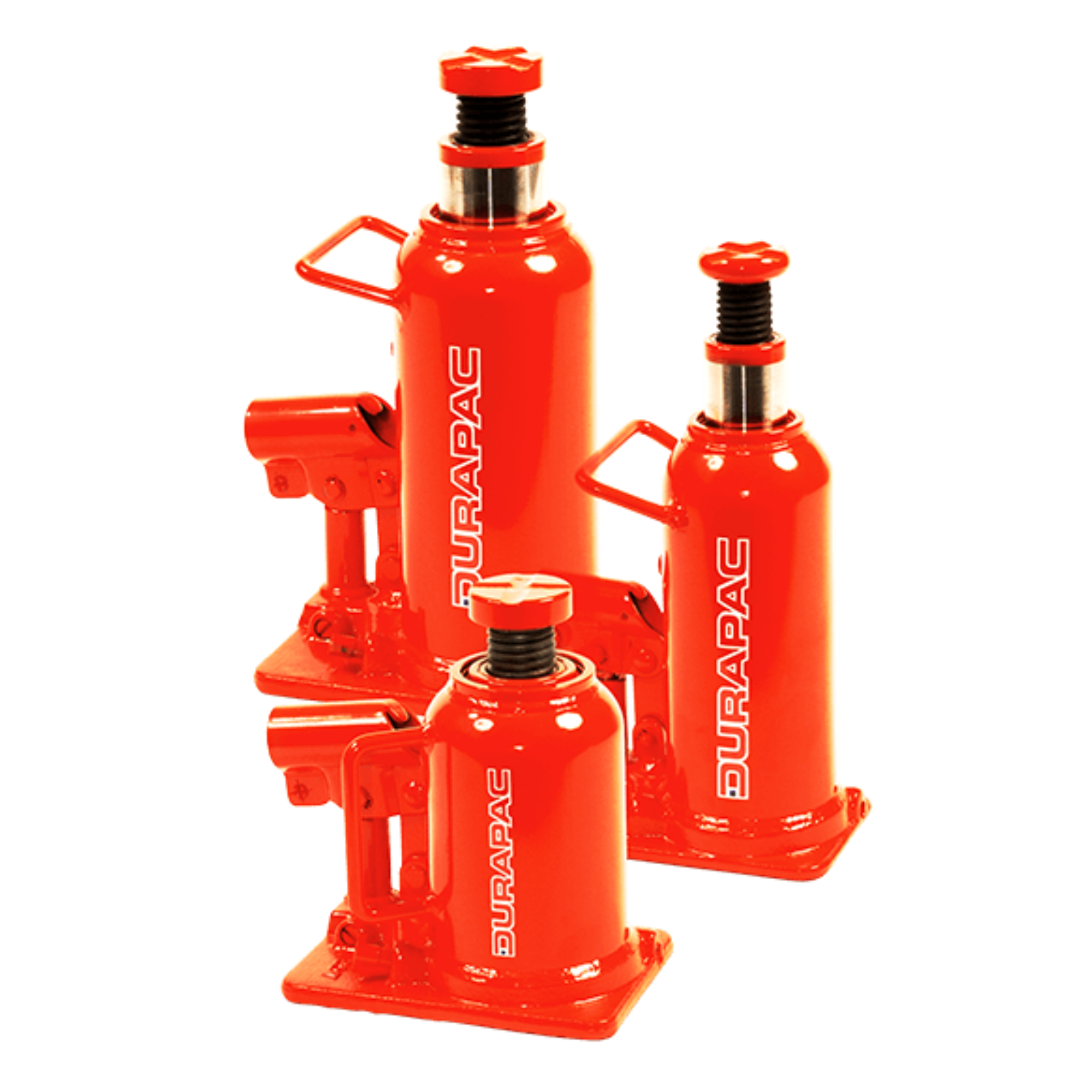

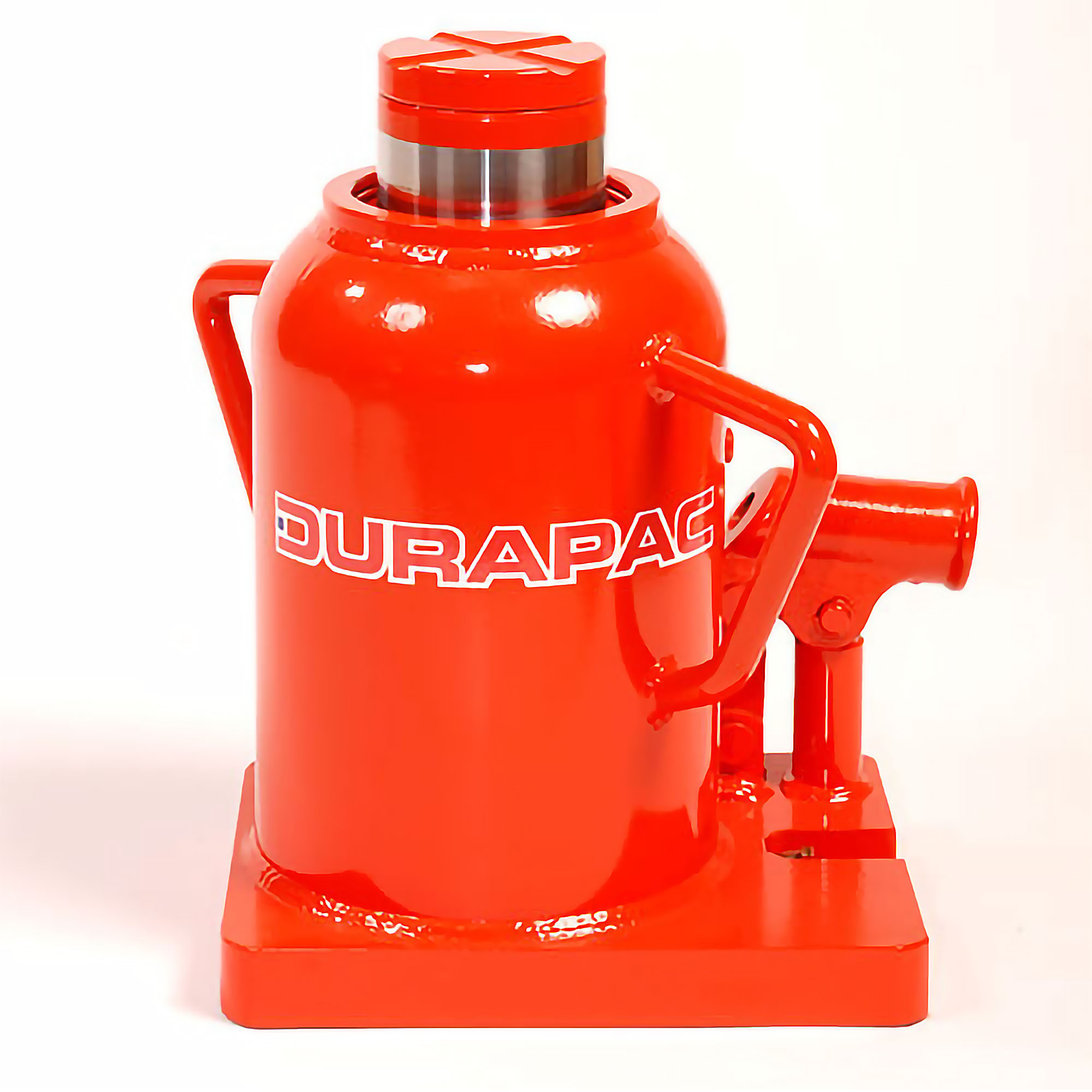

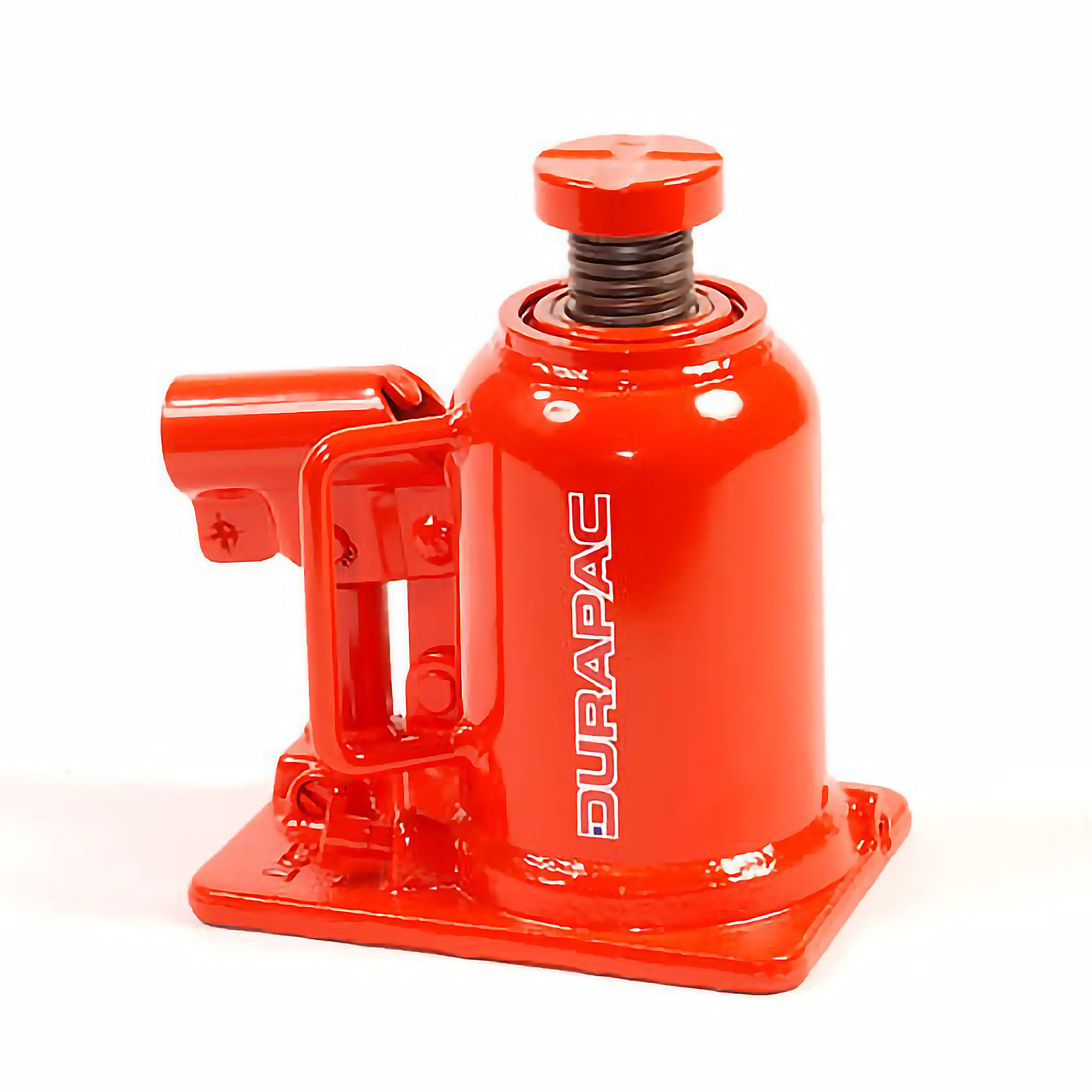

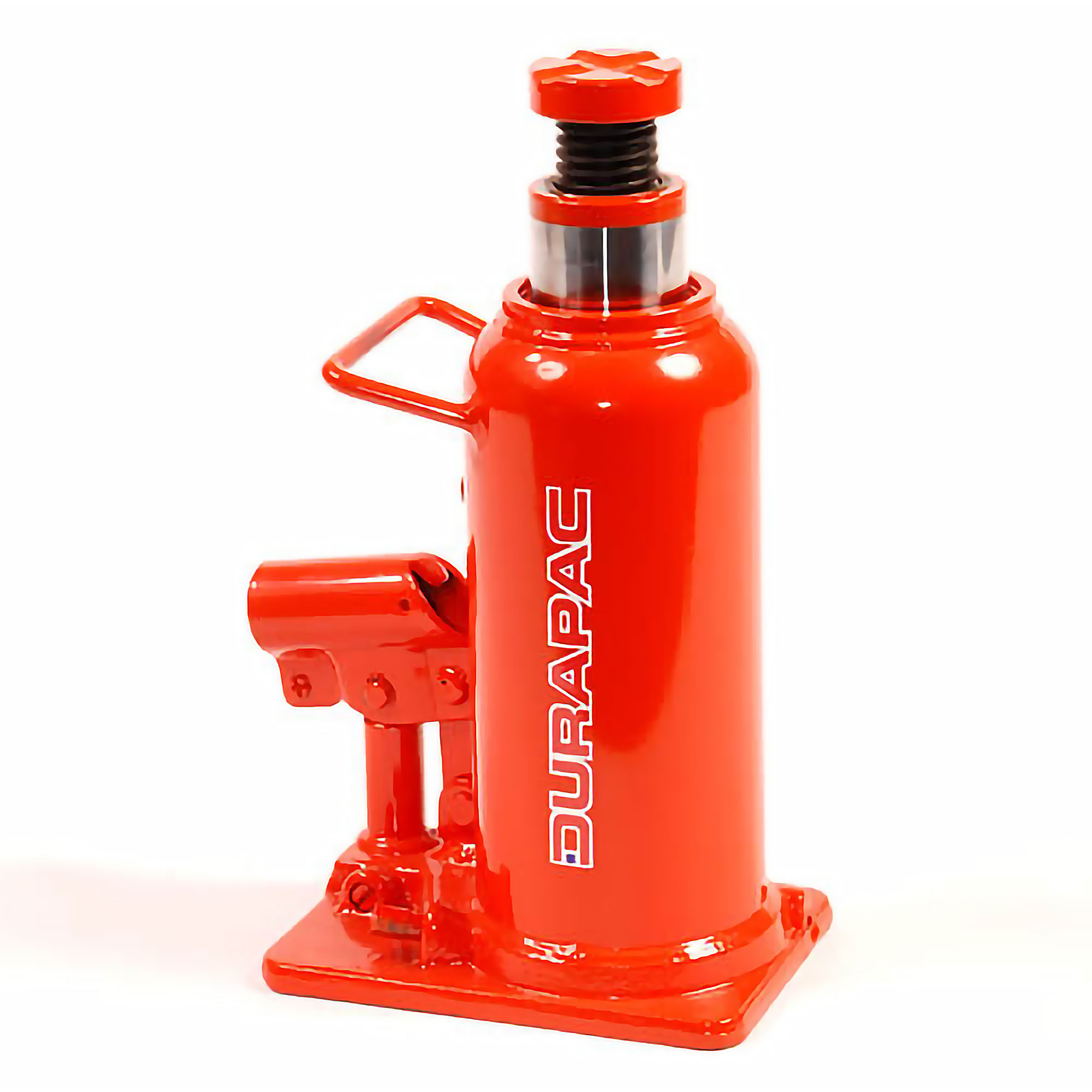

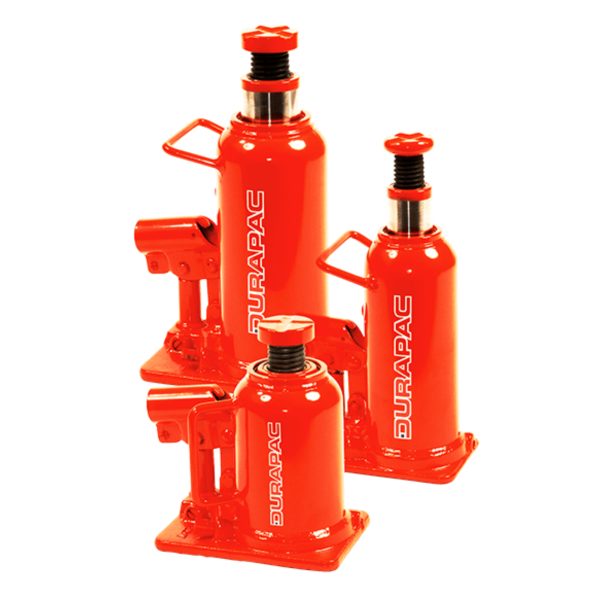

The DBJ-Series Bottle Jacks represent a top-tier selection tailored perfectly for a wide array of industrial lifting and pushing tasks. Ranging from 10 to 20 tons, these models include an added screw extension, and the majority are versatile for use in both vertical and horizontal orientations.
Additional Information
More Information
Horizontal Operation: 10 and 20 ton models (except DBJ-20A) can be operated horizontally. Hydraulic stroke will be reduced to approximately 2/3.
Carbon Steel Base: A carbon steel base is welded to ensure increased resistance to high pressure and provide greater durability.
Ease Of Use: All jacks have been designed for ease of use and handling.
Internal Stroke Limiter: The internal stroke limiter prevents piston rod over-extension.
Chrome Plated: The chrome plated steel piston rod resists-corrosion and extends jack life.

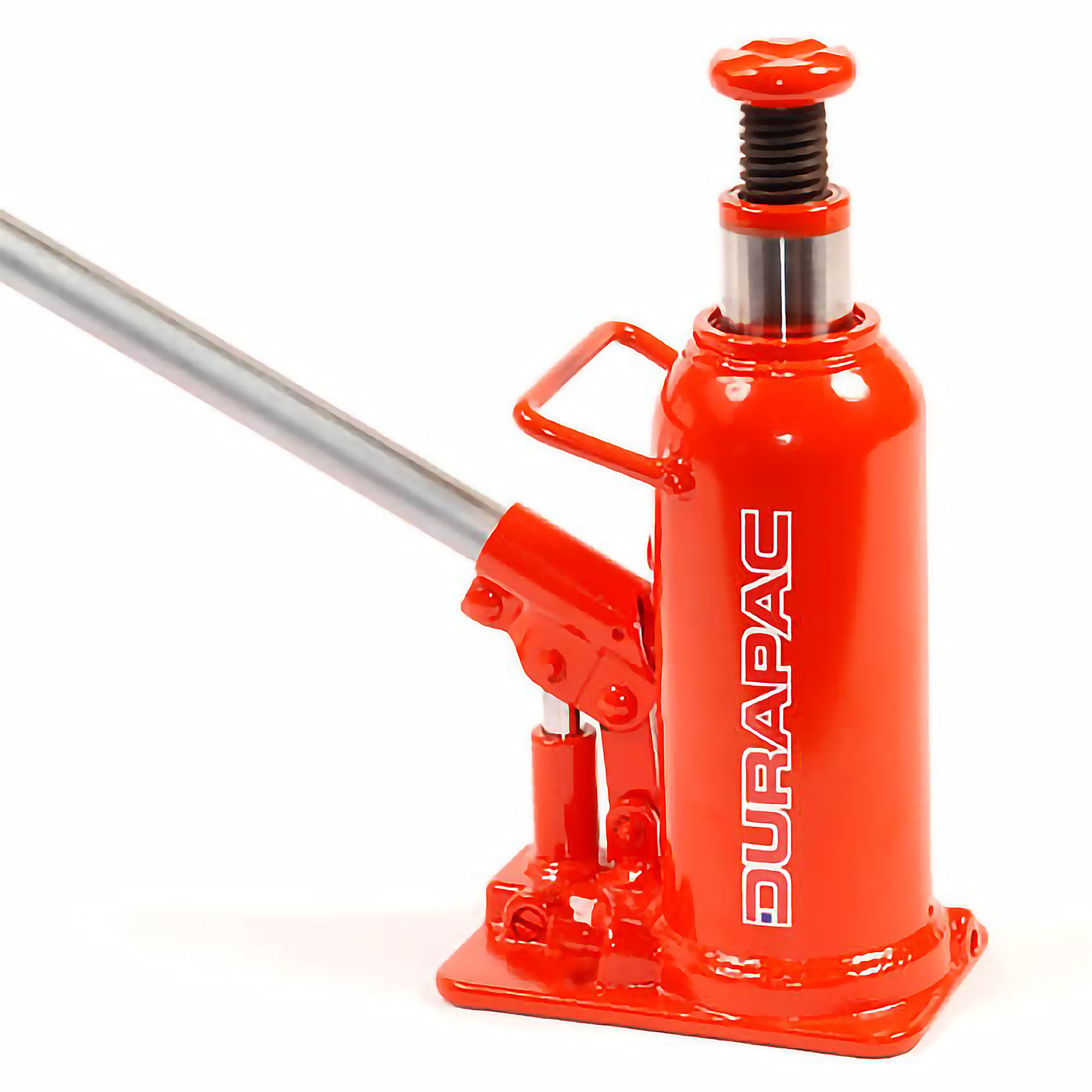

Operating Handle: An operating handle is included with all models.
|
Model Number
|
Operation
|
Capacity (ton)
|
Stroke (mm)
|
Collapsed Height (mm)
|
Extended Height (mm)
|
Piston Rod Diameter (mm)
|
Base Dimensions L x W (mm)
|
Screw Extension & Saddle Set Auxiliary Height (mm)
|
Air Pressure Range (kgf/cm2)
|
Weight (kg)
|
Model Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| DBJ-10 | Manual | 10 | 147 | 240 | 387 | 42 | 105 x 166 | 85 | – | 8.2 | DBJ-10 |
| DBJ-10S | Manual | 10 | 95 | 170 | 265 | 42 | 105 x 166 | 55 | – | 6.4 | DBJ-10S |
| DBJ-20 | Manual | 20 | 152 | 265 | 417 | 55 | 128 x 181 | 85 | – | 13.3 | DBJ-20 |
| DBJ-20S | Manual | 20 | 85 | 187 | 272 | 55 | 128 x 181 | 55 | – | 10.0 | DBJ-20S |
| DBJ-20A | Air/Manual | 20 | 150 | 235 | 385 | 50 | 128 x 238 | 16, 45, 80 | 8-12 | 14.5 | DBJ-20A |
| DBJ-30 | Manual | 30 | 155 | 282 | 437 | 62 | 142 x 197 | – | – | 19.6 | DBJ-30 |
| DBJ-30S | Manual | 30 | 80 | 182 | 262 | 62 | 142 x 197 | – | – | 13.8 | DBJ-30S |
| DBJ-50 | Manual | 50 | 155 | 305 | 460 | 85 | 200 x 260 | – | – | 42.3 | DBJ-50 |
