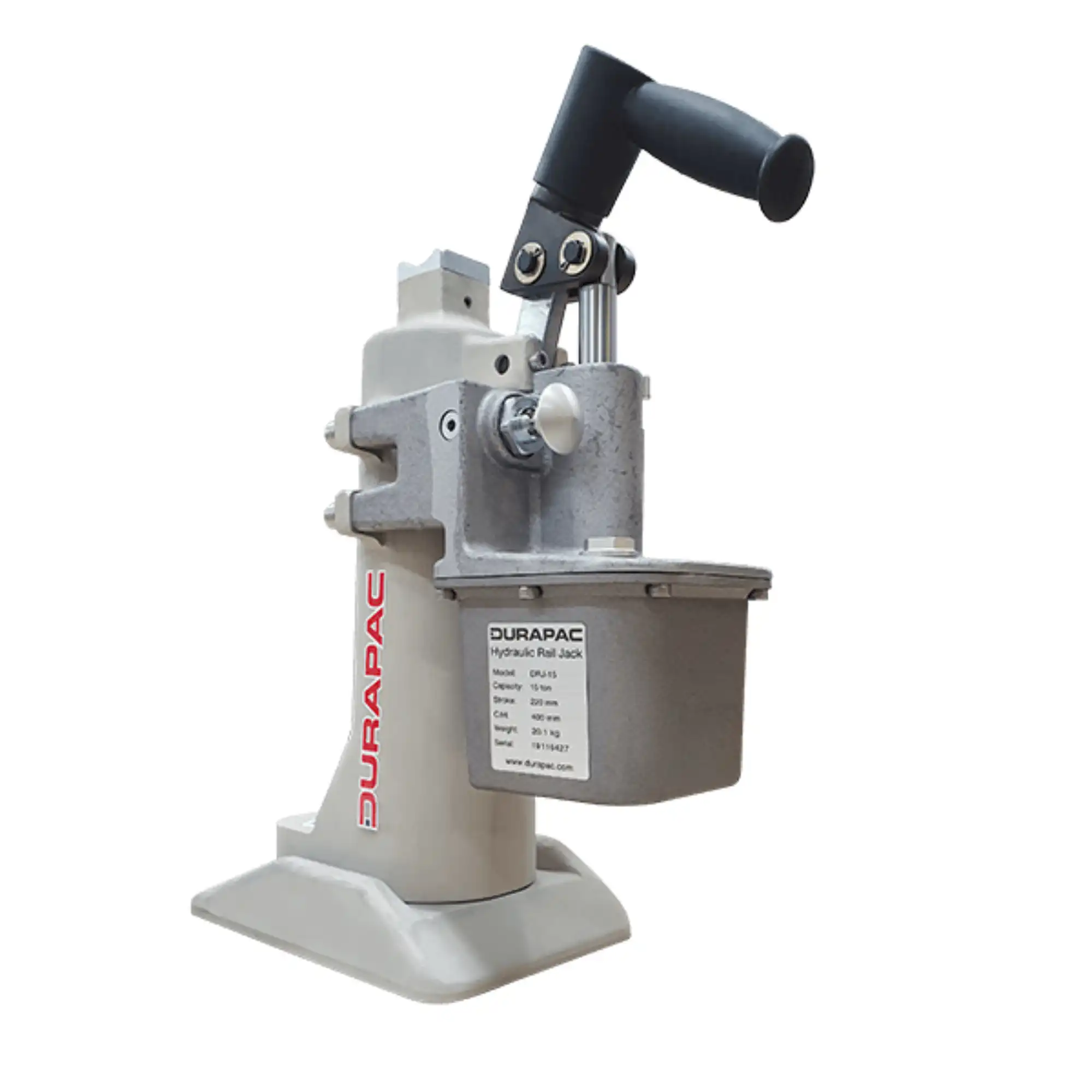

Durapac DRJ-15 Hydraulic Track Jack
The DRJ-15 Track Jack is perfectly suited for aligning, gauging, and lifting rail or sleepers. Crafted with a forged aluminum base and housing, this jack boasts a 15-ton capacity, ensuring robustness while remaining lightweight to minimize the risk of operator injury. Its spring return mechanism enables effortless retraction to the initial position even when unloaded. Equipped with an internal safety pressure relief valve, it guards against overloading, while its quick-release button facilitates swift retraction. Thanks to its bladder system within the protected aluminum reservoir, the jack can be utilized horizontally or vertically, enhancing its versatility.
Additional Information
More Information
Specifications
Model No. | DRJ-15 | |
Jack Capacity (ton) | 15 | |
Collapsed Height (mm) | 400 | |
Extended Height (mm) | 620 | |
Stroke (mm) | 220 | |
Travel/Pump Stroke (mm) | 4.1 | |
Max Handle Effort (kg) | 36 | |
L x W x H Dimensions (mm) | Base | 250 x 160 x 53 |
Toe | 64 x 95 x 60 | |
Unit Weight w/o Handle (kg) | 20.1 |
Product Features
- Capacity: 15 ton
- Stroke: 220 mm
