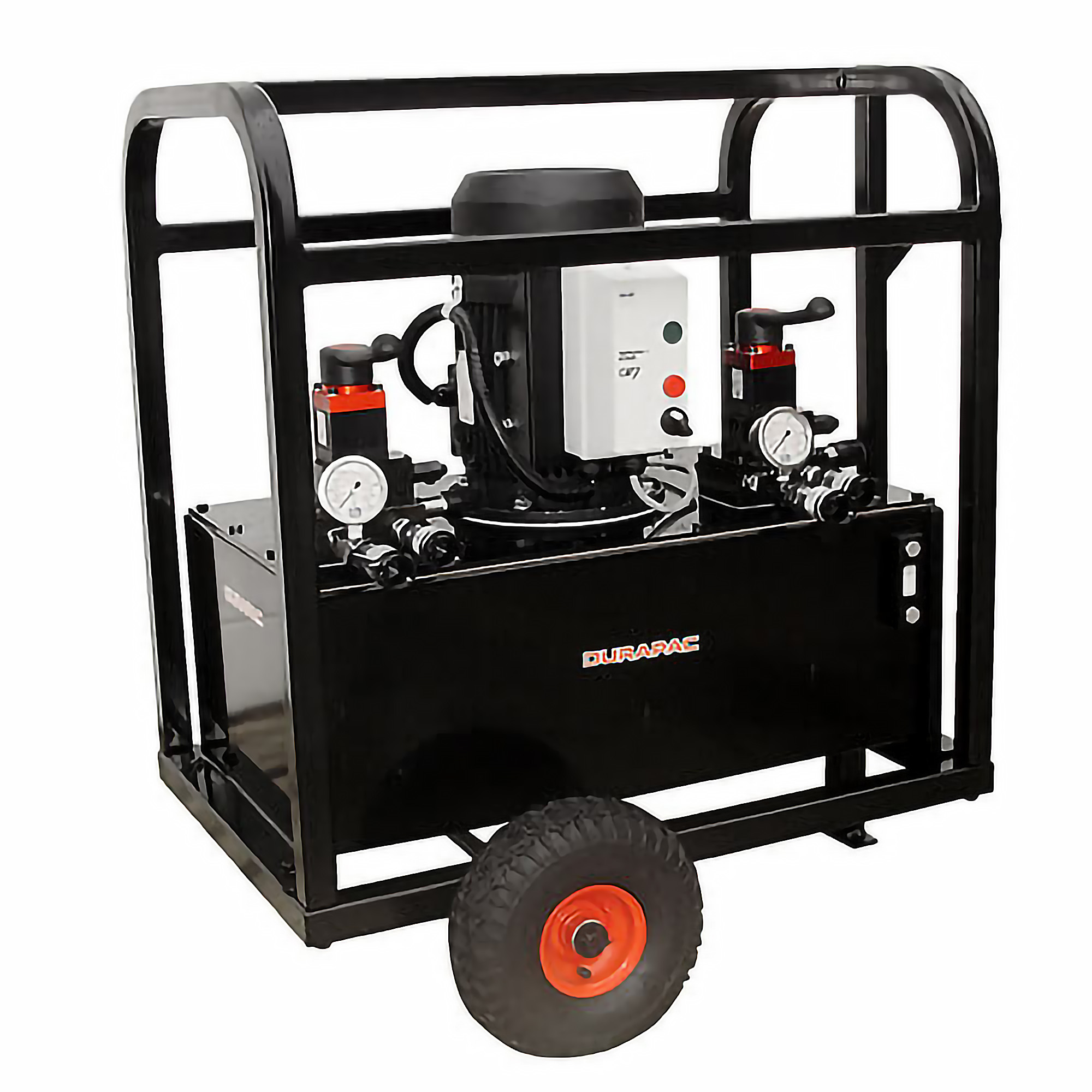

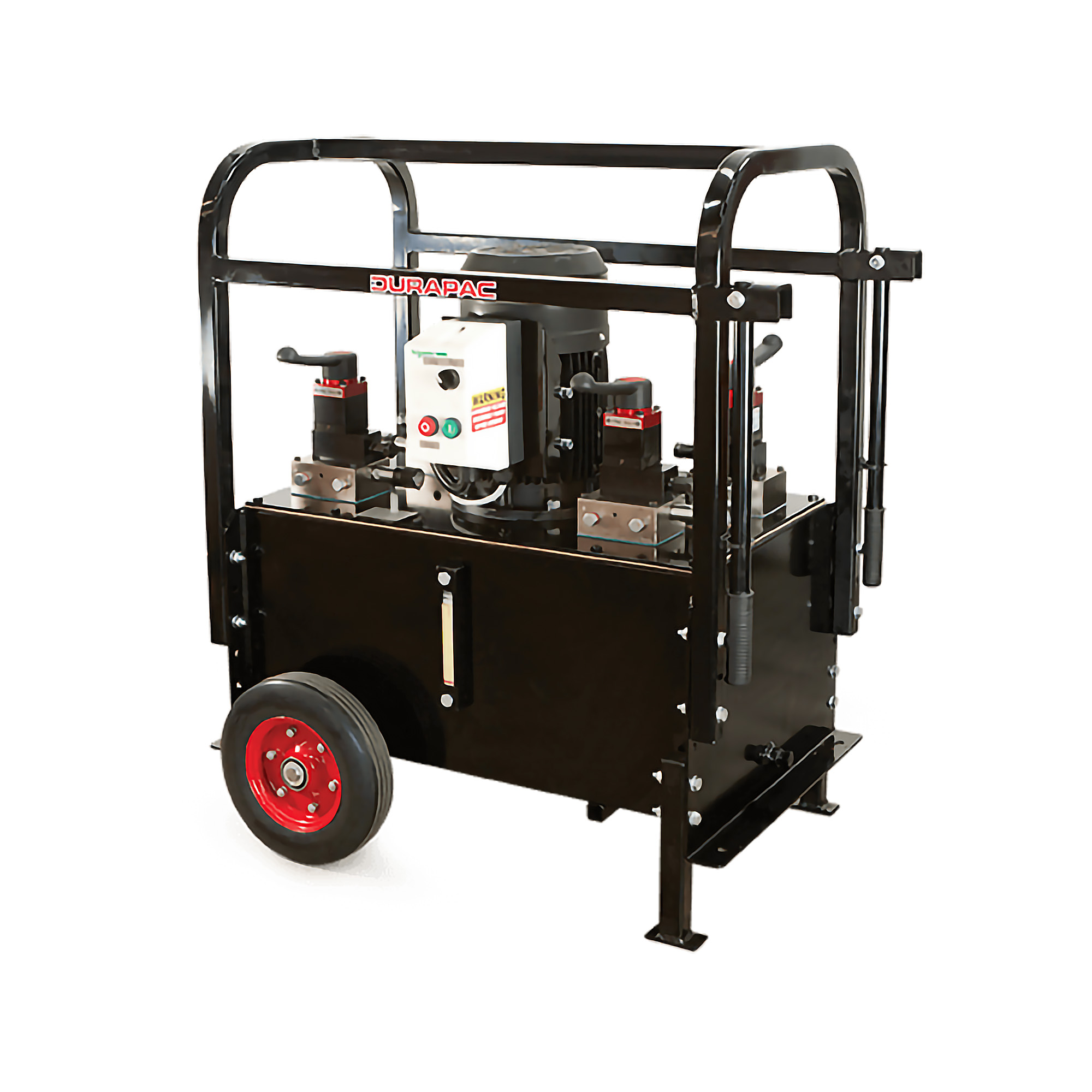

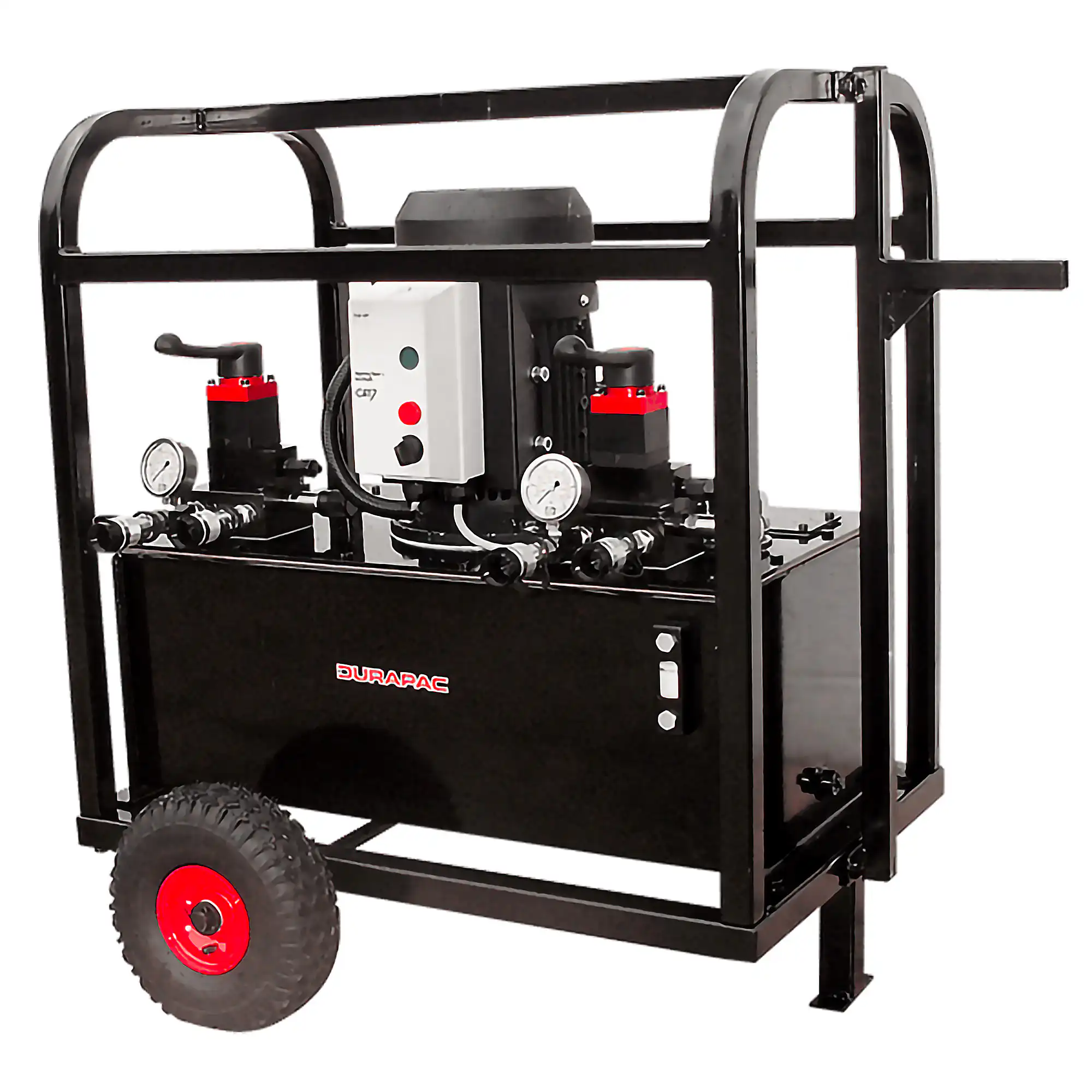

Durapac PEMS Series Electric Split Flow Pumps
The Durapac PEMS Series electric hydraulic split flow power units feature 2 or 4 separate hydraulic circuits.
Each piston feeds an independent circuit with equal flow regardless of the weight distribution on each outlet.
Each circuit is fitted with a directional control valve for operating single and double acting cylinders.
Additional Information
More Information
- Perfect Power
Power units have either a 4.0 kW or 7.5 kW 415 Volt, 50 Hz, 3 phase electric motor. - Safety Pressure
Power units have a 700 bar safety pressure relief valve on each circuit. - Adjustable Pressure
An externally adjustable pressure relief valve is included on each circuit. - Synchronised Flow
Each circuit delivers the same flow rate regardless of weight distribution. - Directional Control Valve
Each circuit has a 4 way, 3 position manual directional control valve and can be used with single and double acting cylinders. - Medium to Large Tonnage
Ideal for operating medium to large tonnage cylinders and systems.
