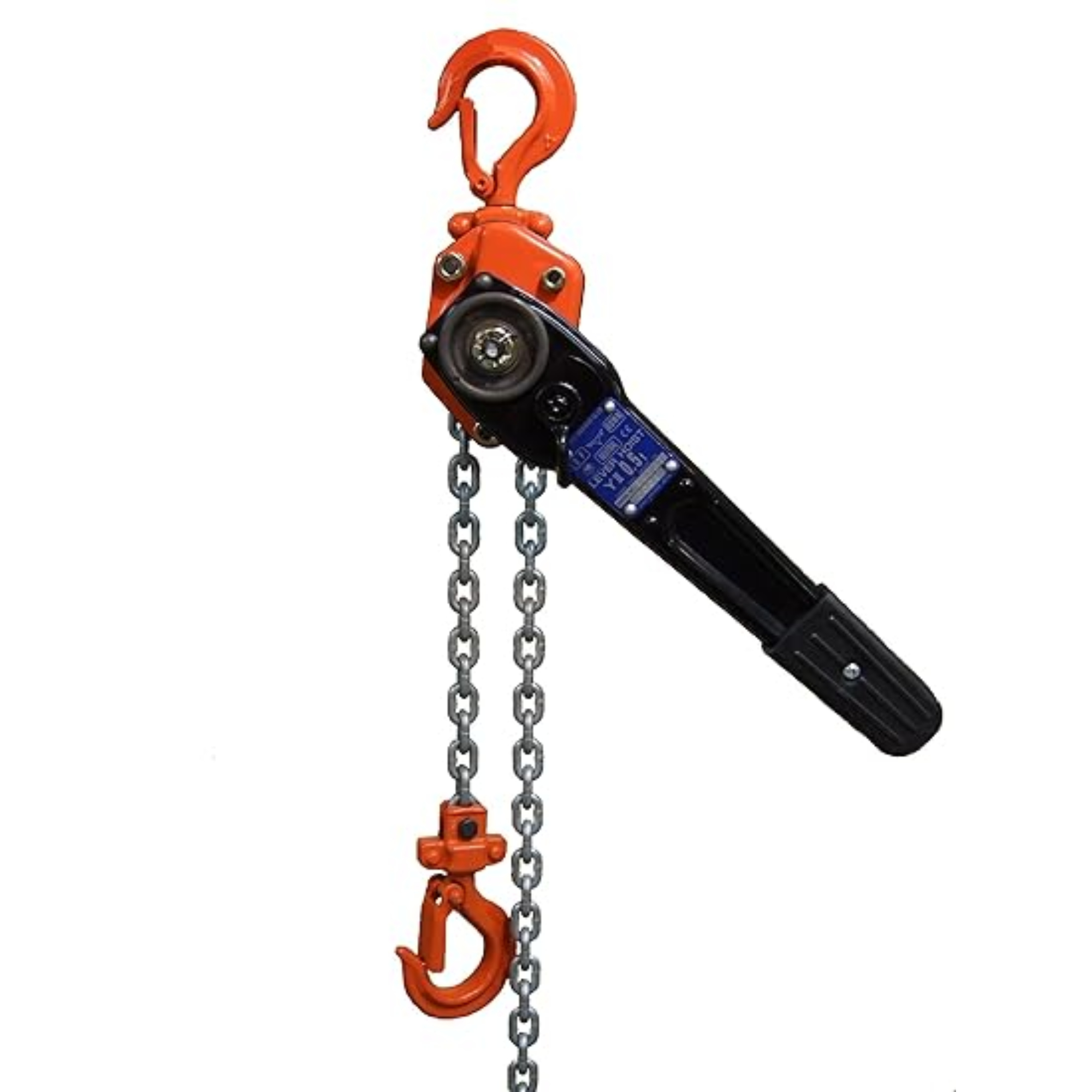

Elephant YⅡ-50 Lever Chain Hoist
Japanese quality for professional use. High performance and corrosion resistance for work even in difficult maritime and mining conditions. Lightweight construction, transmission with brake sealed water and shockproof protective cover ensures long life of the belt and low maintenance costs.
More Information
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
YⅡ-50
|
26.5
|
83
|
82
|
265
|
23
|
36
|
13
|
284
|
|
Model
|
YⅡ-50
|
|
|
Capacity ( ton )
|
0.5
|
|
|
Standard lift ( m )
|
1.5
|
|
|
Headroom ( mm )
|
265
|
|
|
Hand effort to lift full working load ( kg )
|
34
|
|
|
Load chain
|
Diameter ( mm )
|
5.0
|
|
No. of falls
|
1
|
|
|
Grade of chain
|
V
|
|
|
Net weight ( kg )
|
3.6
|
|
- Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard.
- Hoist body has an electro-deposited black finish for corrosion resistance.
- Both models have a compact design, for use in tight spaces
- Easy to store within a tool bag or tool chest
- For indoor and outdoor use
- Select internal components are nickel coated to help prevent corrosion
