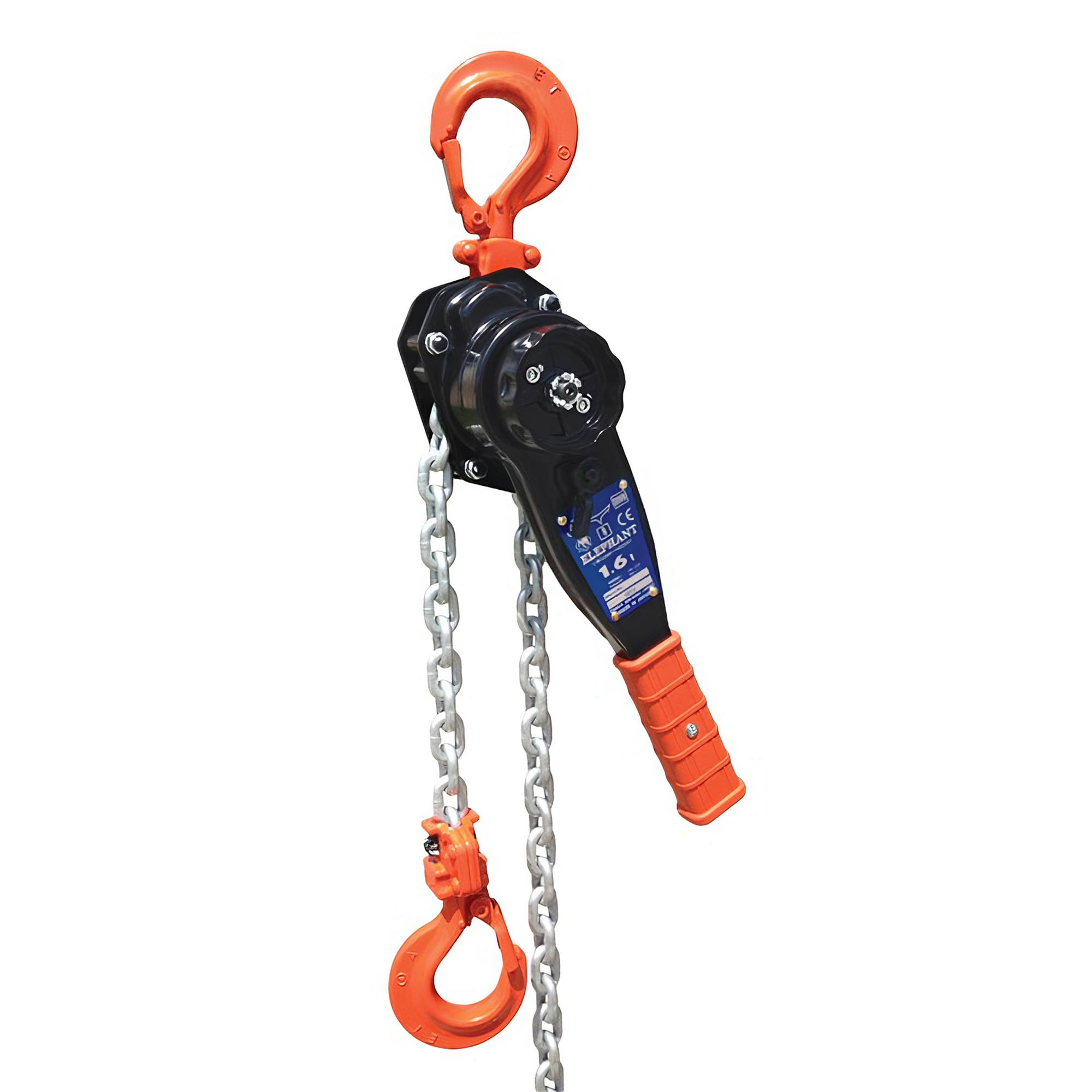

Elephant YA-80 Lever Chain Hoist

ELEPHANT YA Lever Chain Hoists are ideal for a wide range of lifting tasks, particularly in industries where equipment must withstand harsh environments while maintaining high levels of safety and functionality.

More Information

Figure of YA-80 dimensions



Model
A
B
C
D
E
F
G
H
YA-80
53
91
122
290
23
36
15
268
Model
YA-80
Capacity ( ton )
0.8
Standard lift ( m )
1.5
Headroom ( mm )
290
Hand effort to lift full working load ( kg )
30
Load chain
Diameter ( mm )
5.6
No. of falls
1
Grade of chain
V
Net weight ( kg )
6.0
  • Rounded lever design for smooth operation when placed against flat surfaces
  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
  • True one touch free spooling which automatically brakes when a load is applied
  • Redesigned hooks with tip supporting safety latch
  • Hoist body has an electro-deposited black finish for corrosion resistance
  • Ratchet recovery of 16.5o
  • Internal side plates have hardened steel bushings for excellent load sheave & pinion support
  • Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
  • Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
  • Suitable for operation within a -20o to +130o C, -4o to +266o F temperature range
