Hearthill Extended Insulator Cable Bracket
Hearthill Extended Insulator Cable Bracket
Brought to you by the trusted innovators at HTC Ltd., the Hearthill Extended Insulator Cable Bracket is expertly designed for securing cables to vertical post insulators with top clamps. Built for durability and efficiency, it is the ideal tool for pole-top installations and overhead applications.
More Information

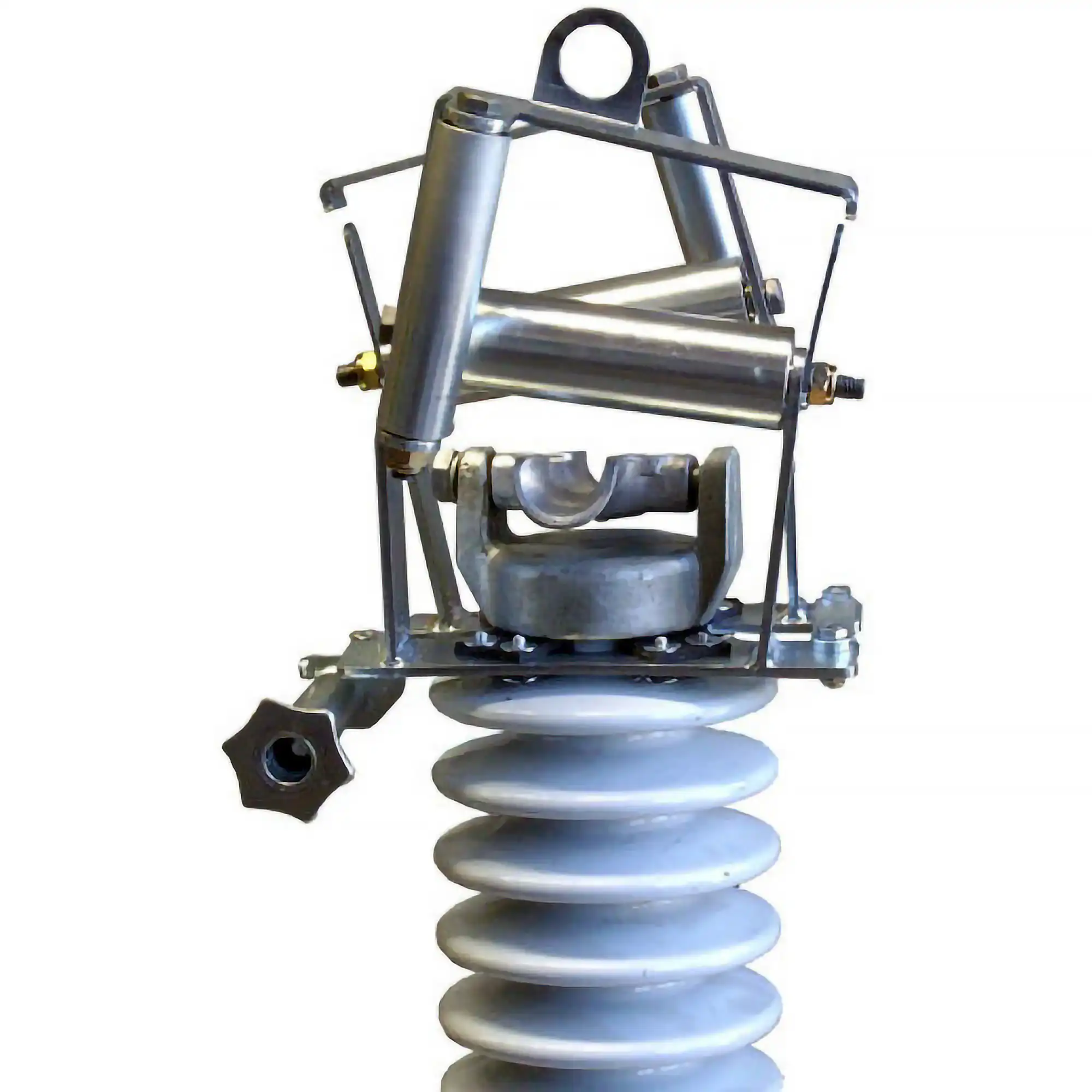

ICB-080 Extended Insulator Cable Bracket
- Designed for line post insulators, with a much smaller neck.
- This unit has been fitted with polyethylene pads to both protect the insulator and reduce friction when rotating the unit.
- This insulator cable bracket also features tubular rollers with bearings at each end to reduce pulling friction when drawing cable.
- Chrome zinc plate finish
Insulator cable bracket to suit vertical post insulator with top clamp.
- The unit folds together on a hinge and has a hand screw up handle.
- A top ring allows the unit to be carried easily or lowered from pole tops with rope.
Specifications
| Model No. | Description | Suits Insulator Necks (mm) | Weight (kg) |
| ICB-080 | 40mm OD Rollers | 55-100 | 6.5 |
