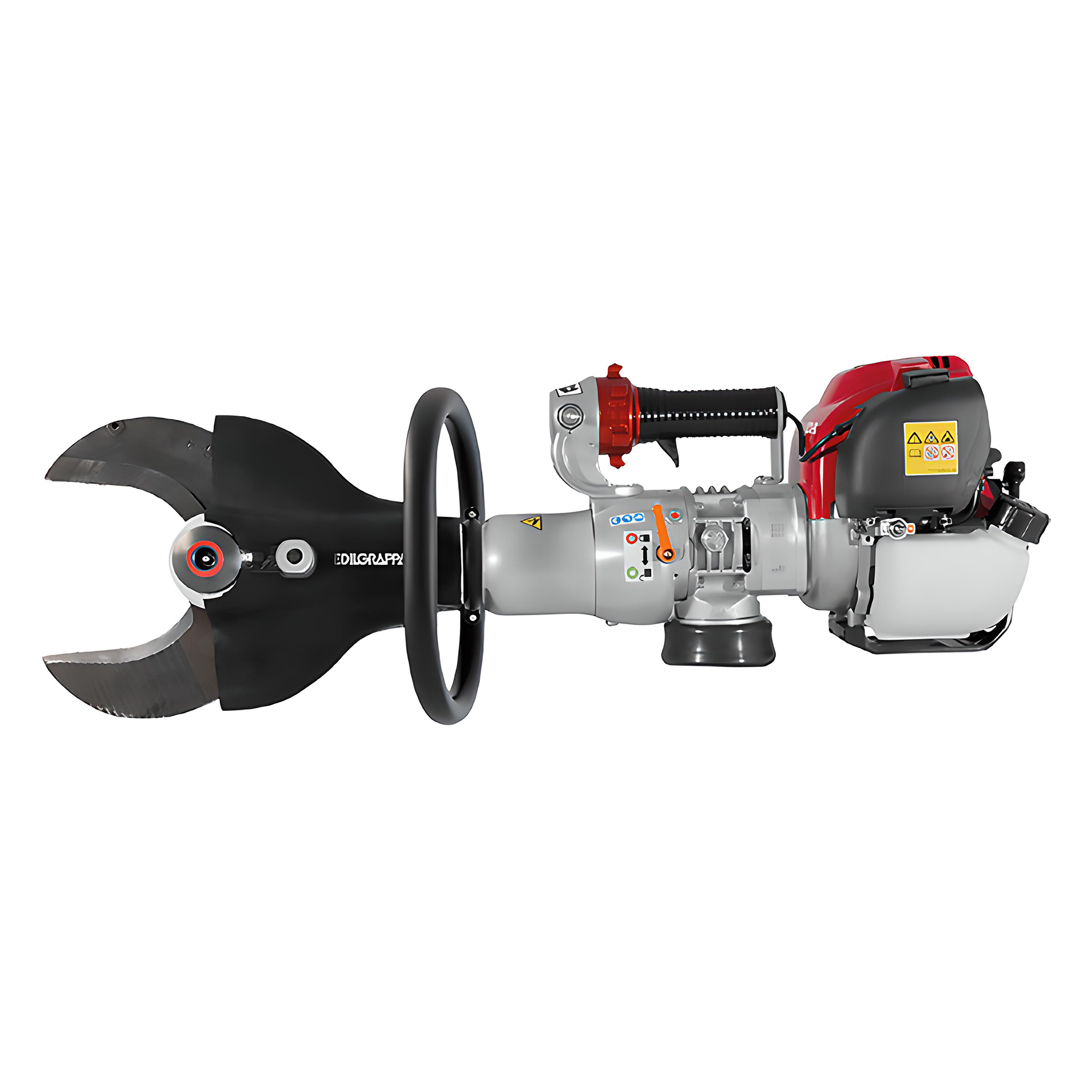

F150N T40 S Petrol Cutter

Edilgrappa has developed the F150N T40 S petrol engined hydraulic cutter for applications such as cutting cables, catalysts, vehicle frames and metal sheets.

The right solution for controlled demolition, vehicle decommissioning and specific industrial works sectors, is the Edilgrappa Hydraulic Cutter Engine Powered F150N T40 S.

More Information

Blade opening 150 mm
Cutting capacity 30 mm diameter
Cutting force 394 kN (40.2 t)
Working pressure 70 MPa (700 bar)
Power supply Petrol engine
Motor 35.8 cm³ – 4 stroke
Head rotation 180°
Cylinder Double acting
Weight 22.5 kg
Dimensions (closed) LxWxH 854 x 258 x 261 mm
Dimensions (open) LxWxH 840 x 258 x 261 mm
