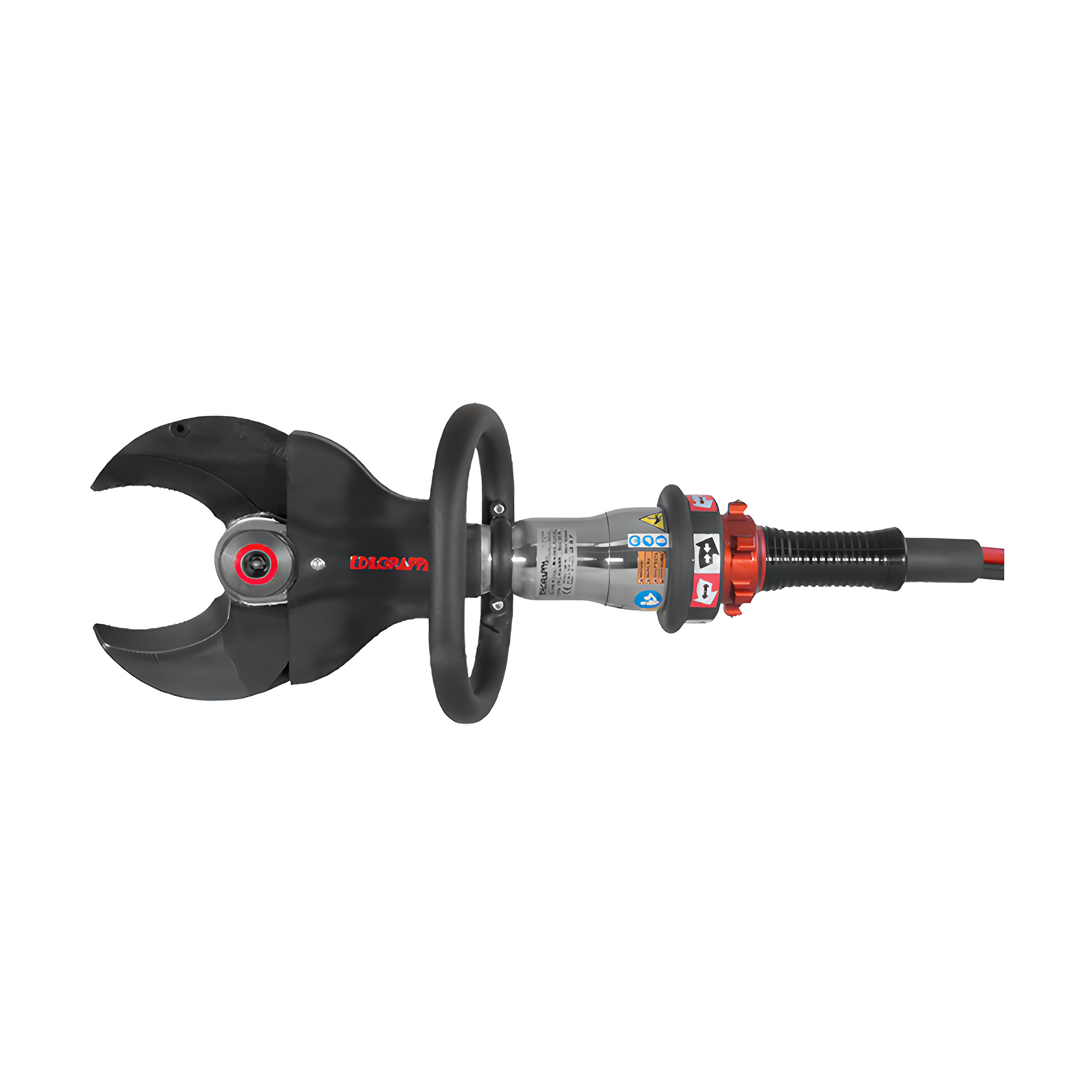

F170N hydraulic

Edilgrappa’s F170N is a hydraulic manual cutter manufactured in Italy for cutting cables, catalytic converters, car chassis, sheet metal, steel and aluminium profiles.

The F170N is the ideal product for controlled demolition.

The F170N is a manual hydraulic cutter that requires a separate hydraulic power unit. Also available with electric controls (requires a suitable pump) instead of the hand control.

More Information

Blade opening 170 mm
Cutting capacity 28 mm diameter
Cutting force 765 kN
Piston force 260 kN (26.5 t)
Working pressure 70 MPa (700 bar)
Cylinder Double acting
Weight 23.8 kg
Dimensions (closed) LxWxH 747 x 254 x 175 mm
Dimensions (open) LxWxH 733 x 269 x 175 mm
