Hearthill Hauling Eye Crimping Kit
CK-1 Crimping kit
The Crimping kit includes:
- an hydraulic cylinder and pump (manual or electric)
- two meter hose and quick release fittings

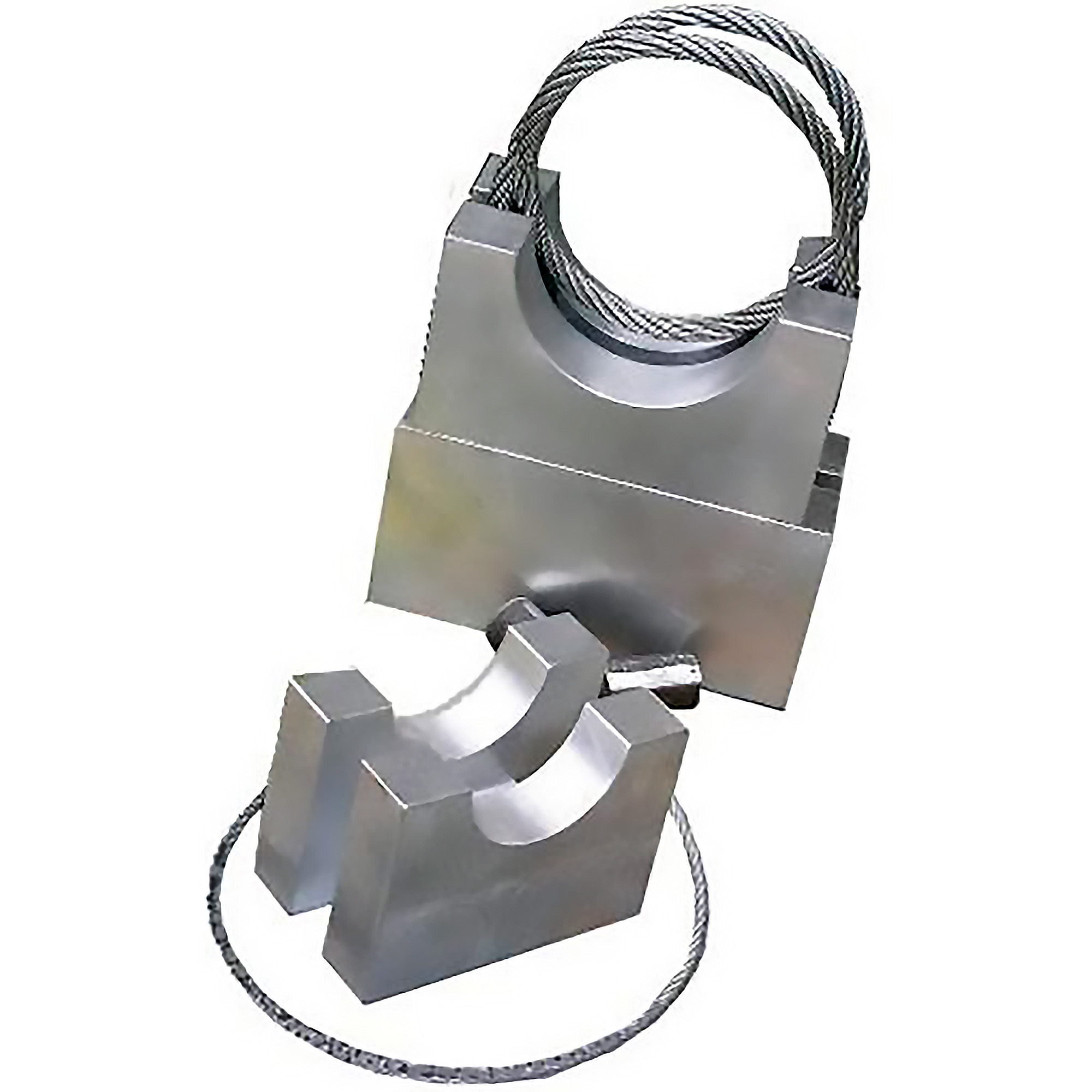

- crimper block, crimping dies, crimping ropes, retainer collar for ropes, hammer heads and expanding pins.
More Information
- Crimping methodology uses the wire rope to swage the sleeve onto the cable by grasping the conductors against an inner serrated spike.
- In this instance the pulling force is transferred onto the conductors rather than the outer sheath.
- The diameter of the eye is usually smaller than the diameter of the cable.
- The die sizes range suits from 25mm sleeves through to 150mm sleeves.
- An electric or manually operated hydraulic pump provides the required force to operate the crimping head.
