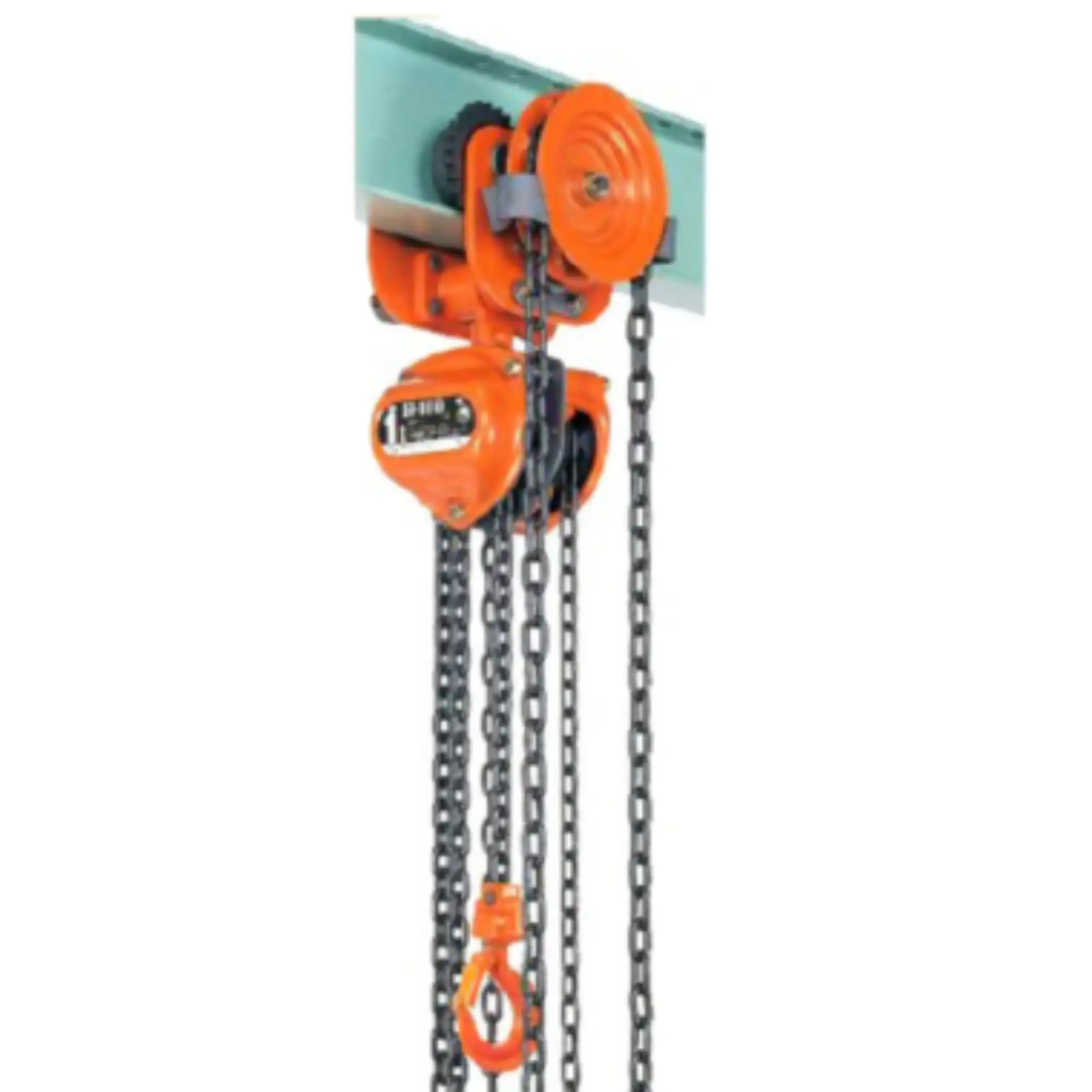

Elephant HG-0.5 Manual Chain Hoist with Geared Trolley

The Elephant H-100 Manual Chain Hoist is a Japanese-made hoist equipped with an overload protection safety device that prevent operation if the hoist is overloaded.  Hoist features a reinforced gear case with four ribs and four knock pins for accuracy and efficiency, and is protected by a heavy duty electrostatic powder coat finish. Double pawls support a fail-safe brake mechanism, and long lasting friction discs contribute to making this heavy duty hoist extremely wear resistant. Heavy duty manual chain hoist is fitted with galvanized load and hand chains, and a bottom hook with thrust bearing. The Elephant H-100 Manual Chain Hoist is manufactured to meet ASME B30.16, and is load tested to 125% of the rated capacity. The article may differ to the image shown.

More Information

Figure of HG-0.5 dimensions

Model
P
B
C
D
E
HG-0.5
299
100.5
143.5
191
100.4
Model
G
H
I
J
K
N
HG-0.5
36
96.5
13
70
136
26
Model
HG-0.5
Capacity ( ton )
0.5
Manufacturer’s test load ( ton )
0.75
Standard lift ( m )
2.5
Headroom ( mm )
299
Length of load chain lifted
by pulling hand chain 1m ( mm )
35
Hand effort to lift full working load ( N ) ( kg )
216 ( 22 )
Traveling length driven
by pulling hand chain 1m ( mm )
139
Hand effort to move geared trolley ( N ) ( kg )
19.6 ( 2 )
Hand chain of Geared Trolley
Dia. x pitch ( mm ) x ( mm )
5 X 22.5
I-beam
Width ( mm )
75 ・ 100 ・ 125
Minimum height ( mm )
125
Minimum radius ( mm )
900
Net weight ( kg )
21
  • Solid carbon steel design
  • Adjustable to fit various beam widths with traditional spacers
  • Wheels of the units fit both I-beams and H-beams
  • Trolley wheels are coated for corrosion resistance
  • With anti-drop plates
  • 100% stainless steel spark resistant & corrosion resistant units
  • Lug mount adaptors are available, for hoist to trolley combination, only
