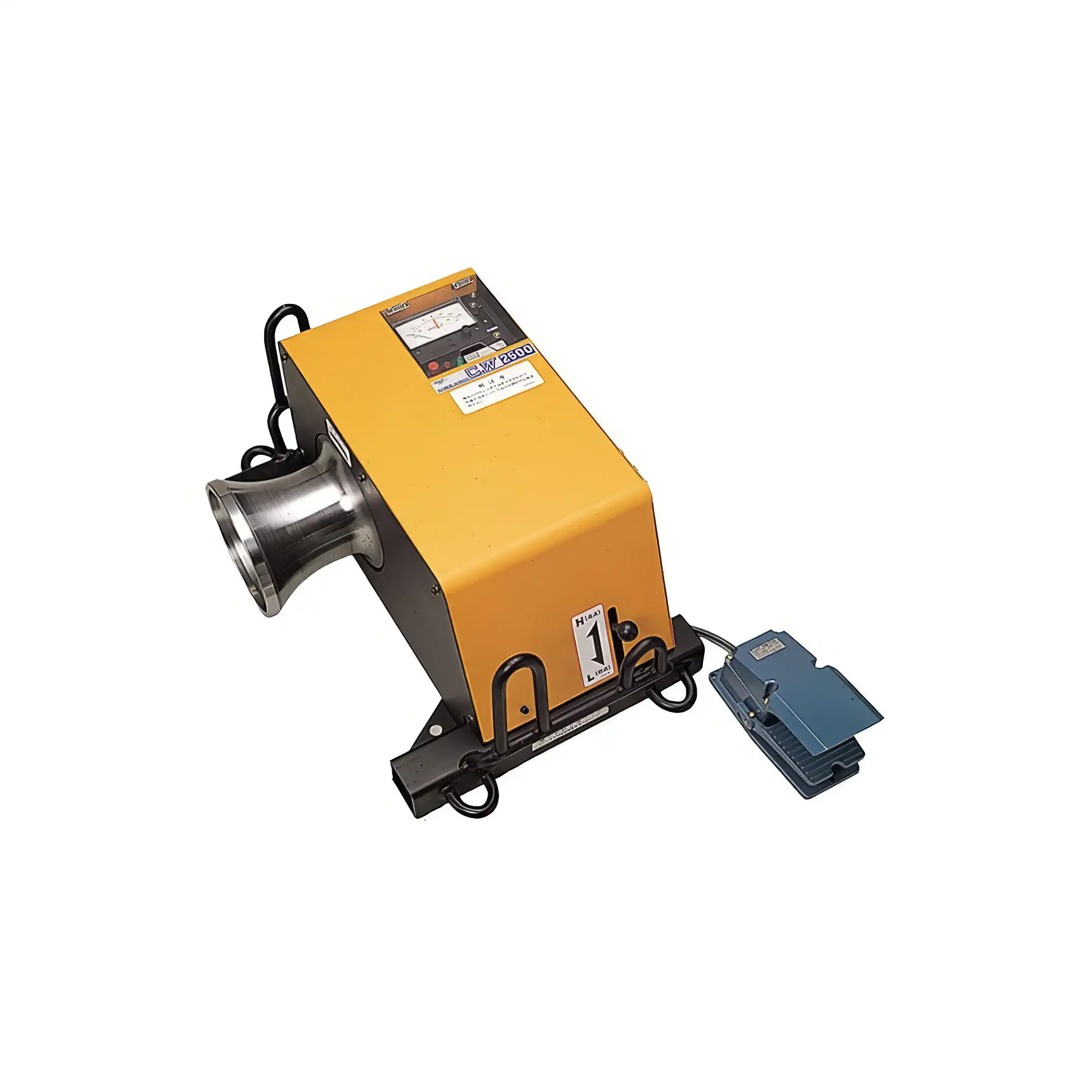

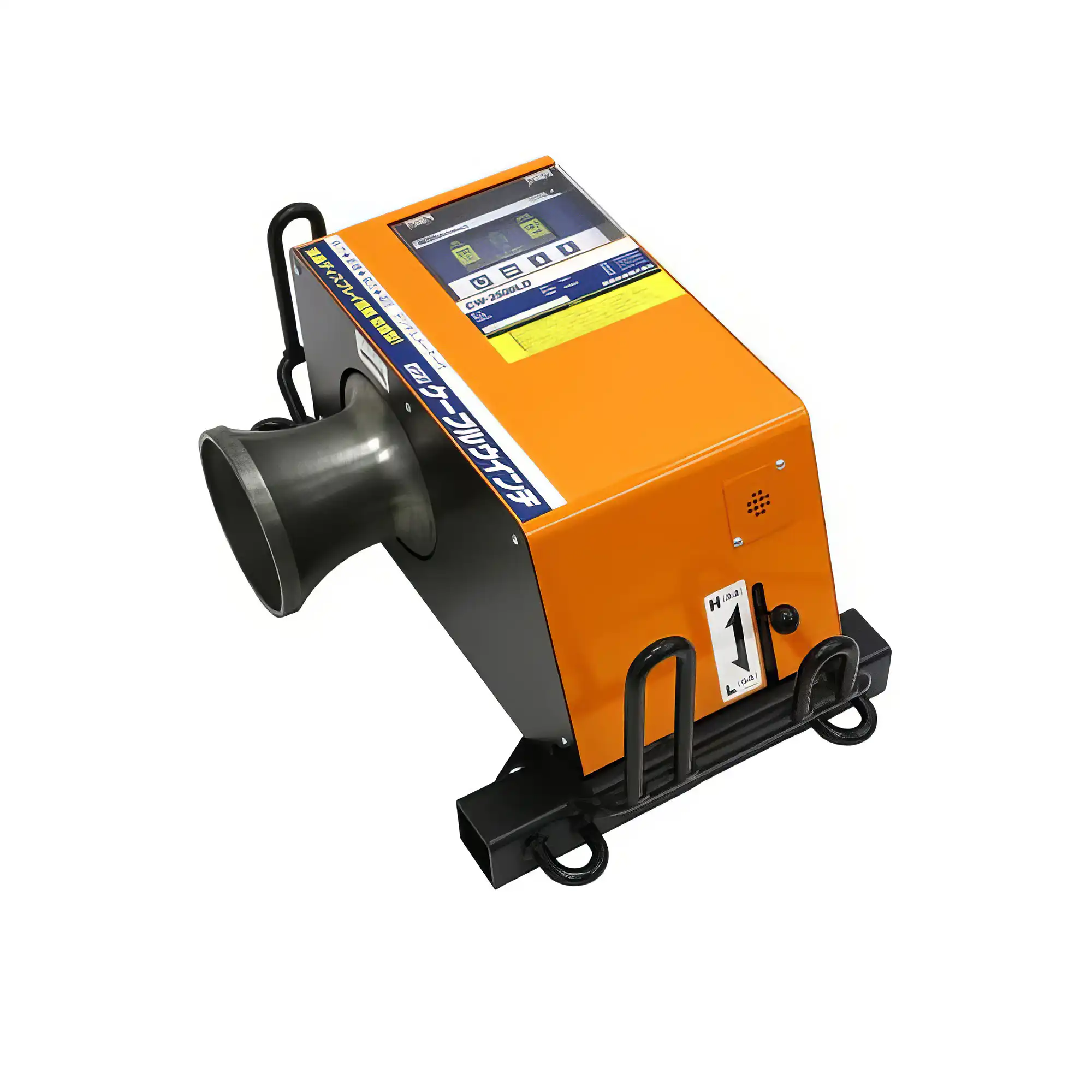

Ikura CW-2500LD Electric Cable Puller
For efficient cable pulling and installation, compact at 59 kilos but boasting up to 2.5T pulling force!
Load preset mechanism and anti-reverse feature ensure smooth operations and enhanced safety.
Stay informed with direct tension reading via the analog tension indicator, allowing you to monitor line extension status while you work.
More Information
Specifications:
- Winding Capacity: High speed: 14.7kN | Low speed: 24.5kN
- Winding Speed: High speed: 43.5m/min | Low speed: 3.72.0m/min
- Power Supply: AC100V 50/60Hz, Output: 750W
- Outer Dimension: W450×L640×H300mm, Mass: 59kg
Standard Accessories:
- Includes a convenient foot switch with a 1m cord for added control.
Pull heavy loads effortlessly with our innovative features:
- Right-angle sheave allows operators to stand clear of direct force.
- Audio alarm for high force warnings and automatic circuit breaker shutdown at maximum force ensure added safety.
- Tapered capstan and guidance system provide better control when feeding onto the capstan.
- Compatible with 230V 10A power supply and features 16.5mm mounting holes for concrete anchors.
- Equipped with an LCD display for easy monitoring.
