Estex Electrical Arc Blanket

Estex BlastMat Arc Protection Blanket: Advanced Safety for Utility Work

Working in manholes and utility areas presents the critical risk of electrical arcs, a hazard capable of causing severe injuries or fatalities. The Estex BlastMat Arc Protection Blanket, now available in New Zealand through HTC Ltd, offers reliable protection against the dangers of electrical arcing when properly deployed.

Key Features and Benefits:

• Thermal Radiation Management: The BlastMat is engineered to mitigate heat, fire, pressure waves, and molten spray produced during an arc blast.
• Quick Installation: Equipped with Kevlar straps for efficient setup in demanding environments.
• Customisable Fit: Configurable to suit the specific requirements of vault and utility jobs.
• Safety Guidelines: Designed to hang loosely and maintain a minimum 20 cm distance from potential fault points.

Robust Layering Construction:

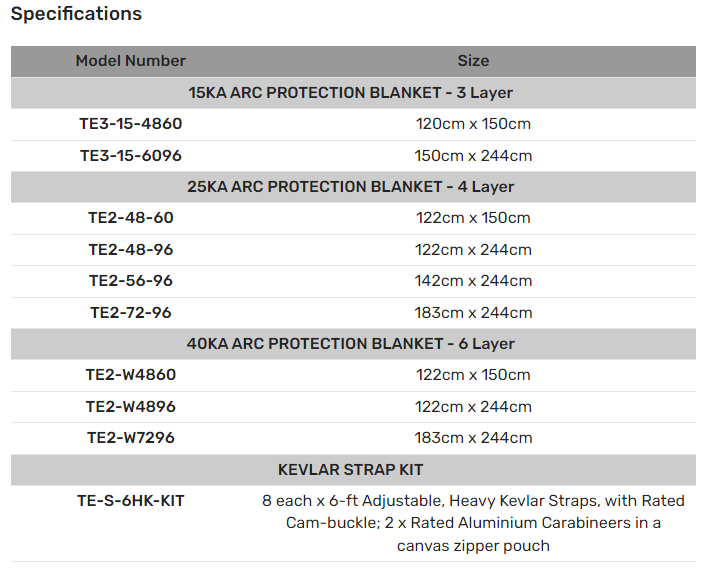

The BlastMat comes in three configurations to address varying arc flash scenarios:

• 3-Layer Light-Line Blanket: For 15KA applications.
• 4-Layer Blanket: For 25KA applications.
• 6-Layer Regular-Line Blanket: For 40KA applications.

Each layer incorporates Kevlar, ballistic fabric, and Nomex blends, ensuring maximum durability and protection for utility professionals.

Available in New Zealand through HTC Ltd, the Estex BlastMat delivers industry-leading safety solutions tailored for high-risk environments.

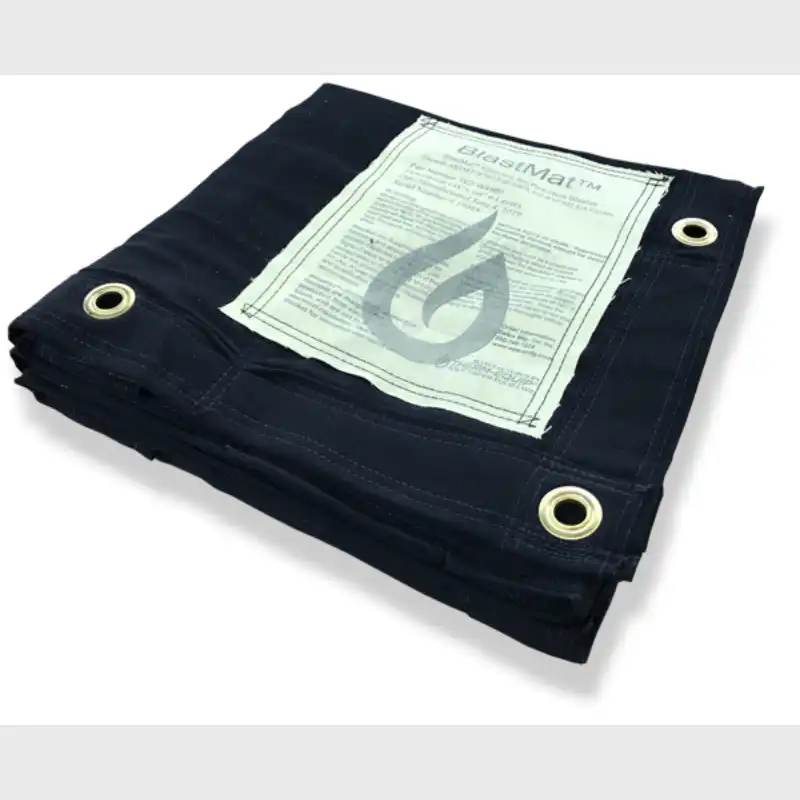

Light-Line Blanket….(4′ x 8′)

Aramid/Nomex Blended Outside Layers w/ 2 inner Layers of Blastic Kevlar

• SKUTE2-48-96
• Size:4 FT X 8 FT
• Weight:8 lbs.

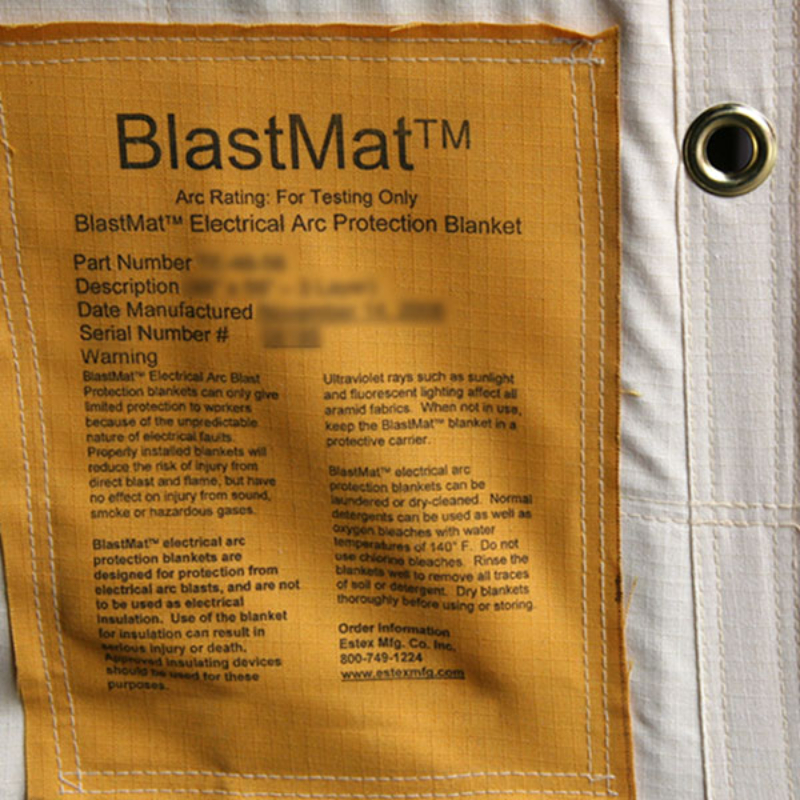

Care and Use Instructions

1. UV light found in sun and fluorescent lighting effects all Aramid fabric’s strength. Proper storage is required to prevent UV damage. Always store blankets after thoroughly dried.
2. BlastMat Blankets can be laundered with normal detergents. Water temp should not exceed 60 degrees Celsius. DO NOT USE Chlorine Bleaches. Rinse thoroughly. Tumble Dry on Delicate or Air Dry preferably.

Warnings and Precautions

1. BlastMat Blankets give limited protection because of the unpredictable nature of electrical discharges and may not fully contain the pressure wave, plasma arc flash, or blast material, but only reduce or dampen the explosive and incendiary effects. In such cases, injuries or even death may still occur, even if the blanket is properly used.
2. BlastMat Arc Suppression Blankets are designed for protection from the effects of arcing fault and is not classified as “Electrically Insulated” must never be used in this way.
3. BlastMat Blankets, hardware and strapping should be visually inspected before each use. Signs of wear or deterioration of components or stitching should cause the product to be disqualified for use. A user sponsored inspection and qualification program is recommended. Serial numbers and production dates are provided with each blanket.
