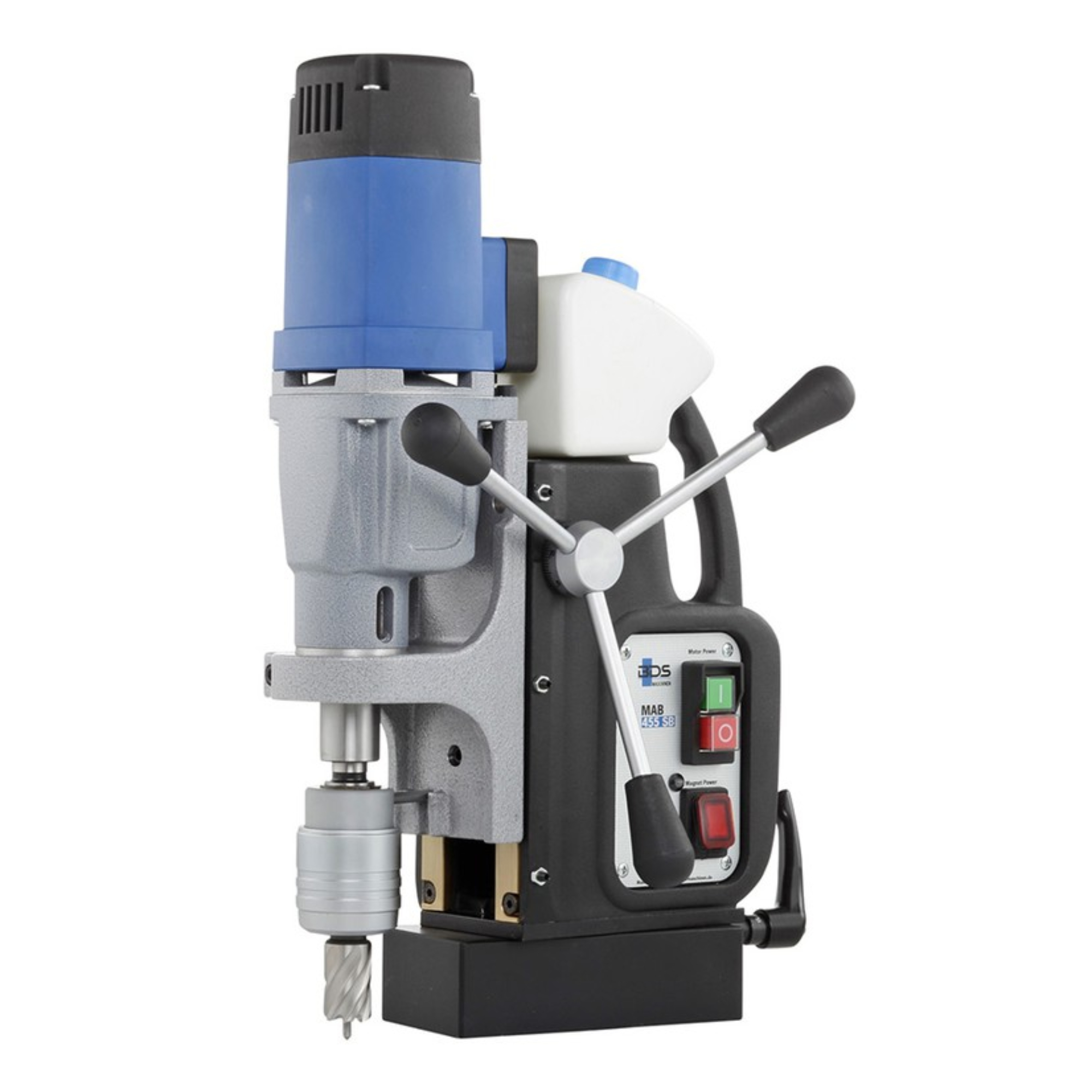

MAB 455 SB Magnetic Drilling Machine With Swivel Base
Whether it’s for a workshop or field use, the MAB 455SB is the top choice for metalworking! This heavy-duty magnetic base drilling machine features a KEYLESS drill chuck system for quick and easy tool changes. The MAB 455SB, equipped with a Morse Taper 2, is also suitable for twist drills up to 18 mm in diameter with a taper shank. Additionally, it includes a Swivel Base adjustment device, making it easy to center even when drilling overhead or on vertical surfaces.
Categories: Drills - Magnetic, Mag Based Drills
Brand: BDS
More Information
- Overheating protection
- Â Magnet indicator
- Â Permanent internal lubrication
- Â Equipped with Swivel Base
- Â Carbon brush wear indicator
- Â Full wave control electronics
- Â Internal cabling
- Â Reversible motor
Core Drilling: 40/50Â mm
Thread Cutting: MÂ 16
Powerful Motor: 1150Â Watt
Weight: 13Â Kg
 Motor output
|
Watt
|
1150
|
 Voltage, V AC
|
Volt
|
230 – 110/125
|
Core drill cutting depth max.
|
mm
|
55
|
Core drill max. Ø HSS/TCT
|
mm
|
40/50
|
 Twist drill
|
≤ Ø mm
|
18
|
 Reaming
|
≤ Ø mm
|
18
|
Countersinking
|
≤ Ø mm
|
40
|
Thread cutting
|
≤ Ø mm
|
16
|
Stroke
|
mm
|
160
|
Magnet dimensions
|
mm
|
84 x 168 x 48
|
Weight
|
kg
|
13
|
 Spindle taper
|
MT 2
|
|
 Arbor
|
—
|
|
 KEYLESS 19 mm Weldon 3/4“
|
||
 Speed gears
|
2
|
|
 Gear 1 range
|
min-1
|
50 – 250
|
 Gear 2 range
|
min-1
|
100-450
|
 Permanent internal lubrication
|
||
 Safety clutch
|
—
|
|
 Torque control
|
—
|
|
 Full-wave control electronics
|
||
 Magnetic Indicator
|
||
 Overheating protection
|
||
 Clockwise/anticlockwise rotation
|
||
 Carbon brush wear control
|
