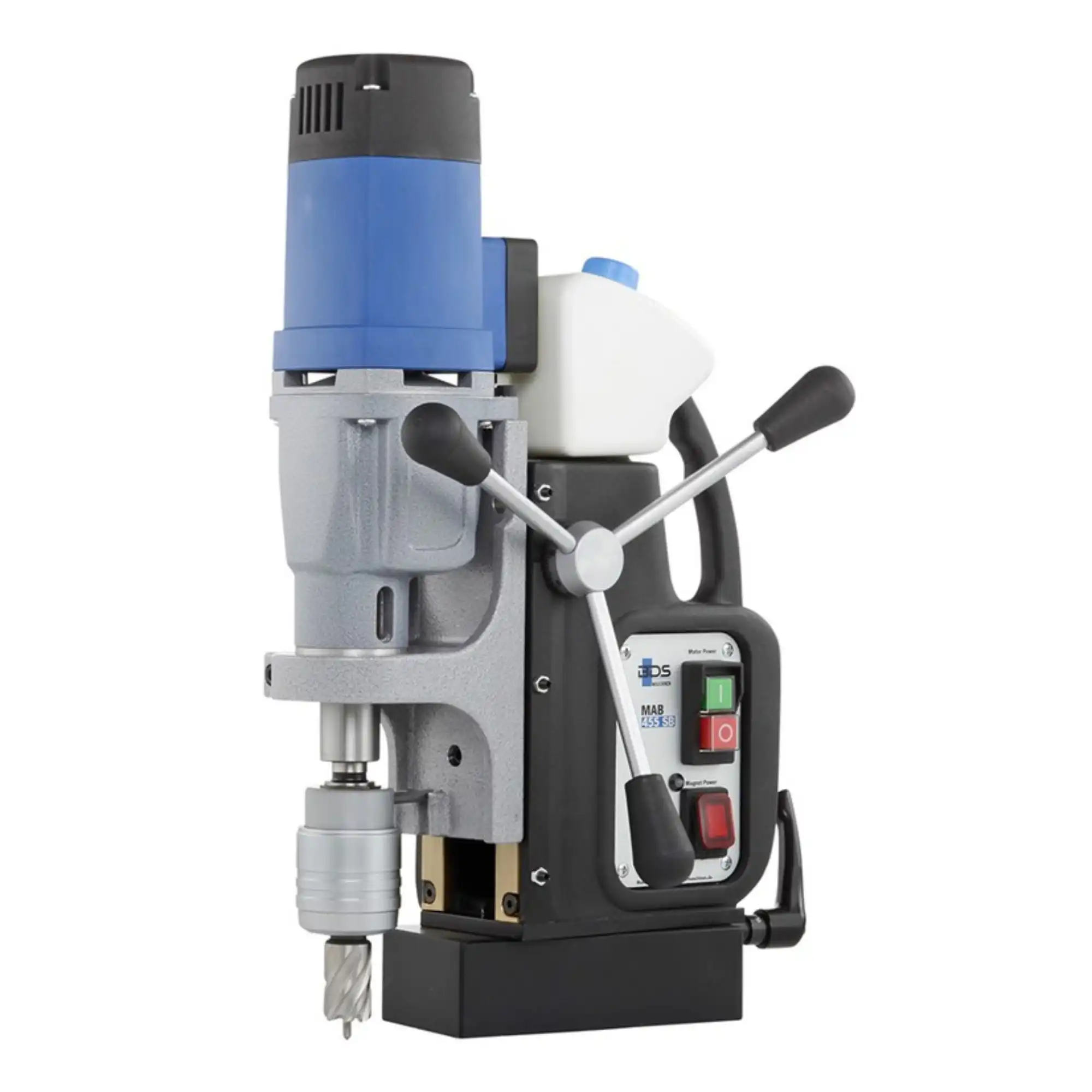

MAB 455 SB Magnetic Drilling Machine With Swivel Base

Whether it’s for a workshop or field use, the MAB 455SB is the top choice for metalworking! This heavy-duty magnetic base drilling machine features a KEYLESS drill chuck system for quick and easy tool changes. The MAB 455SB, equipped with a Morse Taper 2, is also suitable for twist drills up to 18 mm in diameter with a taper shank. Additionally, it includes a Swivel Base adjustment device, making it easy to center even when drilling overhead or on vertical surfaces.

Categories: , Brand:

More Information

  • Overheating protection
  •  Magnet indicator
  •  Permanent internal lubrication
  •  Equipped with Swivel Base
  •  Carbon brush wear indicator
  •  Full wave control electronics
  •  Internal cabling
  •  Reversible motor
 Motor output
Watt
1150
 Voltage, V AC
Volt
230 – 110/125
Core drill cutting depth max.
mm
55
Core drill max. Ø HSS/TCT
mm
40/50
 Twist drill
≤ Ø mm
18
 Reaming
≤ Ø mm
18
Countersinking
≤ Ø mm
40
Thread cutting
≤ Ø mm
16
Stroke
mm
160
Magnet dimensions
mm
84 x 168 x 48
Weight
kg
13
 Spindle taper
MT 2
 Arbor
 KEYLESS 19 mm Weldon 3/4“
 Speed gears
2
 Gear 1 range
min-1
50 – 250
 Gear 2 range
min-1
100-450
 Permanent internal lubrication
 Safety clutch
 Torque control
 Full-wave control electronics
 Magnetic Indicator
 Overheating protection
 Clockwise/anticlockwise rotation
 Carbon brush wear control
