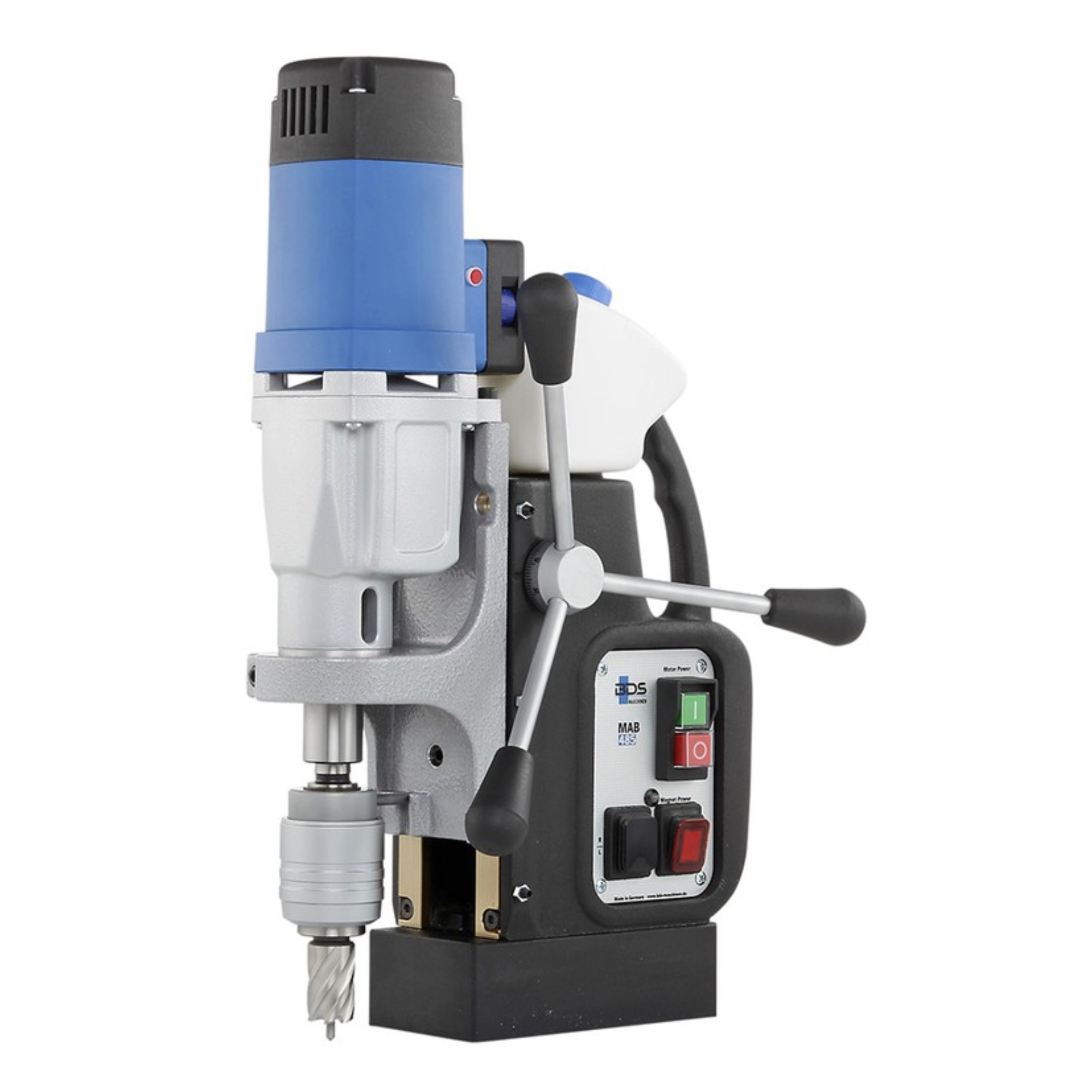

MAB 485 SB Magnetic Drilling Machine with Swivel Base
The versatile compact machine with a Swivel Base, the MAB 485 SB, is a top choice among metal-working professionals due to its wide range of applications and exceptional performance.
BDS’s Swivel Base technology enables effortless and precise positioning of the drilling machine on the magnet. It allows the machine to swivel 20° left and right and move 15 mm forward and backward, making precise centering significantly easier. This feature ensures enhanced comfort and safety, especially when working on vertical surfaces or overhead.
More Information
- Â Overheating protection
- Â Magnet indicator
- Â Permanent internal lubrication
- Â Equipped with Swivel Base
- Â Carbon brush wear indicator
- Â Full wave control electronics
- Â Internal cabling
- Â Reversible motor
Core Drilling: 40/50Â mm
Thread Cutting:Â MÂ 16
Powerful Motor: 1150Â Watt
Weight: 13Â Kg
 Â Motor output |
Watt
|
1150
|
 Â Voltage, V AC |
Volt
|
230 – 110/125
|
 Core drill cutting depth max. |
mm
|
55
|
 Core drill max. Ø HSS/TCT |
mm
|
40/50
|
 Â Twist drill |
≤ Ø mm
|
18
|
 Â Reaming |
≤ Ø mm
|
18
|
 Countersinking |
≤ Ø mm
|
40
|
 Thread cutting |
≤ Ø mm
|
16
|
 Stroke |
mm
|
160
|
 Magnet dimensions |
mm
|
84 x 168 x 48
|
 Weight |
kg
|
13
|
 Â Spindle taper |
MT 2
|
|
 Â Arbor |
—
|
|
  KEYLESS 19 mm Weldon 3/4“ |
||
 Â Speed gears |
2
|
|
 Â Gear 1 range |
min-1
|
50 – 250
|
|
 Gear 2 range |
min-1
|
100-450
|
 Â Permanent internal lubrication |
||
 Â Safety clutch |
—
|
|
 Â Torque control |
—
|
|
 Â Full-wave control electronics |
||
 Â Magnetic Indicator |
||
 Â Overheating protection |
||
 Â Clockwise/anticlockwise rotation |
||
 Â Carbon brush wear control |
