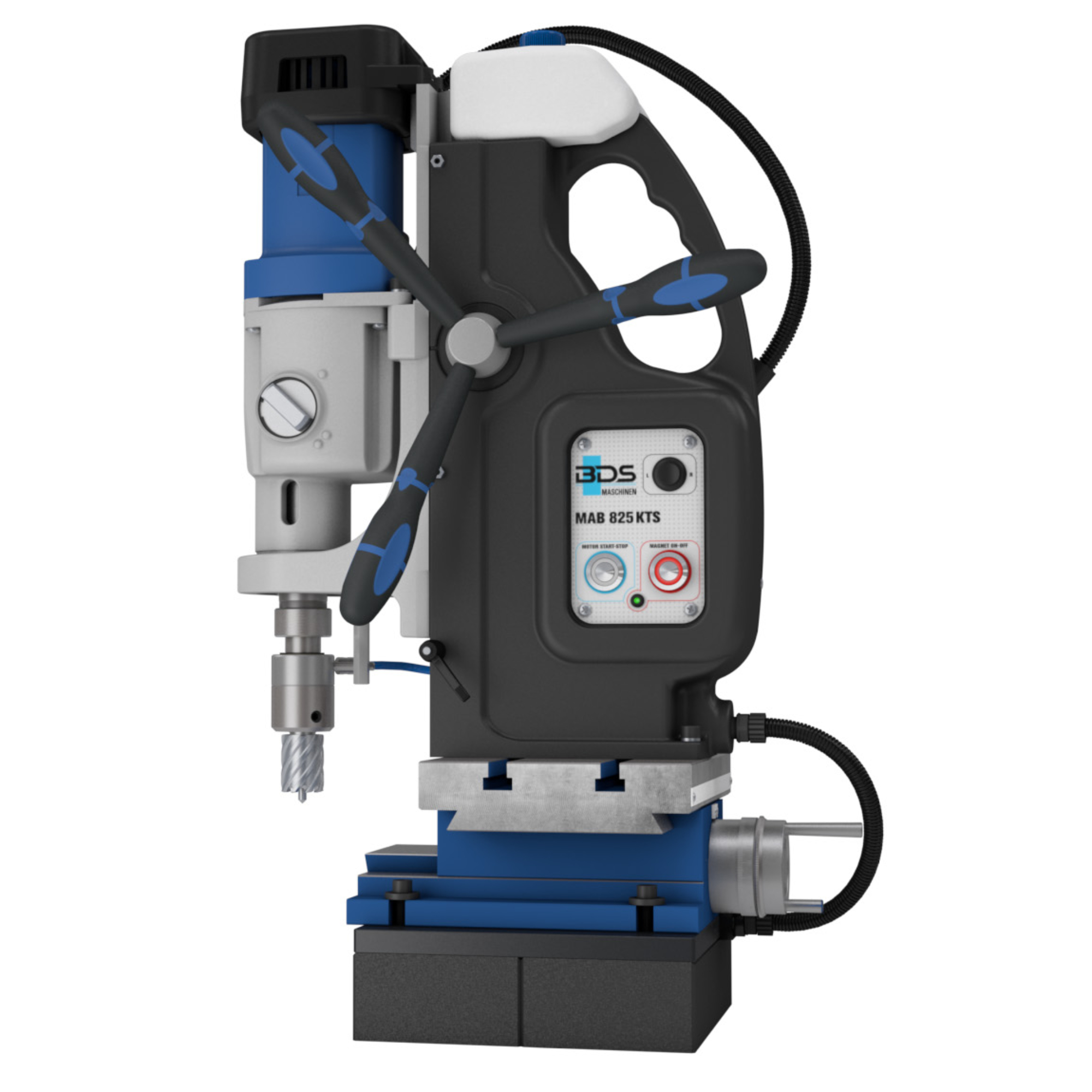

MAB 825 KTS Magnetic Drilling Milling Machine

Full Performance & Flexibility for Steel, Plant, and Machinery Construction. The MAB 825 KTS, an innovative portable milling machine also known as a magnetic base drilling milling machine, is an advanced tool featuring a cross table base. The sturdy cross table enables precise offset drilling and the creation of various hole patterns. An optional collet chuck is available, making it suitable for light-duty milling tasks like creating elongated holes or slots. This setup is perfect for milling, drilling, tapping, countersinking, and reaming.

Categories: , Brand:
Enquire Now
Save or Print Page

More Information

  •  Ideal for drilling & milling
  •  Cross table base to move 110 mm in X and 120 mm in Y axis
  •  Light milling up to Ø 13 mm (5/8”)
  •  Reversible motor
  •  Variable speed & torque control
  •  Magnet indicator & Carbon brush indicator
  •  Overheating protection
  •  Delivered in large carry case on wheels
Core Drilling: 80 mm
Thread Cutting: M 30
Powerful Motor: 1800 Watt
Weight: 57.5 Kg



 Motor output Watt 1800
 Voltage, V AC Volt 230 – 110/125
Core drill cutting depth max. mm 55
Core drill max. Ø HSS/TCT mm 80
 Twist drill ≤ Ø mm 31.75
 Reaming ≤ Ø mm 31.75
Countersinking ≤ Ø mm 50
Thread cutting ≤ Ø mm 30
Stroke mm 255
Magnet dimensions mm 220 x 220 x 54
Weight kg 57.5
 Spindle taper MT 3
 Arbor mm Industrial arbor 19, 32
 KEYLESS 19 mm Weldon 3/4“ —
 Speed gears 4
 Gear 1 range min-1 40 – 110
 Gear 2 range min-1 65 – 175
 Gear 3 range min-1 140 – 360
 Gear 4 range min-1 220 – 600
 Permanent internal lubrication ✔
 Safety clutch ✔
 Torque control ✔
