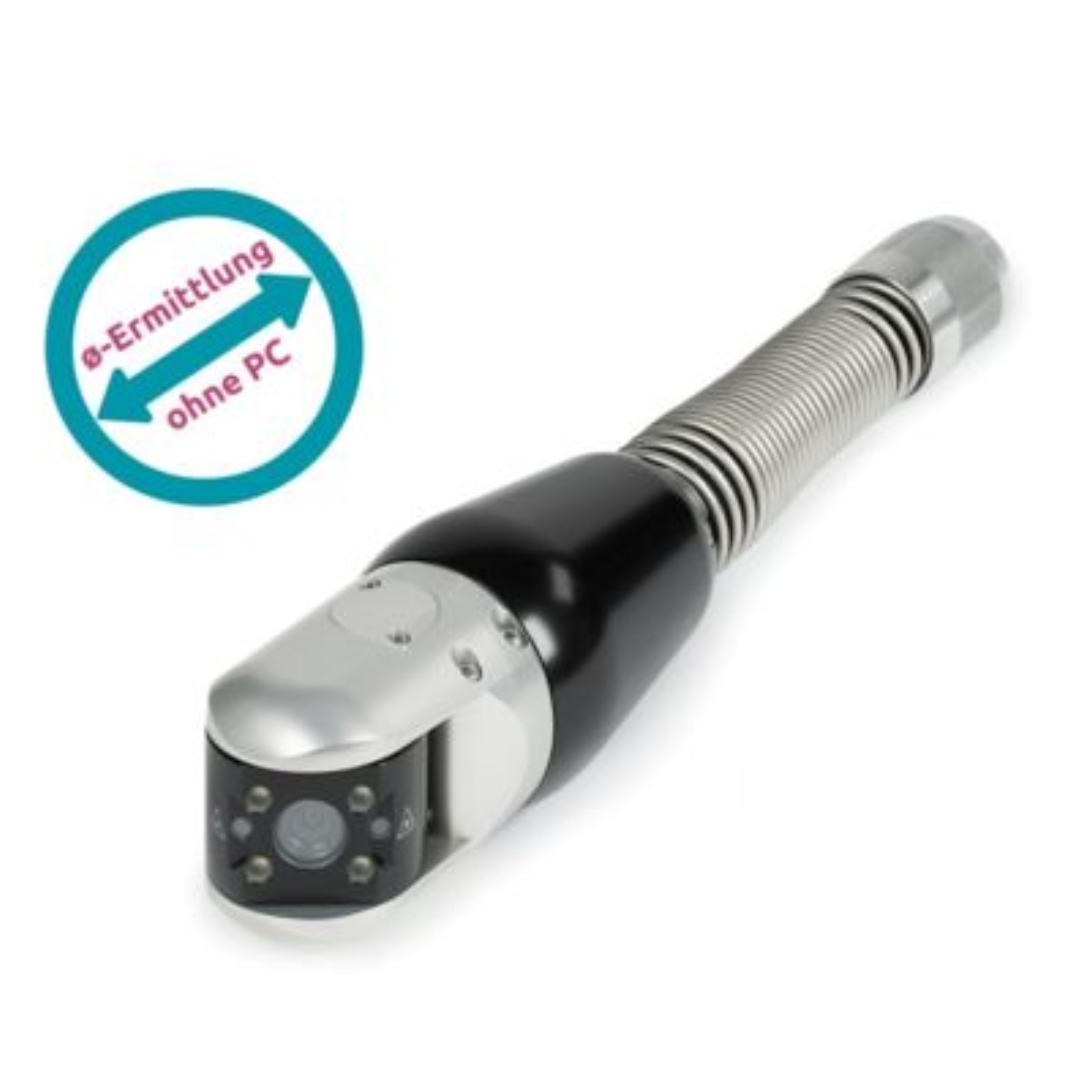

Pan/ Rotate camera head RI 56.2 SKS for RiCubio S

With the RI 56.2 SKS, you have an allrounder in a small format at hand. It is your reliable tool for a wide range of applications.



Category: Brand:
Enquire Now
Save or Print Page

More Information

  • Pan & rotate camera
  • Digital
  • DN 75 – DN 250

Descrip­tion

  • Pan & rotate camera ø 56 mm
  • 45° bendable from DN 80
  • 87° bendable from DN 100
  • Pan angle ± 120 °
  • Pan angle incl. viewing range ±148°
  • Endless rotation
  • Slip clutch in rotation axis
  • High-resolution colour camera module
  • Automatic aperture control
  • Automatic self leveling picture (can be disabled)
  • Camera head zero setting / Home position
  • Pan axis supported on both sides
  • Electric focusing with storable focus for near and far range
  • High-performance LED light
  • Protective glass combination made of sapphire and special plastics
  • Pressure sensor with pressure drop alarm function
  • Push guide from DN 100
  • Two-point laser
