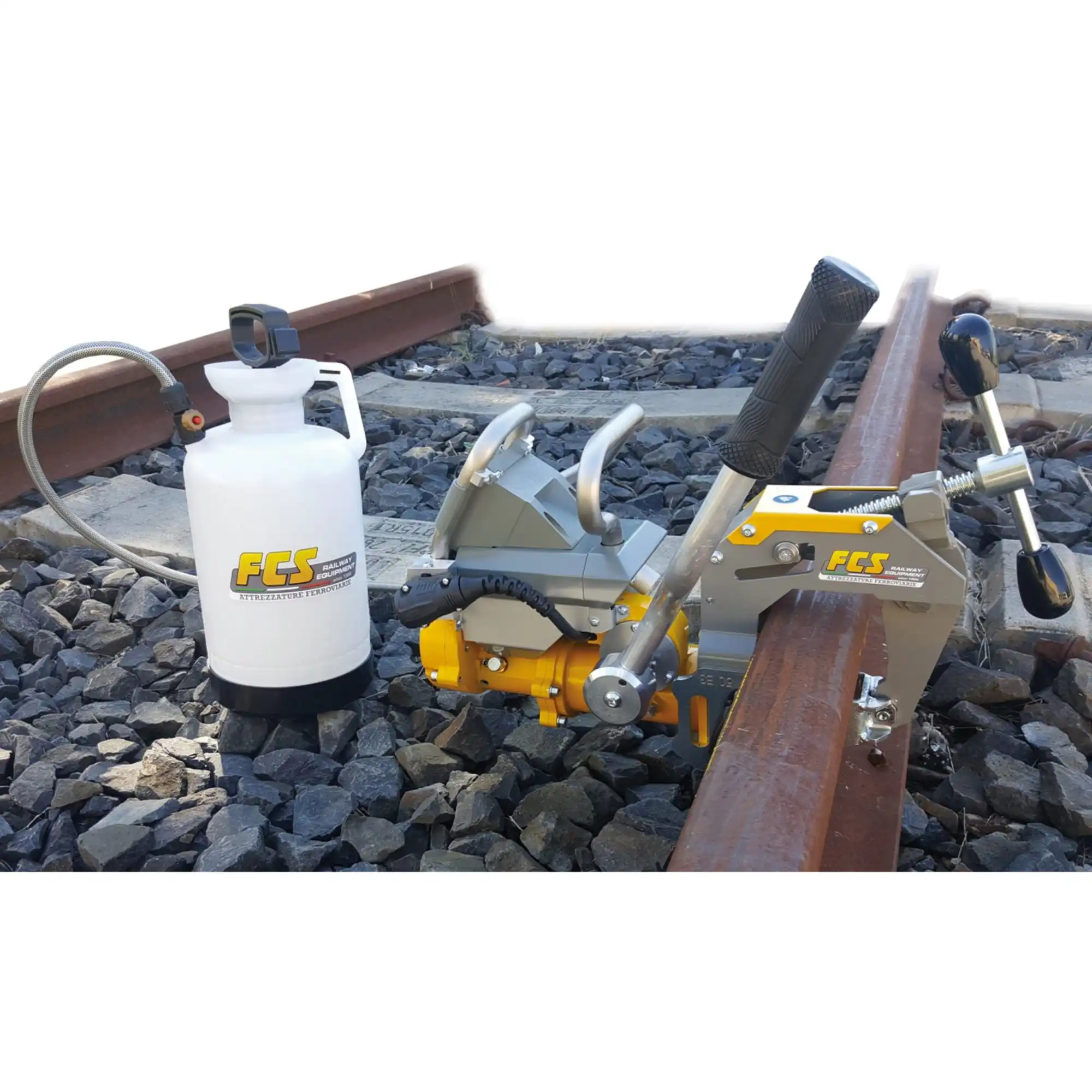

Battery Operated Rail drilling machine TFR 330 B
The lightweight and easy to use Batterty powered TFR 330 B rail drilling machine at HTC is composed of an electric engine with battery and is suitable for drilling vignole and grooved rails.
The advancing lever is directly connected to the engine and this system allows to use only the power which at that moment is necessary for the perforation, limiting the wear of the drill bit. Also its large coolant tank, allows a prolonged use of the drill bits.
More Information
The quick fixing to the rail, the action of the tool completely protected and its balanced handle with safety switch, guarantee minimum effort and maximum safety for the operator.
Drilling time: ranges from 20 to 60 seconds, depending on the diameter of the hole and the hardness of the rail. With the machine we supply the templates for any type of rail (specifying the height of the hole, that is, from the foot to the center of the rail) and, optionally, the drilling templates (hole locators) of 4 or 6 perforations can also be supplied respectively for vignole and grooved rails.
The 5 liter tank, the wooden box and the pin for the drill bit are included with the machine.
Engine: Electric
Engine power: 1,6kW
Max. hole drilling capacity: 40mm
Weight without accessories: Â 14kg
