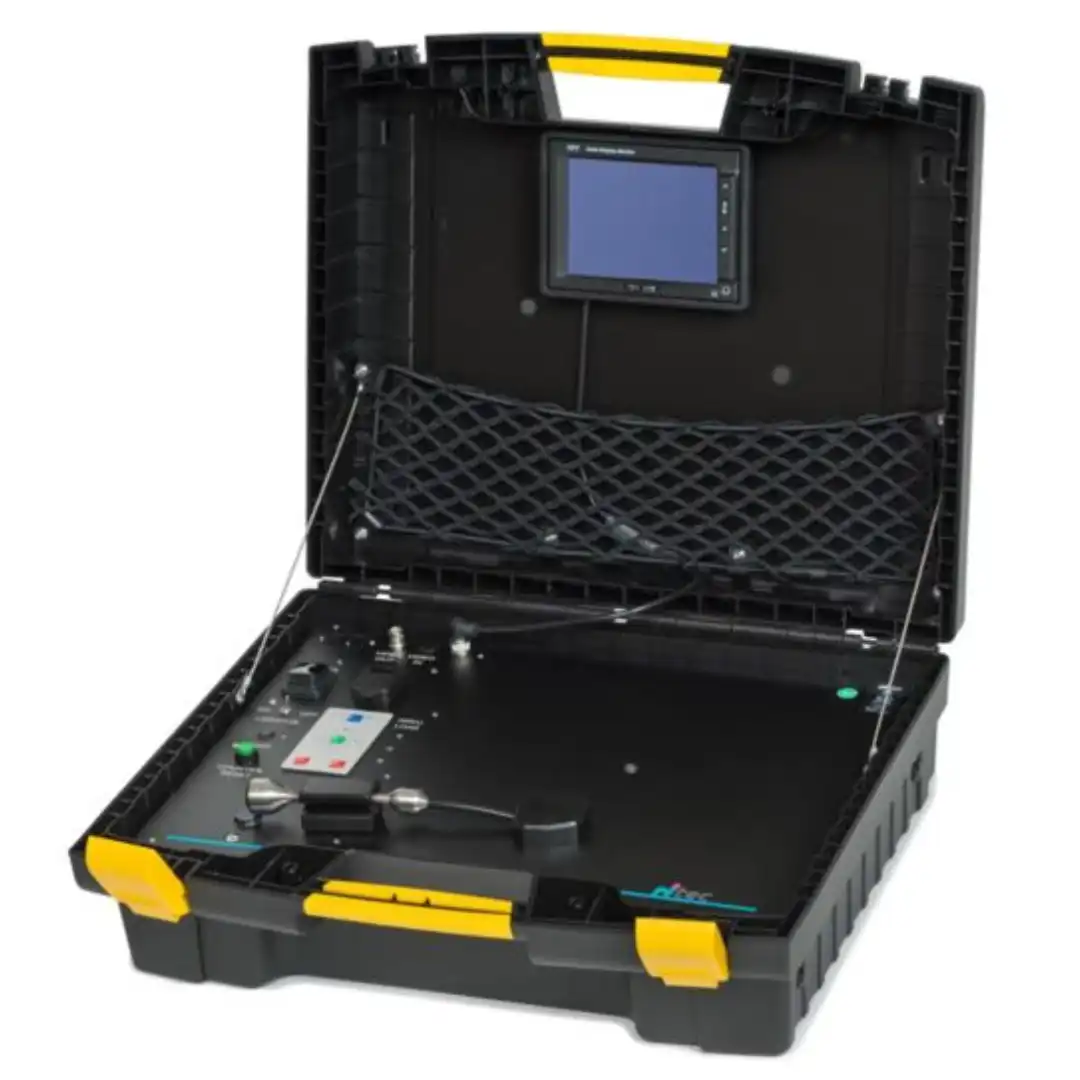

RI 25 VB SLC Push Camera in Case

Conveniently stowed in its case, the RI 25 VB SLC with vertical image (VB) is the ideal tool for quick inspections in larger pipe diameters, e.g. in industrial sector, sanitary facilities, ventilation or cable shafts. The case camera is conveniently and easily kept at hand wherever you are.

Category: Brand:
Enquire Now
Save or Print Page

More Information

Max. length of cable : 25 m
DN 30 – DN 150

Descrip­tion

  • Axial camera ø 25 mm
  • 87° bendable from DN 50
  • High-resolution colour camera module with electrical shutter and correctly positioned image (VB)
  • Wide angle lens
  • Automatic aperture control
  • High-performance LED light
  • Protective glass combination made of sapphire and special plastics
  • Fixed focus
  • 25 m push cable ø 6.5 mm in rotable reel basket
  • TFT-monitor 5.6″
  • Meter counter displayed in the monitor
  • Battery with integral charger and charging level display
  • Sturdy hard-shell case
  • Video output BNC
  • Operation 100V AC to 240V AC or with integrated battery (operating time approx. 4 hrs.)
  • SD card storage, video and image memory

Acces­sory (Optional)

  • Guide ball
  • Guide brush
  • Extension for 25 m push cable
  • Locating Transmitter, Frequency 512 kHz
  • Locating Transmitter, Frequency 33 kHz
  • Text generator
