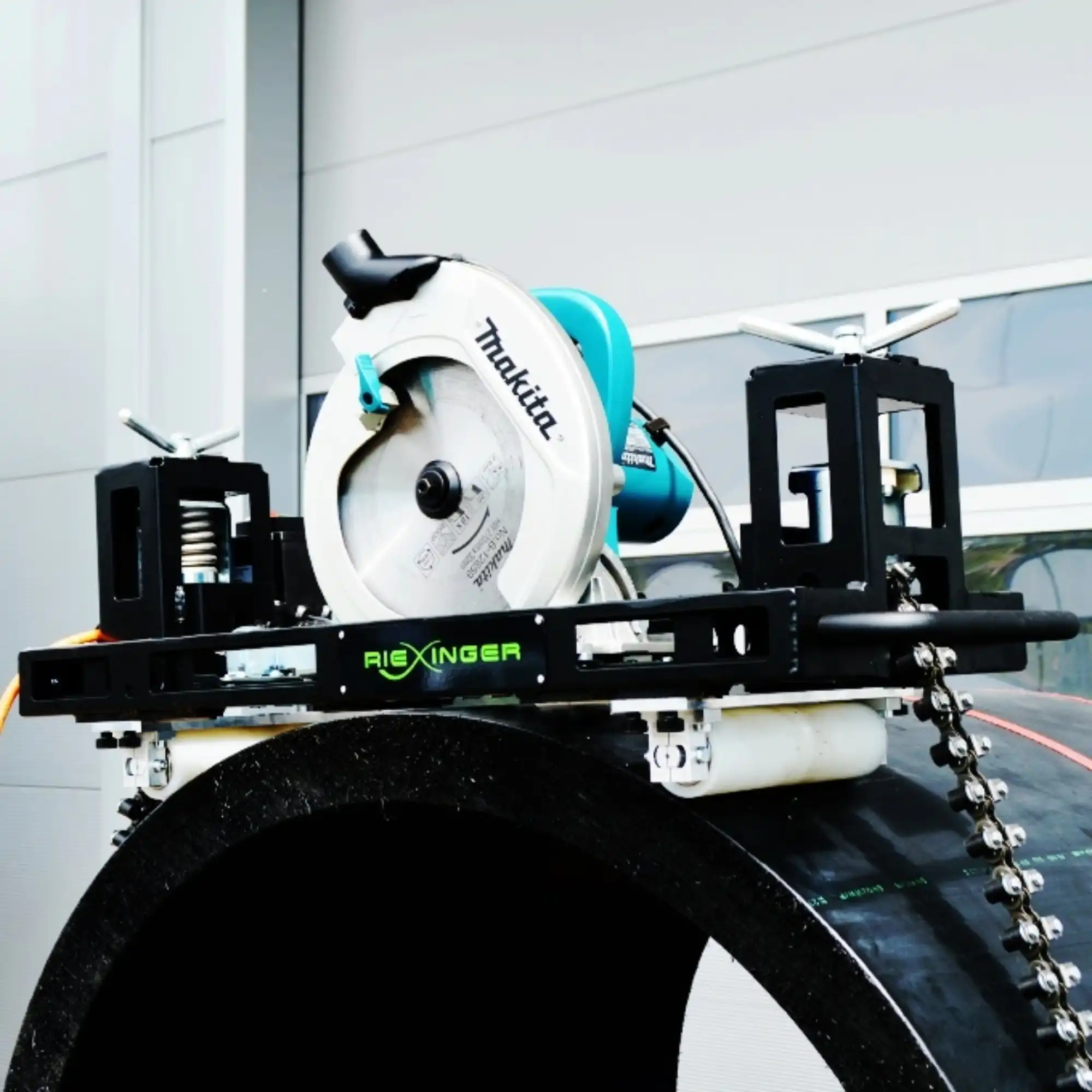

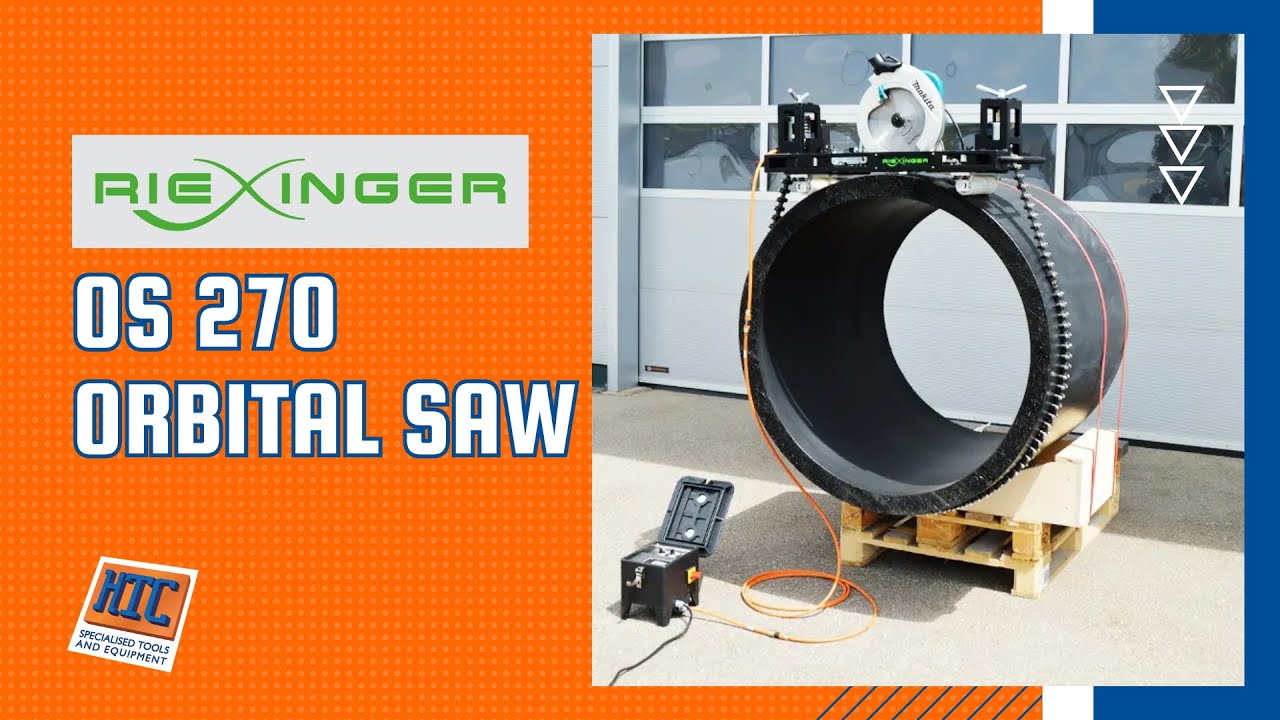

Riexinger OS 270 Orbital Saw

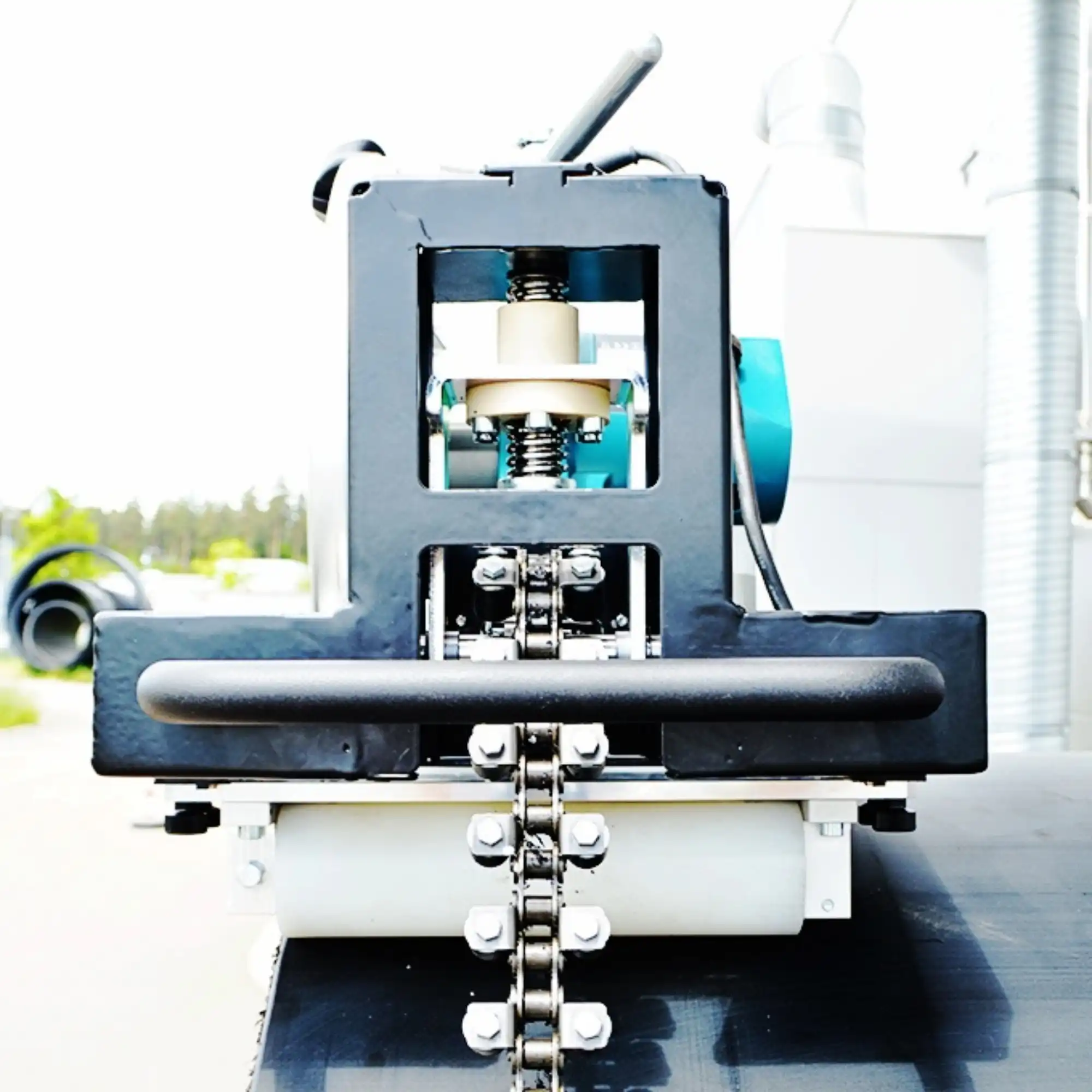

Powerful. Versatile. Easy to operate with infinitely variable electric feed and thanks to the variable chain clamping system, even thin-walled pipes, such as GRP pipes, are not deformed either when clamping the machine or when sawing.

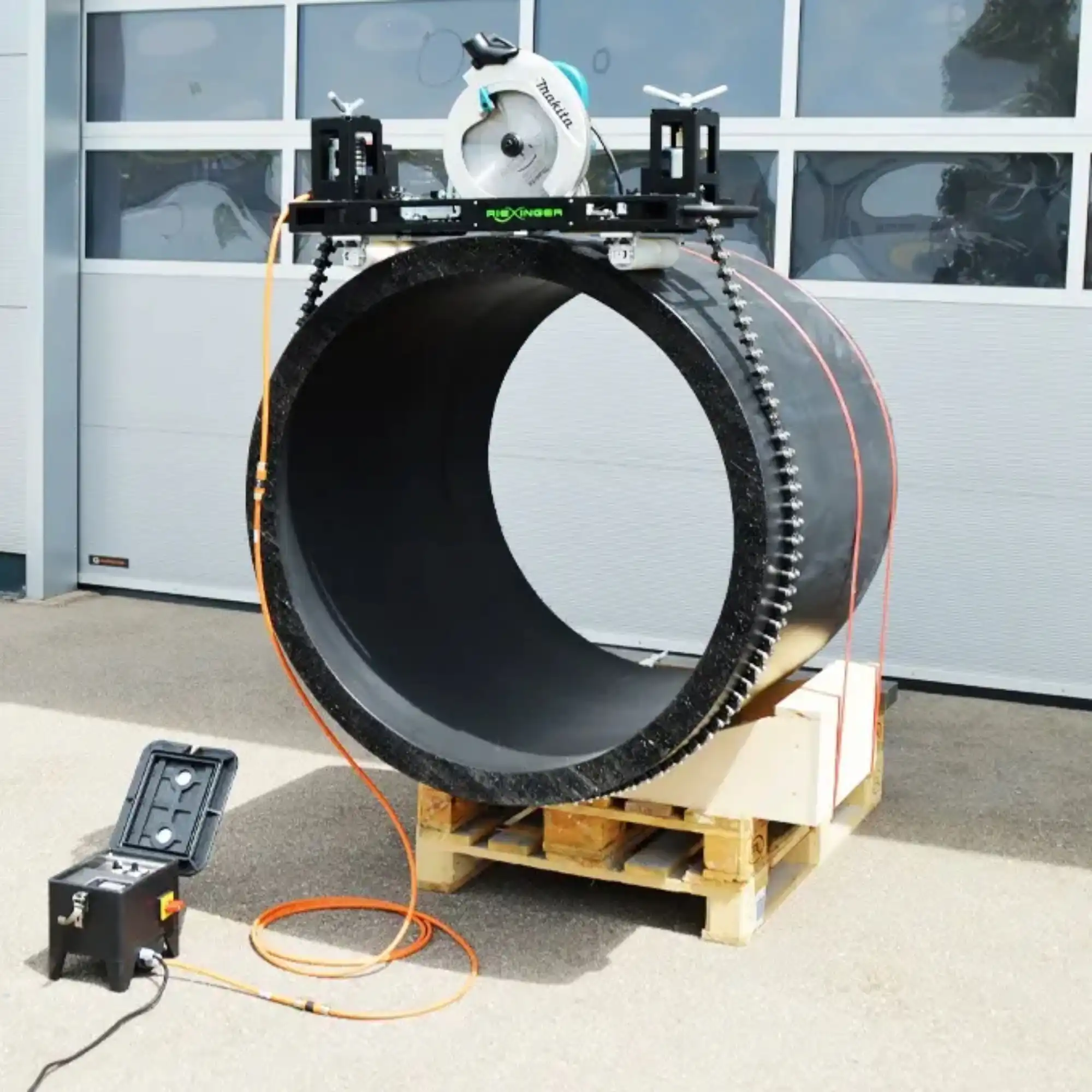

The orbital saw OS 270 by RIEXINGER is the variable, mobile solution for straight cutting of plastic pipes with a diameter of 630 mm to 1,200 mm.
More Information
All benefits at a glance
- Precise saw cuts in any location.
- Easy and quick to mount on the pipe

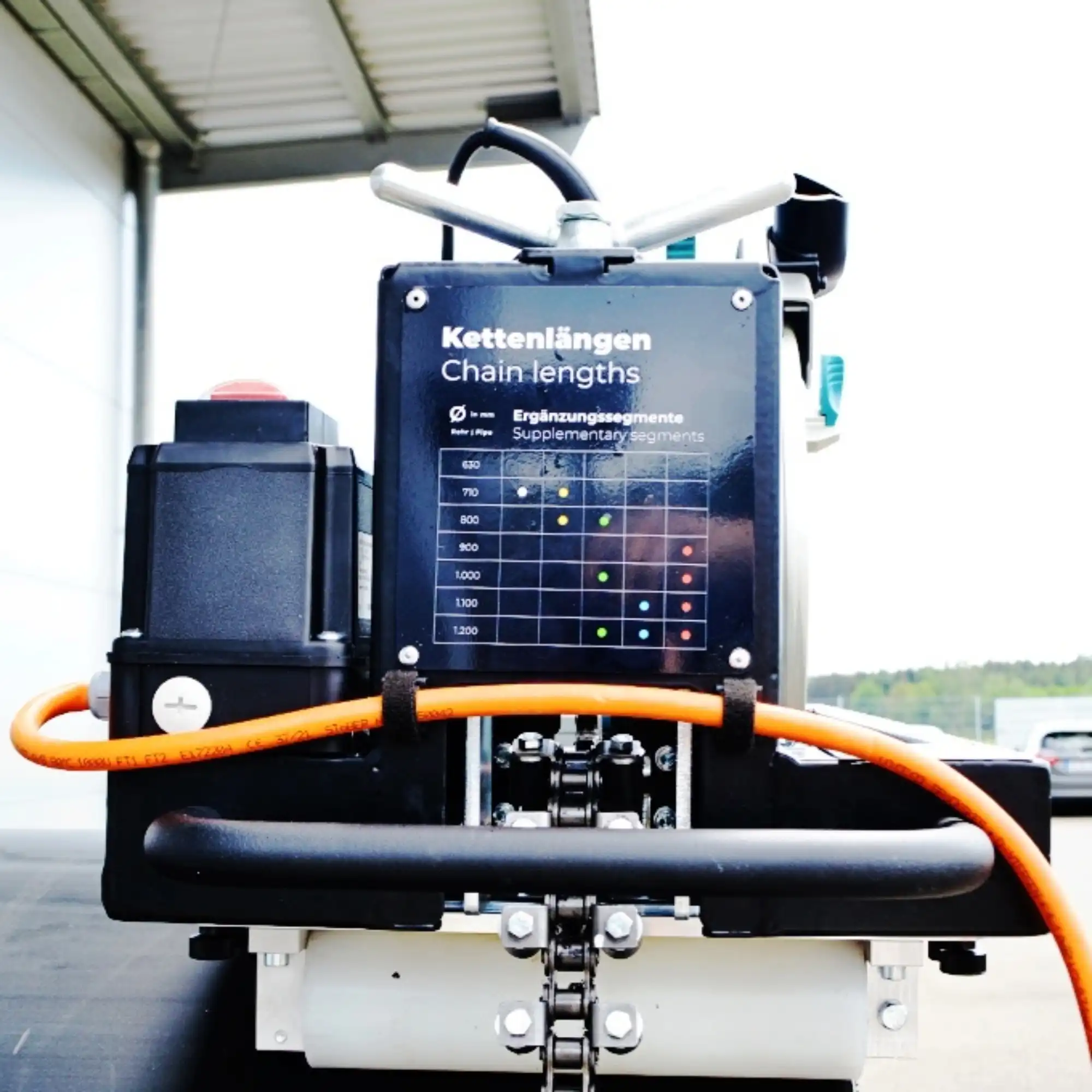

- Variable chain lengths thanks to quick and easy click system with magnetic bolts
- Suitable for use in the workshop and outside on the construction site
| Dimensions and weight | OS 270 |
|---|---|
| Installation dimension (L x W x H in mm) | 940 x 370 x 420 |
| Weight – Sawing unit (kg) | 30 |

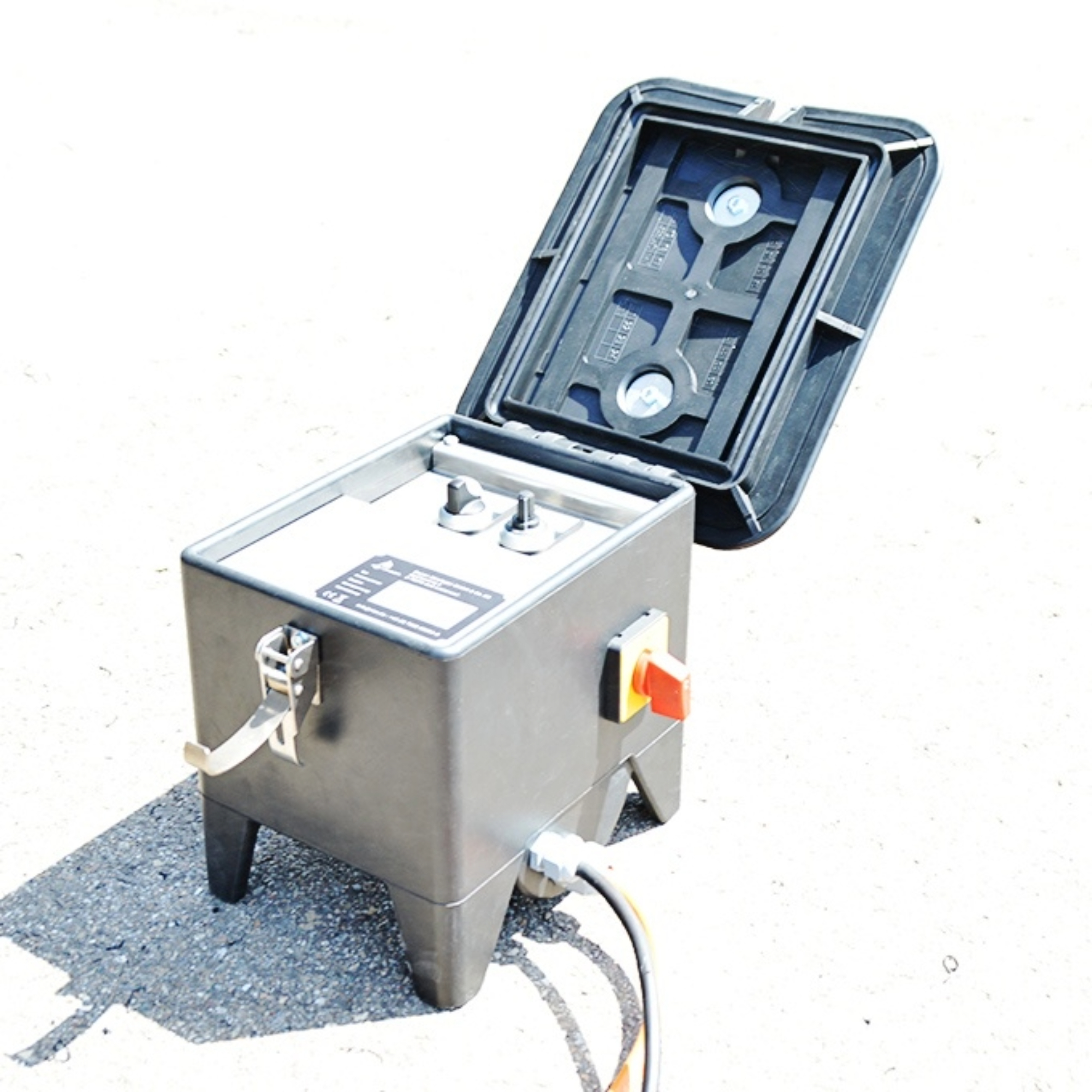

| Weight – Control box (kg) | 6 |
| Cutting data | OS 270 |
|---|---|
| Material type | PVC, PP, PE, GFK etc. |
| Material shape | Pipe, round |
| Cutting range min. (mm) | 630 |
| Cutting range max. (mm) | 1,200* |
| Cutting depth max. (mm) | 70 |
| Performance characteristics | OS 270 |
|---|---|
| Total connected load(kW) | 2.0 |
| Mains voltage(V) according to 60204 |
230 |
| Control voltage(V-DC) according to EN 60204 |
24 |
| Mains frequency (Hz) | 50 |
| Fuse (A) | 16 |
| Connection type | Earthing contact plug according to CEE 7/4 |

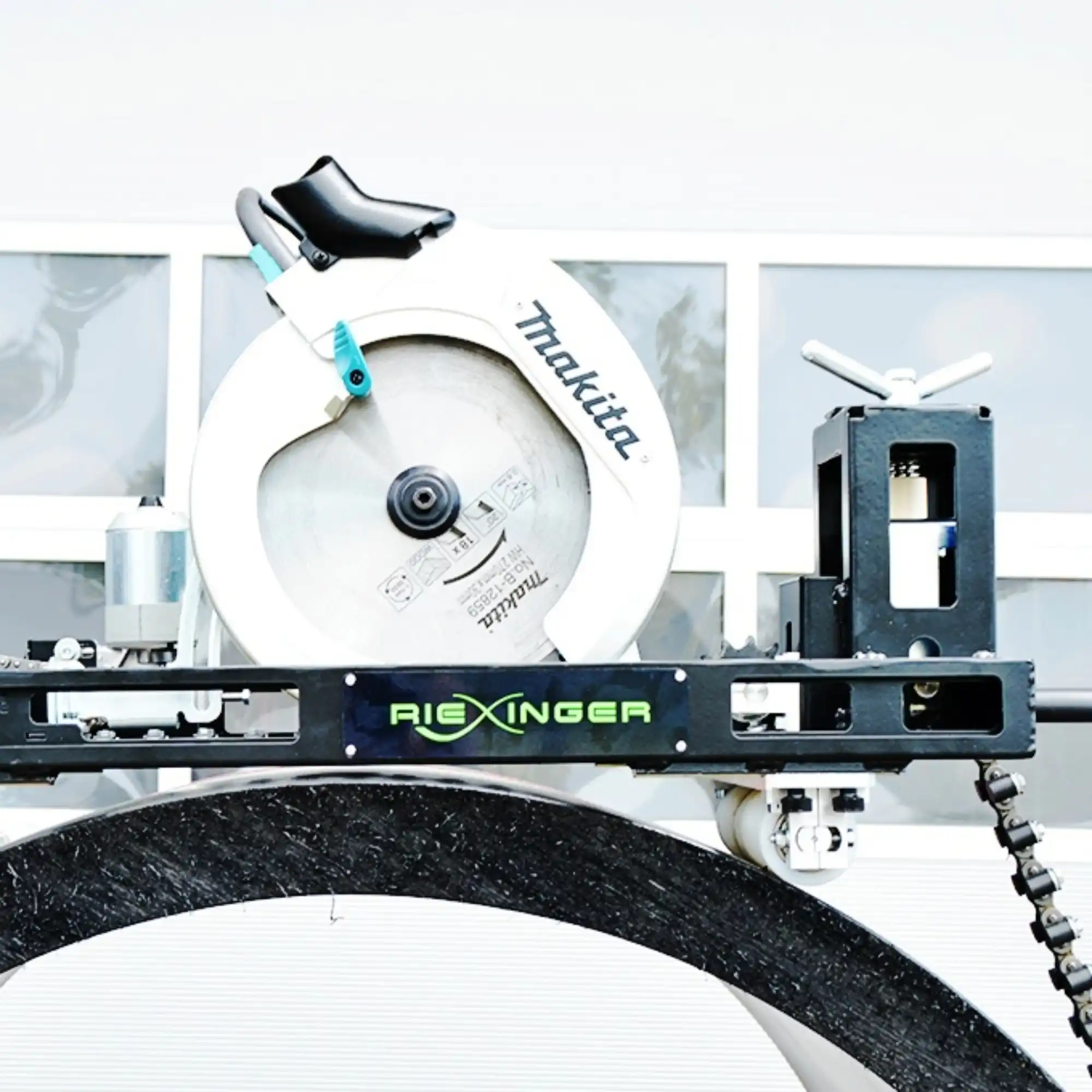

| Saw blade diameter max. (mm) | 270 |
| Saw blade drive (kW) | 2.0 |
| Saw feed | elektric |
| Material clamping | manual |
| Lacquer finish (RAL) | 9011 (silk matt) |
