Sinker Drills

Stanley SK sinker drill range

The SK47 and SK58 line of hydraulic sinker drills are designed for blast hole drilling, leak detection for gas utilities, and dowel hole drilling. Sinker drills use either air or water flushing (model dependent) to clear holes of debris. All models feature a feathering trigger for easy starts and are adjustable from 0 to 300 rpm. The SK47 is capable of drilling of holes 50mm in diameter and 3m deep. The SK58 is capable of drilling up to 76mm hole diameters up to 6m deep.

Category: Brand:

Additional Information

More Information

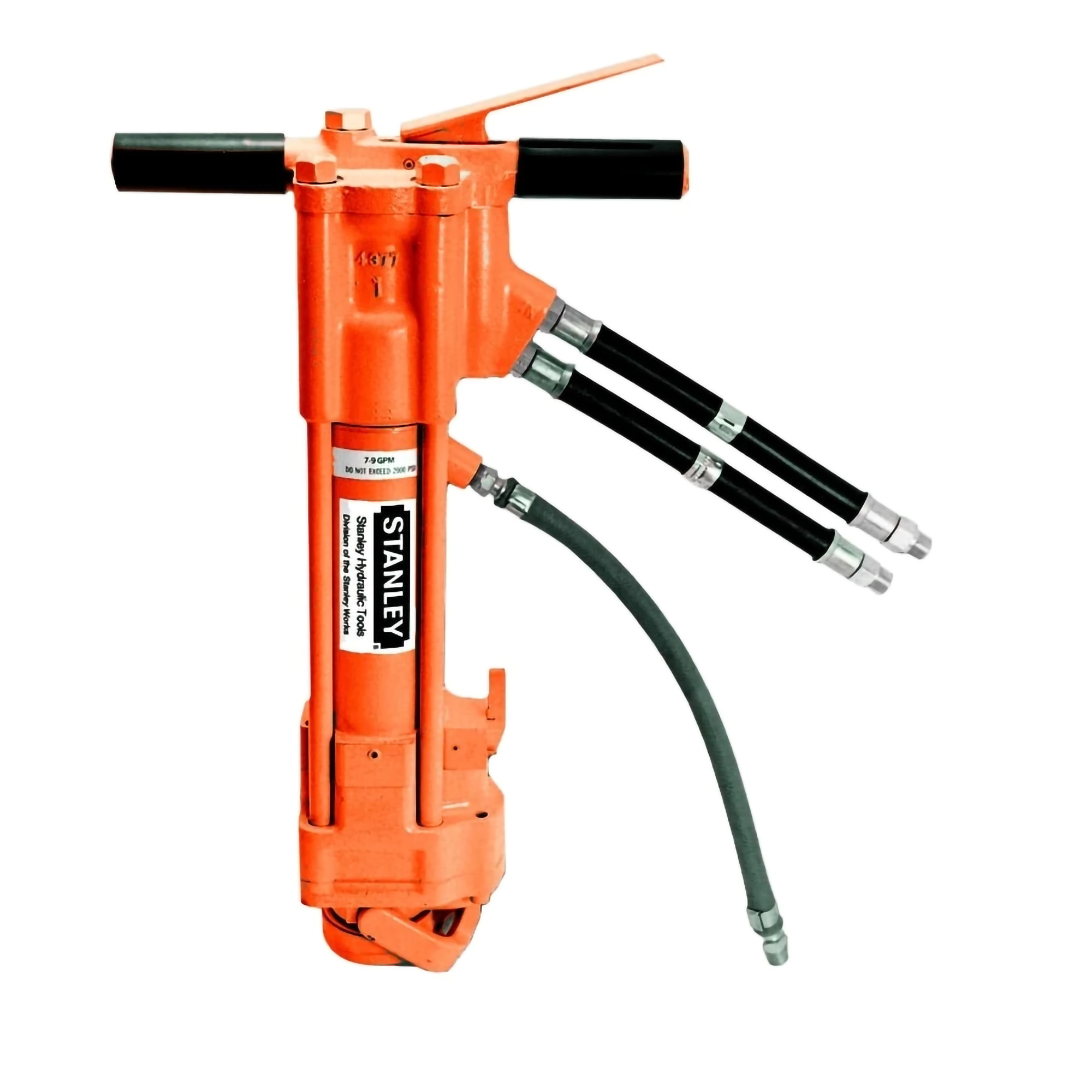

SK47 specifications

Application: Blast hole drilling, leak detection for gas utilities, dowel drilling
Capacity: 7/8 x 4-1/4 in Hex Shank Drill Steel
Flow range: 26-34 lpm (7-9 gpm)
Working pressure: 105-140 bar (1500-2000 psi)
Length x Width: 580 x 350 mm (23 x 14 in)
Weight: 24 kg (52 lbs)
Connections: Whip hose with 3/8 NPT flush face quick connect couplers included

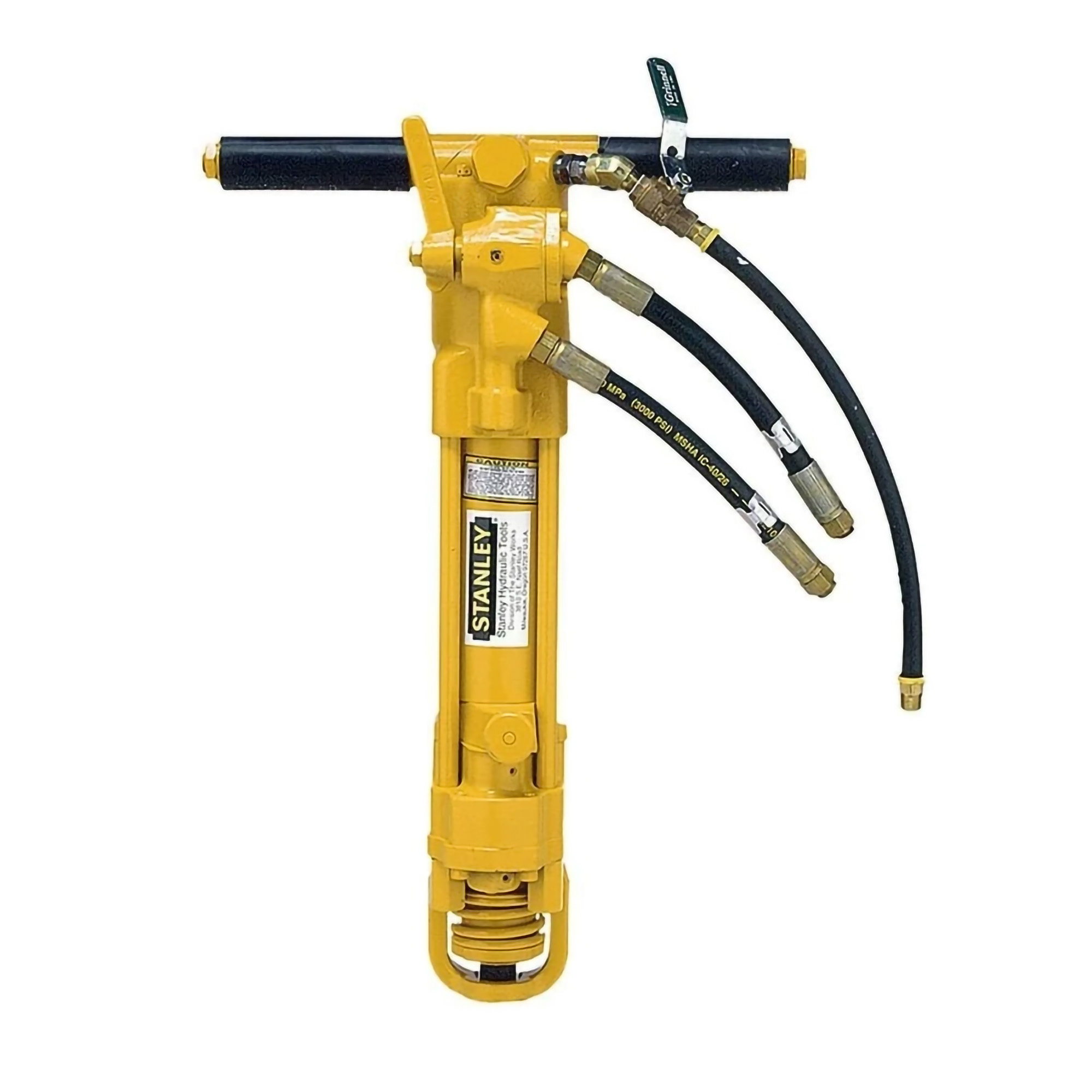

SK58 specifications

Application: Heavy duty utilities construction, blast hole drilling, leak detection for gas utilities and dowel drilling
Capacity: 7/8 x 4-1/4 in or 1 x 4-1/4 in Hex Steels
Flow range: 26-34 lpm (7-9 gpm)
Working pressure: 105-140 bar (1500-2000 psi)
Length x Width: 580 x 350 mm (23 x 14 in)
Weight: 30 kg (67 lbs)
Connections: Whip hose with 3/8 NPT flush face quick connect couplers included

Make: Stanley

Made in USA

Note: Requires a hydraulic pump and twin hose set to operate.
