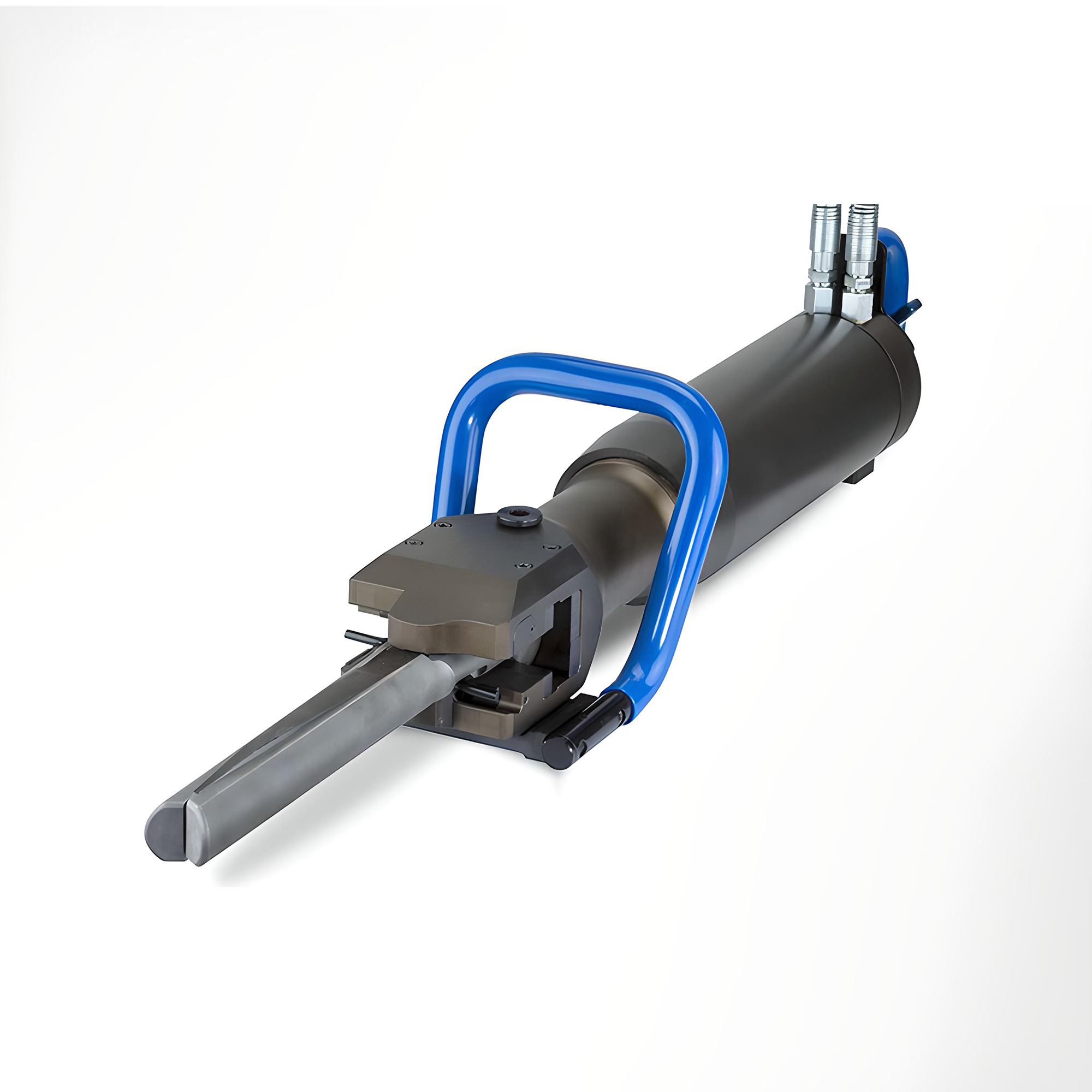

Tehma SP400-SW Rock splitter
Handheld hydraulic concrete rock splitter for controlled demolitions.
The SP400 TEHMA portable Handheld hydraulic concrete rock splitter demolishes quickly and accurately both rocks and large-thickness concrete structures (pillars, plinths, retaining walls, foundations and slabs).
The extreme power allows to demolish without generating dangerous percussions and vibrations that are usually the cause of structural damages and discomfort to the surrounding environment.

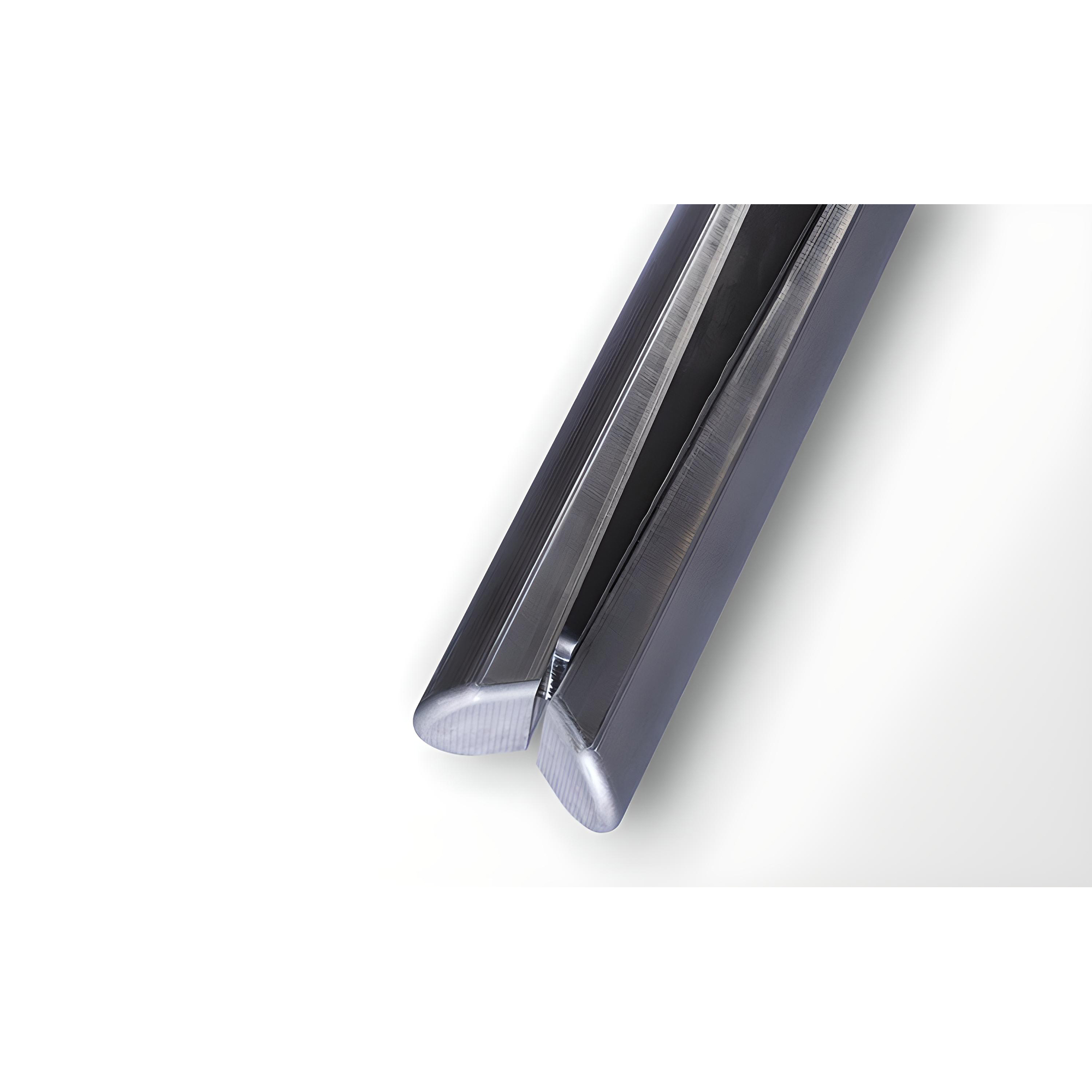

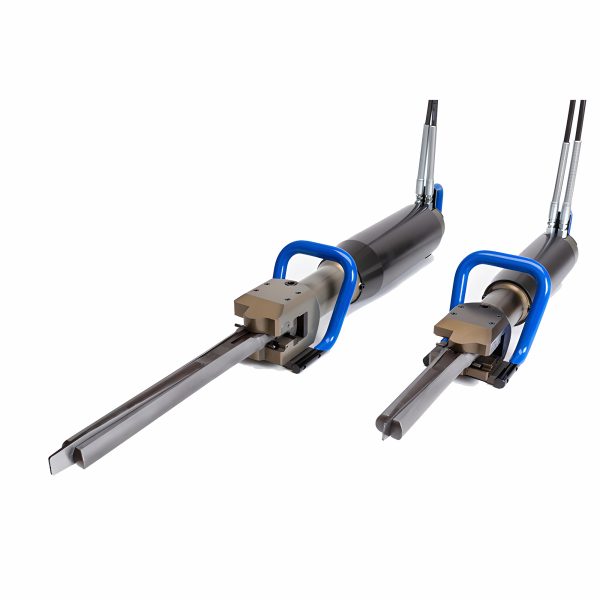

Progressive interchangeable wedges ensure maximum demolition capacity.
More Information
USES
Demolition of large-thickness concrete structures (such as foundations, floor slabs, stairways, plinths, pillars, bridge decks, bridge abutments, retaining walls).
Demolition of large rocks resulting from excavations and trenches, mines enlargements, tunneling or resulting from previous processes.
Wherever it is important to intervene quickly and cleanly without generating dust (Hospitals, data centers, production departments of companies).
For any demolition in respect of noise level during the whole day (Condos, offices, schools).
Demolitions of structures particularly vulnerable to vibrations and percussions (historical buildings, luxury apartments, structures that can fall down).
Wherever for reason of space or transportability it is impossible using bigger and heavier machineries (buildings upper floors, aerial platforms, in confined spaces such as basements).
Interventions in presence of water and underwater demolitions.

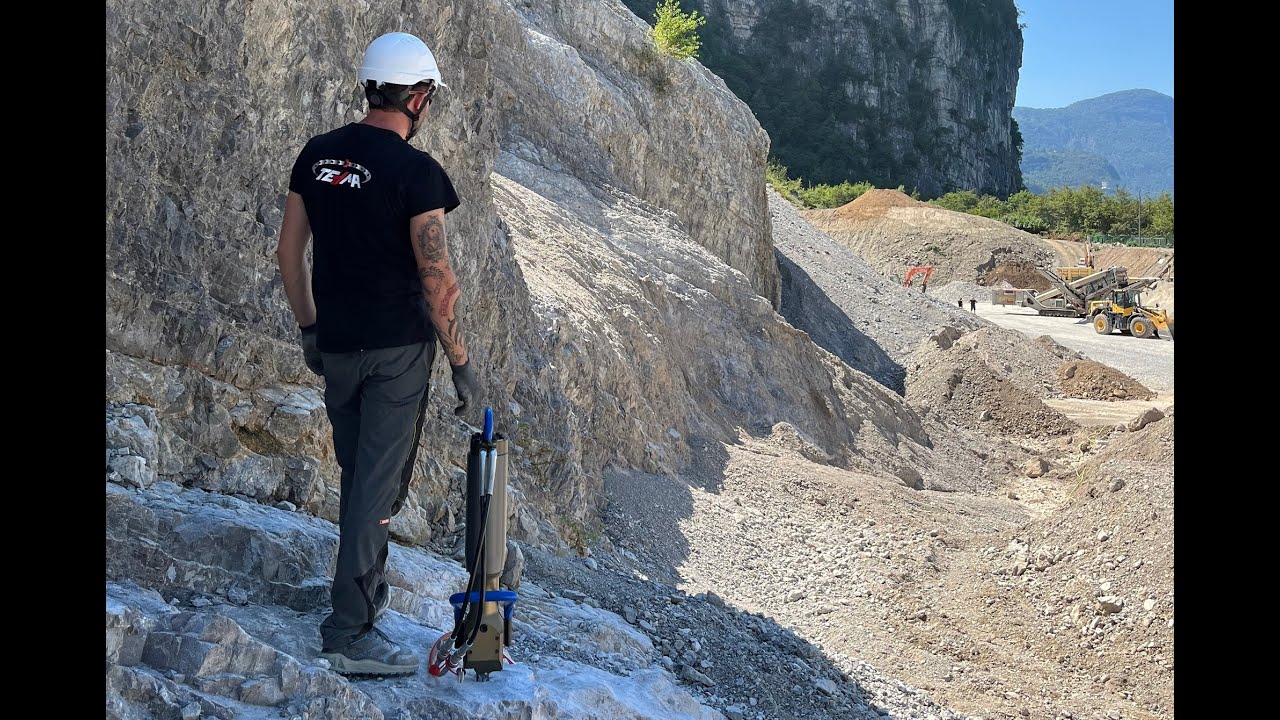

In quarries for the production of natural stone blocks production without resorting to blasting, ensuring more safety and less material waste.
U.S.A.R. applications (Urban Search and Rescue) where it is necessary to remove large stones or rubble caused by earthquakes, floods and explosions due to gas leaks.
6080 (kN)
SPLITTING FORCE
35-36 (mm)
REQUIRED DRILL HOLE DIAMETER
440 (mm)
MINIMAL DRILL HOLE DEPTH
10 (mm)
SPLITTING DISTANCE
23 (Kg)
TOTAL WEIGHT
600 (bar)
PRESSURE
1032 x 191 x 195 (mm)
DIMENSIONS – L x W x H
