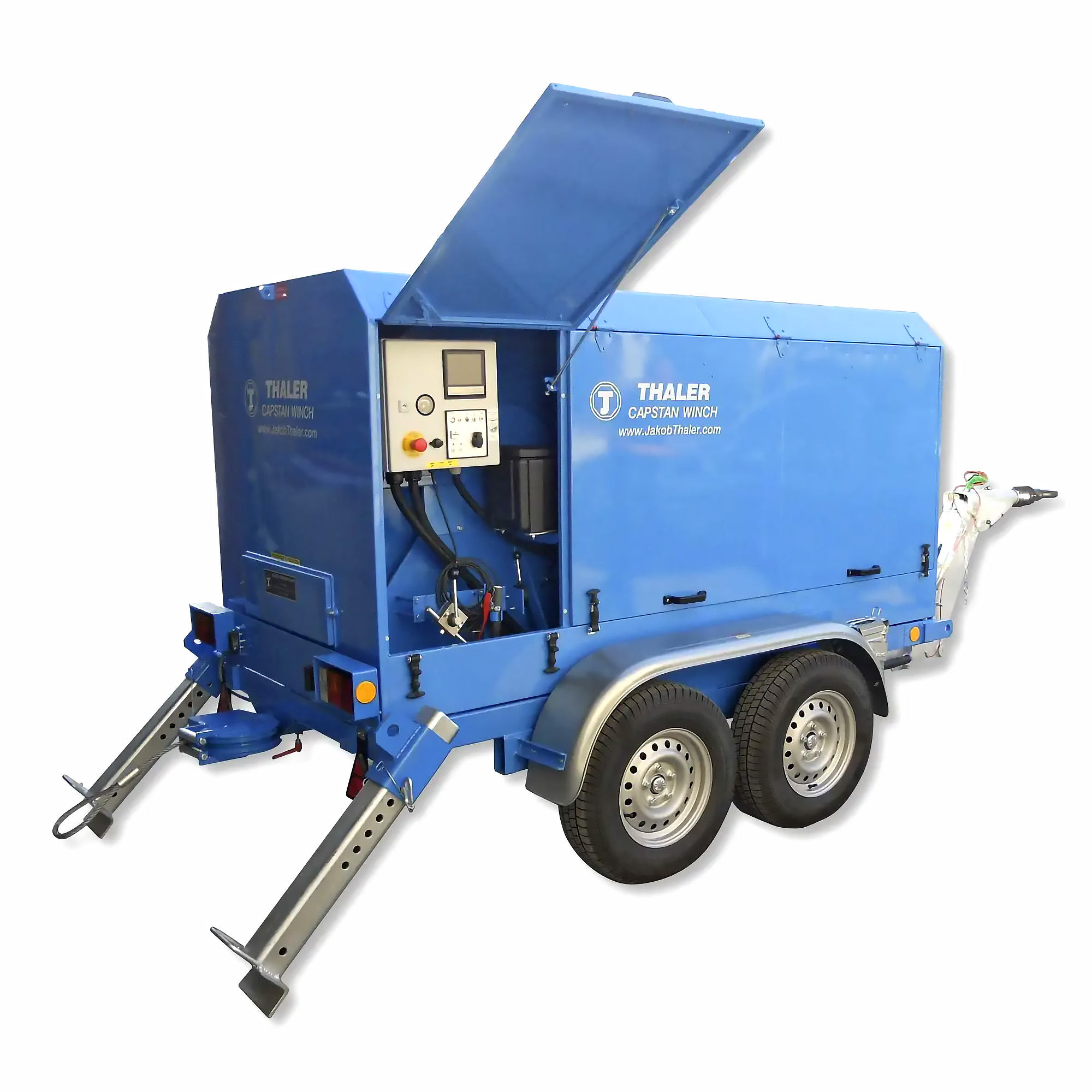

Thaler 6000 Series Trailer Winches
Thaler Cable Capstan winches are high quality products and represent the latest modern technical standard in the field of cable pulling winches.
The Series 6000 has models capable of pulling 5000kg-12000kg.
Made by Thaler in Germany.
More Information
Standard equipment:
- Double capstan system, both capstan heads are driven
- No chains between hydraulic engine and capstan system
- Hydrostatic drive
- Petrol or diesel engine
- Drum capacity for bigger rope lengths:
- KE-SP 6050, with 5.000 kg pulling force and an max. rope length up to 2000 m, Dia. = 12,0 mm
- KE-SP 6070, with 7.000 kg pulling force and an max. rope length up to 1500 m, Dia. = 14,0 mm
- KE-SP 60100, with 10.000 kg pulling force and an max. rope length up to 1000 m, Dia. = 16,0 mm
- KE-SP 60120, with 12.000 kg pulling force and an max. rope length up to 1000 m, Dia. = 16,0 mm
- Automatic rope guidance to the drum
- Pulling force control by electronic measuring system with USB port and stick – SYSTEM TM 3000
- Tandem axle chassis with overrunning brake, height adjustable drawbar with spindle support
- Metal hood
- Painting: RAL 5015 (blue)
Optional equipment:
- Other measuring systems like dynamometer
- Petrol or electric engines
- Printer for the electronic measuring system TM 3000 (additional to USB port)
- Single axle chassis
- Lockable light metal hood
- Remote control by cable or radio transmission
- Winch on basic frame for mounting on trucks
- Biodegradable hydraulic oil upon request
- Loading equipment with central crane hook
- Other colours upon request
